Section 18.1

LRM-58

Change (change in red):

SystemVerilog adds many enhancements for representing design hierarchy:

— Packages containing declarations such as data, types, classes, tasks and functions

— Separate compilation support

— A compilation-unit scope visible only within a compilation unit A global declaration space, visible to all modules at all levels of hierarchy

— Removal of the $root global declaration space from SystemVerilog 3.1

— Nested module declarations, to aid in representing self-contained models and libraries

Section 18.2

Delete existing 18.2 and replace with following.

Section 18.2 (New)

LRM-58 LRM-65 LRM-77 LRM-99

Add (change in red):

18.2 Packages

SystemVerilog packages provide an additional mechanism for sharing parameters, data, type, task, function, sequence, and property declarations amongst multiple SystemVerilog modules, interfaces and programs. Packages are explicitly named scopes appearing at the outermost level of the source text (at the same level as top-level modules and primitives). Types, variables, tasks, functions, sequences, and properties may be declared within a package. Such declarations may be referenced within modules, macromodules, interfaces, programs, and other packages by either import or fully resolved name.

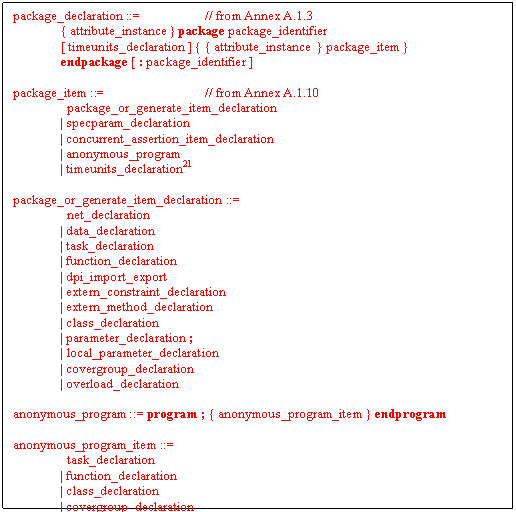

Syntax 18-1--Package syntax (excerpt from Annex A)

The package declaration creates a scope that contains declarations intended to be shared among one or more compilation units, modules, macromodules, interfaces, or programs. Items within packages are generally type definitions, tasks, and functions. Items within packages cannot have hierarchical references. It is also possible to populate packages with parameters, variables and nets. This may be useful for global items that aren't conveniently passed down through the hierarchy. Variable declaration assignments within the package shall occur before any initial, or always, always_comb, always_latch or always_ff blocks are started, in the same way as variables declared in a compilation unit or module.

The following is an example of a package:

package ComplexPkg;

typedef struct {

float i, r;

} Complex;

function Complex add(Complex a, b);

add.r = a.r + b.r;

add.i = a.i + b.i;

endfunction

function Complex mul(Complex a, b);

mul.r = (a.r * b.r) + (a.i * b.i);

mul.i = (a.r * b.i) + (a.i * b.r);

endfunction

endpackage : ComplexPkg

18.2.1 Referencing data in packages

Packages must exist in order for the items they define to be recognized by the scopes in which they are imported.

One way to use declarations made in a package is to reference them using the scope resolution operator "::".

ComplexPkg::Complex cout = ComplexPkg::mul(a, b);

An alternate method for utilizing package declarations is via the import statement.

Syntax 18-2--Import syntax (excerpt from Annex A)

The import statement provides direct visibility of identifiers within packages. It allows identifiers declared within packages to be visible within the current scope without a package name qualifier. Hierarchical references to imported identifiers are allowed as if they were defined in the importing scope. Two forms of the import statement are provided: explicit import, and wildcard import. Explicit import allows control over precisely which symbols are imported:

import ComplexPkg::Complex;

import ComplexPkg::add;

An explicit import is treated like a local declaration. An explicit import shall be illegal if the imported identifier is declared in the same scope or explicitly imported from another package. Importing an identifier from the same package multiple times is allowed.

A wildcard import allows all identifiers declared within a package to be imported provided the identifier is not otherwise defined in the importing scope:

import ComplexPkg::*;

A wildcard import makes each identifier within the package a candidate for import. Each such identifier is imported only when it is neither declared nor explicitly imported into the scope. Similarly, a wildcard import of an identifier is overridden by a subsequent declaration of the same identifier in the same scope. If the same identifier is wildcard imported into a scope from two different packages, the identifier shall be undefined within that scope and result in an error if the identifier is used.

18.2.2 Search order Rules

Table 18.1 describes the search order rules for the declarations imported from a package. For the purposes of the discussion below, consider the following package declarations:

package p;

typedef enum { FALSE, TRUE } BOOL;

const BOOL c = FALSE;

endpackage

package q;

const int c = 0;

endpackage

Example	Description	Scope containing a local declaration of c	Scope not containing a local declaration of c	Scope contains a declaration of c imported using import q::c	Scope contains a declaration of c imported as import q::*
u = p::c; y = p::TRUE;	A qualified package identifier is visible in any scope (without the need for an import clause).	OK. Direct reference to c refers to the locally declared c. p::c refers to the c in package p.	OK Direct reference to c is illegal since it is undefined. p::c refers to the c in package p.	OK. Direct reference to c refers to the c imported from q. p::c refers to the c in package p.	OK. Direct reference to c refers to the c imported from q. p::c refers to the c in package p.
import p::*; . . . y = FALSE;	All declarations inside package p become potentially directly visible in the importing scope: c BOOL FALSE TRUE	OK. Direct reference to c refers to the locally declared c. Direct reference to other identifiers (e.g., FALSE) refer to those implicitly imported from package p.	OK. Direct reference to c refers to the c imported from package p.	OK. Direct reference to c refers to the c imported from package q.	OK / ERROR c is undefined in the importing scope. Thus, a direct reference to c is illegal and results in an error. The import clause is otherwise allowed.
import p::c; . . . if( ! c ) ...	The imported identifiers become directly visible in the importing scope: c	ERROR. It shall be illegal to import an identifier defined in the importing scope.	OK. Direct reference to c refers to the c imported from package p.	ERROR. It shall be illegal to import an identifier defined in the importing scope.	OK / ERROR The import of p::c makes any prior reference to c illegal. Otherwise, direct reference to c refers to the c imported from package p.

Table 18.1 Scoping Rules for Package Importation

When using a wildcard import, a reference to an undefined identifier that is declared within the package causes that identifier to be imported into the local scope. However, an error results if the same identifier is later declared or explicitly imported. This is shown in the following example:

module foo;

import q::*;

wire a=c; // This statement forces the import of q::c;

import p::c; // The conflict with q::c and p::c creates an error.

endmodule

Section 18.3 (New)

LRM-58

Add (change in red):

18.3 Compilation Unit Support

SystemVerilog supports separate compilation using compiled units. The following terms and definitions are provided:

— compilation unit: a collection of one or more SystemVerilog source files compiled together

— compilation-unit scope: a scope that is local to the compilation unit. It contains all declarations that lie outside of any other scope

— $unit: the name used to explicitly access the identifiers in the compilation-unit scope

The exact mechanism for defining which files constitute a compilation unit is tool specific. Tools shall provide a mechanism to specify the files that make up a compilation unit. Two extreme cases are:

1. All files make a single compilation unit (in which case the declarations in the compilation-unit scope are accessible anywhere within the design)

2. Each file is a separate compilation unit (in which case the declarations in each compilation-unit scope are accessible only within its corresponding file)

The contents of files included using one or more ‘include directives become part of the compilation unit of the file they are included within.

If there is a declaration that is incomplete at the end of a file then the compilation unit including that file will extend through each successive file until there are no incomplete declarations at the end of the group of files.

The default is that each file is a separate compilation unit.

A tool must also provide a mechanism (such as a command line switch) that specifies that all of the files compiled together are a single compilation unit.

There are other possible mappings of files to compilation units and the mechanism for defining them are tool specific and may not be portable.

The compilation-unit scope can contain any item that can be defined within a package. These items are in the compilation-unit scope name space.

The following items are visible in all compilation units: modules, macromodules, primitives, programs, interfaces, and packages. Items defined in the compilation-unit scope cannot be accessed by name from outside the compilation unit. Access to the items in a compilation-unit scope can be accessed using the PLI, which must provide an iterator to traverse all the compilation units.

In Verilog, compiler directives once seen by a tool apply to all forthcoming source text. This behavior shall be supported within a separately compiled unit; however, compiler directives from one separately compiled unit shall not affect other compilation units. This may result in a difference of behavior between compiling the units separately or as a single compilation unit containing the entire source.

When an identifier is referenced within a scope, SystemVerilog follows the Verilog name search rules:

— First, the nested scope is searched (1364-2001 12.6) (including nested module declarations)

— Next, the compilation-unit scope is searched

— Finally, the instance hierarchy is searched (1364-2001 12.5))

$unit is the name of the scope that encompasses a compilation unit. Its purpose is to allow the unambiguous reference to declarations at the outermost level of a compilation unit (i.e., those in the compilation-unit scope). This is done via the same scope resolution operator used to access package items.

For example:

bit b;

task foo;

int b;

b = 5 + $unit::b;        // $unit::b is the one outside.

endtask

The compilation-unit scope allows users to easily share declarations (e.g., types) across the unit of compilation, but without having to declare a package from which the declarations are subsequently imported. Thus, the compilation-unit scope is similar to an implicitly defined anonymous package. Because it has no name, the compilation-unit scope cannot be used with an import statement, and the identifiers declared within the scope are not accessible via hierarchical references. Within a particular compilation unit, however, the special name $unit can be used to explicitly access the declarations of its compilation-unit scope.

Section 18.4 (New)

LRM-58

Add (change in red):

18.4 Top-level instance

The name $root is added to unambiguously refer to a top level instance, or to an instance path starting from the root of the instantiation tree. $root is the root of the instantiation tree.

For example:

$root.A.B       // item B within top instance A

$root.A.B.C     // item C within instance B within instance A

$root allows explicit access to the top of the instantiation tree. This is useful to disambiguate a local path (which takes precedence) from the rooted path. In Verilog, a hierarchical path is ambiguous. For example, A.B.C can mean the local A.B.C or the top-level A.B.C (assuming there is an instance A that contains an instance B at both the top level and in the current module). Verilog addresses that ambiguity by giving priority to the local scope, thereby preventing access to the top level path. $root allows explicit access to the top level in those cases in which the name of the top level module is insufficient to uniquely identify the path.

Section 18.3

LRM-58

Change (change in red):

18.3 Module declarations

SystemVerilog adds the capability to nest module declarations, and to instantiate modules in the $root toplevel space, outside of other modules.

module m1(...); ... endmodule

module m2(...); ... endmodule

module m3(...);

m1 i1(...); // instantiates the local m1 declared below

m2 i4(...); // instantiates m2 - no local declaration

module m1(...); ... endmodule // nested module declaration,

// m1 module name is in m3’s name space

endmodule

m1 i2(...); // module instance in the $root space,

// instantiates the module m1 that is not nested in another module

Section 18.4

LRM-100

Change (change in red):

module dff_nested(input d, ck, pr, clr, output q, nq);

wire q1, nq1, nq2;

module ff1;

nand g1b (nq1, d, clr, q1);

nand g1a (q1, ck, nq2, nq1);

endmodule

ff1 i1();

module ff2;

wire q2; // This wire can be encapsulated in ff2

nand g2b (nq2, ck, clr, q2);

nand g2a (q2, nq1, pr, nq2);

endmodule

ff2 i2();

module ff3;

nand g3a (q, nq2, clr, nq);

nand g3b (nq, q1, pr, q);

endmodule

ff3 i3();

endmodule

LRM-100

Change (change in red):

module part1(....);

module and2(input a, b,; input b; output z);

....

endmodule

module or2(input a, b,; input b; output z);

....

endmodule

Section 18.7

LRM-58

Change (change in red):

There shall be at most one time unit and one time precision for any module, program, package or interface definition, or in $root any compilation-unit scope. This shall define a time scope. If specified, the timeunit and timeprecision declarations shall precede any other items in the current time scope. The timeunit and timeprecision declarations can be repeated as later items, but must match the previous declaration within the current time scope.

If a timeunit is not specified in the module, program, package or interface definition, then the time unit is shall be determined using the following rules of precedence:

1) If the module or interface definition is nested, then the time unit is shall be inherited from the enclosing module or interface (programs and packages cannot be nested).

2) Else, if a ‘timescale directive has been previously specified (within the compilation unit), then the time unit is shall be set to the units of the last ‘timescale directive.

3) Else, if the compilation-unit scope specifies $root top level has a time unit (outside all other declarations), then the time unit is shall be set to the time units of the compilation unit root module.

4) Else, the default time unit is shall be used.

The time unit of the compilation-unit scope may only be set $root shall only be determined by a timeunit declaration, not a ‘timescale directive. If it is not specified then the default time unit shall be used.

If a timeprecision is not specified in the current time scope, then the time precision is shall be determined following the same precedence as with time units.

Section 18.8

LRM-39

Change Syntax 18-3 (change in red):

ordered_parameter_assignment ::= expression | data_type param_expression

named_parameter_assignment ::= . parameter_identifier ( [ param_expression ] )

. parameter_identifier ( [expression ] )

| . parameter_identifier ( data_type )

name_of_instance ::= module_instance_identifier { range unpacked_dimension }

param_expression ::= mintypmax_expression | data_type // from Annex A.8.3

LRM-93

Change Syntax 18-3 (change in red):

list_of_port_connections²⁰ ::=

ordered_port_connection { , ordered_port_connection }

| dot_named_port_connection { , dot_named_port_connection }

| { named_port_connection , } dot_star_port_connection { , named_port_connection }

ordered_port_connection ::= { attribute_instance } [ expression ]

named_port_connection ::= { attribute_instance } . port_identifier[( [ expression ] )]

| { attribute_instance } .*

dot_named_port_connection ::=

{ attribute_instance } .port_identifier

| named_port_connection

dot_star_port_connection ::= { attribute_instance } .*

Section 18.9.1

LRM-111

Change (change in red):

— A ref port shall be connected to an equivalent variable data type. References to the port variable shall be treated as hierarchal references to the variable it is connected to in its instantiation. This kind of port can not be left unconnected. See section 5.8.1 Equivalent Types.

Section 18.10

LRM-58

Change (change in red):

18.10 Name spaces

SystemVerilog has eight five name spaces for identifiers, two are global (definitions name space and package name space), two are global to the compilation unit (compilation unit name space and text macro name space) and four are local. Verilog’s global definitions name space collapses onto the module name space and exists as the top-level scope, $root. Module, primitive, package, program, and interface identifiers are local to the module name space where there are defined. The eight five name spaces are described as follows:

1) The definitions name space unifies all the non-nested module, macromodule, primitive, program, and interface identifiers defined outside of all other declarations. Once a name is used to define a module, macromodule, primitive, program, or interface within one compilation unit the name shall not be used again (in any compilation unit) to declare another non-nested module, macromodule, primitive, program, or interface outside of all other declarations. This is compatible with the definitions name space as defined in IEEE 1364-2001.

2) The package name space unifies all the package identifiers defined among all compilation units. Once a name is used to define a package within one compilation unit the name shall not be used again to declare another package within any compilation unit.

3) The compilation-unit scope name space exists outside the module, macromodule, interface, package, program, and primitive constructs. It unifies the definitions of the functions, tasks, parameters, named events, net declarations, variable declarations and user defined types within the compilation-unit scope.

4) The text macro name space is global within the compilation unit. Since text macro names are introduced and used with a leading ‘ character, they remain unambiguous with any other name space. The text macro names are defined in the linear order of appearance in the set of input files that make up the compilation unit description of the design unit. Subsequent definitions of the same name override the previous definitions for the balance of the input files.

5) The module name space is introduced by the module, macromodule, interface, package, program, and primitive constructs. It unifies the definition of modules, macromodules, interfaces, programs, functions, tasks, named blocks, instance names, parameters, named events, net type of declarations, variable type of declarations, and user defined types within the enclosing construct.

6) The block name space is introduced by named or unnamed blocks, the specify, function, and task constructs. It unifies the definitions of the named blocks, functions, tasks, parameters, named events, variable type of declaration and user defined types within the enclosing construct.

7) The port name space is introduced by the module, macromodule, interface, primitive, and program, function, and task constructs. It provides a means of structurally defining connections between two objects that are in two different name spaces. The connection can be unidirectional (either input or output) or bidirectional (inout). The port name space overlaps the module and the block name spaces. Essentially, the port name space specifies the type of connection between names in different name spaces. The port type of declarations includes input, output, and inout. A port name introduced in the port name space can be reintroduced in the module name space by declaring a variable or a net with the same name as the port name.

8) The attribute name space attribute name space is enclosed by the (* and *) constructs attached to a language element (see Section 2.8). An attribute name can be defined and used only in the attribute name space. Any other type of name cannot be defined in this name space.

Section 18.11

LRM-58

Change (change in red):

Hierarchical names are also called nested identifiers. They consist of instance names separated by periods, where an instance name can be an array element. The instance name $root refers to the top of the instantiated design and is used to unambiguously gain access to the top of the design.

$root.mymodule.u1 // absolute name

u1.struct1.field1 // u1 must be visible locally or above, including globally

adder1[5].sum

Nested identifiers can be read (in expressions), written (in assignments or task/function calls) or triggered off (in event expressions). They can also be used as type, task or function names.
