Surround Sound CODEC

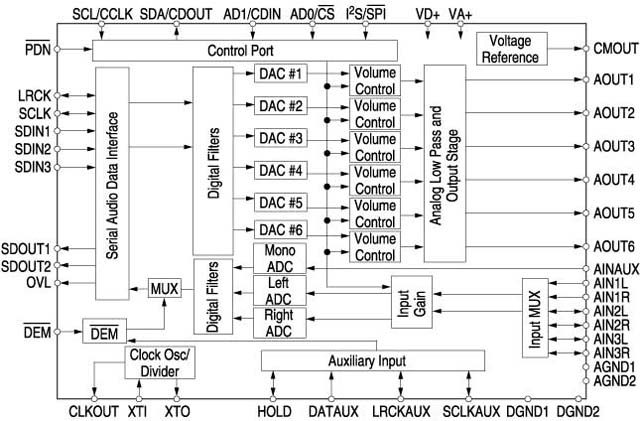

The CS4227 is a single-chip CODEC providing three A/D converters and six D/A converters using Delta-Sigma conversion techniques. This 5V device also contains volume controls that are independently selectable for each of the six D/A channels. Applications include Dolby Pro-Logic, THX, and Dolby Digital AC-3 home theater systems, DSP-based car audio systems, and other multi-channel applications.

Product Features
  • 3 20-bit A/D converters
  • 6 20-bit D/A converters
  • 108 dB D/A converter signal-to-noise ratio (EIAJ)
  • Programmable input gain and output attenuation
  • On-chip anti-aliasing and output smoothing filters
  • De-emphasis for 32 kHz, 44.1 kHz, and 48 kHz
  • Package: 44-pin TQFP

Documents
CS4227 Product
Data Sheet

SEP '99, DS281PP2 : 731 Kb
