MPEG-2 Audio/Video CODEC
|
![](/images/blank.gif) |
|
![](../../../..//images/blank.gif) |
The CS92288 is a single chip, real-time MPEG-2 audio/video encoder/decoder (CODEC) with an integrated system multiplexor/demultiplexor and on-screen display (OSD) feature. The CODEC encodes and decodes both ISO/IEC 13818 Main Level @ Main Profile (ML@MP), Simple Profile @ Main Level (SP@ML), Main Profile @ Low Level (MP@LL), and ISO/IEC 11172 (MPEG-1) video bitstreams, as well as MPEG audio, and Dolby Digital (AC-3). In encode mode, the CS92288 produces MPEG-compliant audio/video elementary, program, and transport bit streams for broadcast and set-top boxes. For additional flexibility, it accepts ITU-R BT.656 (CCIR-656) or ITU-R BT.601 (CCIR-601) video formats and the Linear PCM audio format. In decode mode, the CS92288 accepts MPEG transport, program, and audio/video elementary bit streams. It outputs CCIR-656 or 601 CCIR-601 video formats and the Linear PCM audio format. The OSD feature supports both text and 2-bit, 4-bit, and 8-bit graphics enabling user menus, broadcast information, or status updates.
|

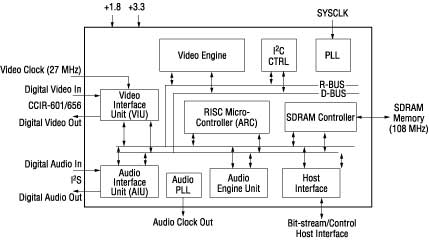

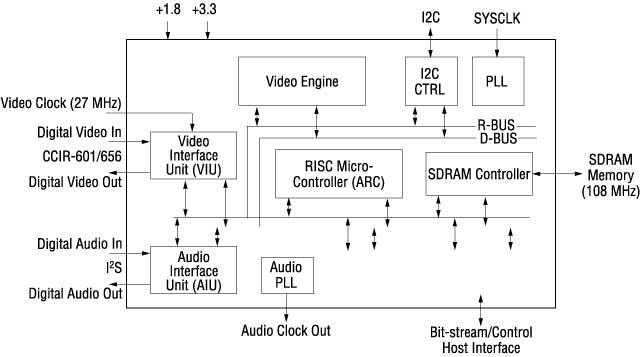

![](../../../..//images/blank.gif) |
Product Features
|
![](../../../..//images/blank.gif) |
- Single chip, real-time, MPEG-2 Audio/Video CODEC with programmable system MUX/DeMUX supporting OSD, VCD, SVCD, and DVD encoding and decoding at multiple resolutions and scan rates
- Supports real-time MPEG-1, MPEG-2, MP@ML, SP@ML, and MP@LL
- Support for constant/one-pass variable bit rate
- IPB-pictures, CBR, or VBR to 15 Mbps
- I-pictures only to 30 Mbps
- Supports transport, program, and elementary streams
- Support for real time, 2-channel, encoding/decoding of digital audio of either Dolby Digital or MPEG audio (Layer I, II, and III - MP3)
- 8-bit OSD support (2-b text, 2-b to 8-b graphics)
- 8 MB memory for full D1 (720) NTSC/PAL pictures
- Generic 8-bit glueless interface to external devices
- Integrated programmable video pre and post processors
- 3.3 and 1.8V power supplies, 5V I/O tolerance
- 1.00 W at 108 MHz average power consumption
- Package: 272-pin BGA (0.18µ CMOS)
|
