E1 Line Interface

The CS61535A combines the complete analog transmit and receive line interface for T1 or E1 applications in a low power, 28-pin device operating from a 5V supply.

The device features a transmitter jitter attenuator making it ideal for use in asynchronous multiplexor systems with gapped transmit clocks. The CS61535A provides a matched, constant impedance output stage to ensure signal quality on mismatched, poorly terminated lines.

The device uses a digital Delay-Locked-Loop (DLL) clock and data recovery circuit which is continuously calibrated from a crystal reference to provide excellent stability and jitter tolerance.

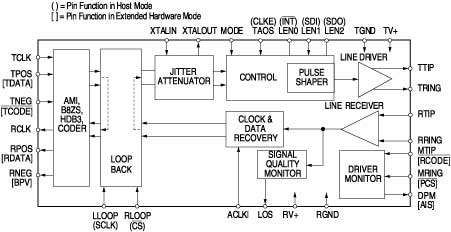

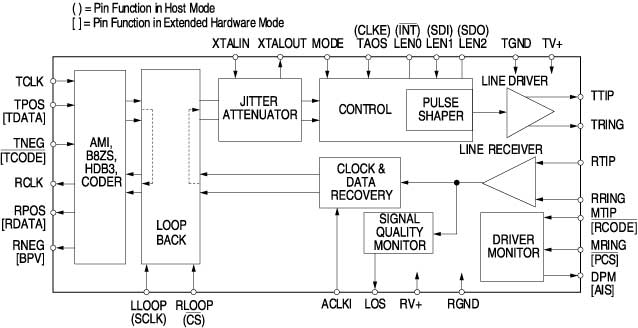

( ) = Pin Function in Host Mode

( ) = Pin Function in Extended Hardware Mode

Product Features
  • Provides analog PCM line interface for T1/ E1 applications
  • Provides line driver, and data/clock recovery functions
  • Transmit side jitter attenuation starting at 6 Hz with > 300 UI of jitter tolerance
  • B8ZS/HDB3/AMI encoders/decoders
  • 14 dB of transmitter return loss
  • Compatible with SONET, M13, CCITT G.742, and other asynchronous muxes
  • Low power consumption (typically 175 mW)
  • Package: 28-pin PDIP, 28-pin PLCC
