96 kHz, Digital Audio Receiver
|
|
|
|

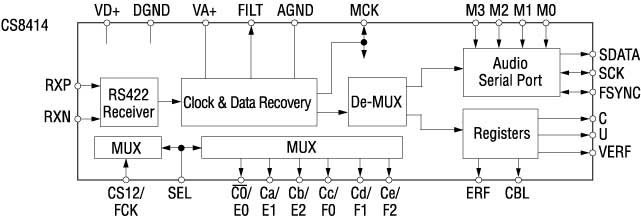

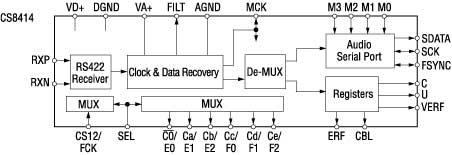

The CS8414 receives and decodes audio data up to 96 kHz according to the AES/EBU, IEC958, S/PDIF, and EIAJ CP340/1201 interface standards. The device receives data from a transmission line, recovers the clock and synchronization signals, and de-multiplexes the audio and digital data. Differential or single ended inputs can be decoded. The CS8414 de-multiplexes the channel, user, and validity data directly to serial output pins with dedicated output pins for the most important channel status bits.
|
|
Product Features
|
|
- Low jitter, on-chip clock recovery
- 256xFs output clock provided
- Supports: AES/EBU, IEC 958, S/PDIF, and EIAJ CP340/1201 professional and consumer formats
- Extensive error reporting
- Repeat last sample on error option
- On-chip RS422 line receiver
- Package: 28-pin SOIC
|
|
|
