96 kHz, Digital Audio, Interface Transmitter

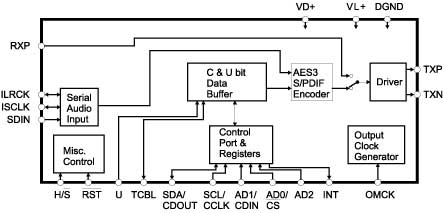

The CS8405A is a monolithic, CMOS device which encodes and transmits audio data according to the AES3, IEC60958, S/PDIF, or EIAJ CP1201 standards. The CS8405A accepts audio and digital data, which it then multiplexes, encodes, and drives onto a cable.

The audio data is input through a configurable, 3-wire input port. The Channel Status and User bit data are input through an SPI or two-wire micro-controller port and may be assembled in block sized buffers. For systems with no micro-controller, a standalone mode allows direct access to Channel Status and User bit data pins.

Target applications include A/V receivers, CD-R, DVD receivers, digital mixing consoles, effects processors, set-top boxes, computers, and automotive audio systems.

Product Features
  • Complete EIAJ CP1201, IEC-60958, AES3, S/PDIF, compatible transmitter
  • On-chip channel status and user bit buffer memories allowing block sized updates
  • Flexible 3-wire serial, digital audio input port
  • Up to 96 kHz frame rate
  • Micro-controller write access to Channel Status and User bit data
  • On-chip differential line driver
  • Generates CRC codes and parity bits
  • Standalone mode does not require a micro-controller
  • 5V digital supply (VD)
  • 3 to 5V digital interface (VL)
  • Package: 28-pin SOIC/TSSOP

Documents
CS8405A Product
Data Sheet

MAY '01, DS469PP3 : 744 Kb
CDB8405A/15A Ev
aluation Board Data Sheet

JAN '00, DS470DB1 : 717 Kb
