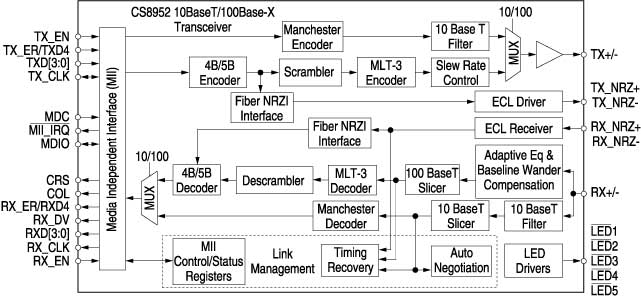

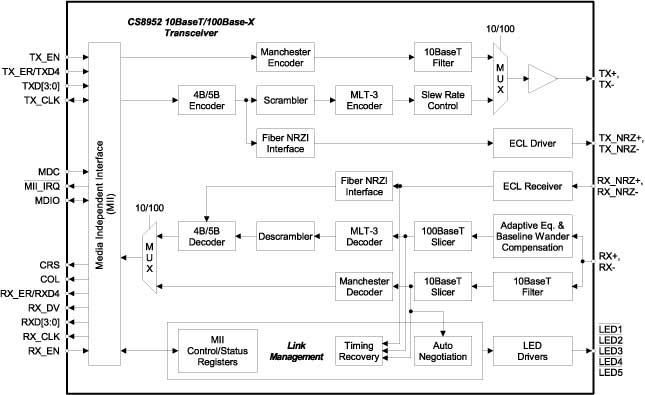

The CS8952 uses CMOS technology to deliver a high-performance, low-cost 100Base-X/10Base-T Physical Layer (PHY) line interface. It makes use of an adaptive equalizer optimized for noise and near end crosstalk (NEXT) immunity to extend receiver operation to cable lengths exceeding 160 meters. In addition, the transmit circuitry has been designed to provide extremely low transmit jitter (<400 ps) for improved link partner performance. Transmit driver common mode noise has been minimized to reduce EMI for simplified FCC certification.
The CS8952 incorporates a standard Media Independent Interface (MII) for easy connection to a variety of 10 and 100 Mbps Media Access Controllers (MACs). The CS8952 also includes a pseudo-ECL interface for use with 100Base-FX fiber interconnect modules
Product Features
Single-chip IEEE 802.3 physical interface IC for 100Base-X, 100Base-FX and 10Base-T
Adaptive equalizer provides extended length operation (>160 m) with superior noise immunity and NEXT margin
Extremely low transmit jitter (<400 ps)
Low common mode noise on TX driver for reduced EMI
Integrated RX and TX filters for 10Base-T
Compensation for back-to-back "Killer Packets"
Digital interfaces supported
MII for 100Base-X and 10Base-T
Repeater 5-bit code-group interface (100Base-X)
10Base-T serial interface Register set compatible with DP83840A
IEEE 802.3 Auto-Negotiation with Next Page support
