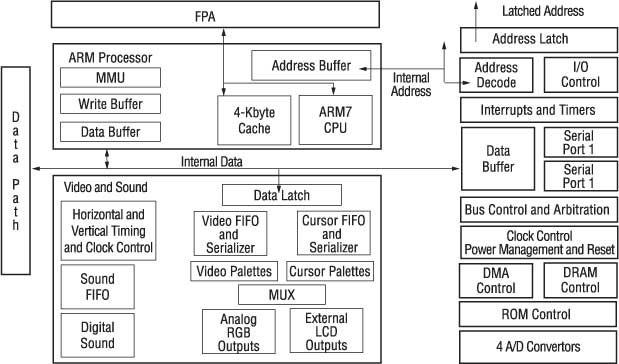

The PS7500FE is a massively integrated general-purpose system-on-chip designed for a wide range of control and communications applications. Based on a low-power, high-speed, ARM RISC CPU core, the PS7500FE integrates a powerful 50-MIP processor, hardware floating point unit that is ANSI/IEEE Std 754-1985 compliant, memory interfaces, and a full complement of system peripherals onto a single component. This integrated component greatly simplifies system design for complex applications such as network computers, screen phones, process control systems, and instrumentation control. In addition to the 32-bit processor with hardware floating point, the PS7500FE incorporates system cache, a MMU (memory management unit), high-resolution color CRT/LCD graphics control, a CD-quality audio controller, and interfaces for a keyboard/mouse/joystick. A wide variety of Cirrus Logic and industry-standard third-party peripheral functions can be attached through the PS7500FE's integrated ISA-style I/O bus. For example, the CS8900A Ethernet Engine can be easily attached for high-speed network communications. Mass storage subsystems, modems, and other communications subsystems can be easily added to designs through this standard bus architecture.
|
![](../../../..//images/blank.gif) |
- Massively integrated system-on-chip
- High-speed CPU with all major system peripherals
- Reduces external components and simplifies design
- 32-bit ARM710 micro-processor
- 4 Kbytes of unified cache
- MMU with 64-entry TLB (transition look-aside buffer)
- Single, double, and extended precision FPU
- EDO and Fast Page mode DRAM controller and ROM/FLASH memory control
- CRT/LCD controller
- Serial, CD-quality, 32-bit digital sound
- Two PS/2-style serial ports: keyboard and mouse
- Four analog comparators and support for analog joystick
- 16-bit, PC-style I/O bus with 8 general-purpose I/O lines
- Timer and counters
- Available in 56 and 64 MHz speed grades
- Evaluation kit with BOM, schematics, and design data
- Two-state power management
- Package: 240-pin MQFP
|
