Low Voltage, 24-Bit, 96 kHz, D/A Converter with Volume Control

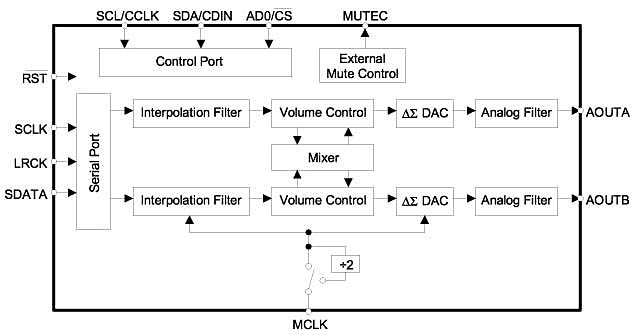

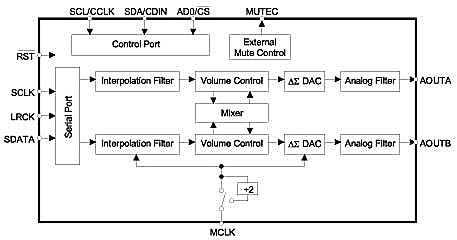

The CS43L41 is a complete, stereo, digital-to-analog system including digital interpolation, fourth-order Delta-Sigma digital-to-analog conversion, digital de-emphasis, volume control, channel mixing, and analog filtering. The advantages of this architecture include: ideal differential linearity, no distortion mechanisms due to resistor matching errors, no linearity drift over time and temperature, and a high tolerance to clock jitter.

The CS43L41 accepts data at audio sample rates from 2 kHz to 100 kHz, consumes very little power, and operates over a wide power supply range. These features are ideal for portable DVD, portable MP3, mini-disc, and mobile phones.

Product Features
  • Complete stereo D/A converter system: interpolation, D/A, output analog filtering
  • ATAPI mixing
  • 101 dB dynamic range
  • -89 dB THD+N
  • Low clock jitter sensitivity
  • 2.4 to 5V power supply
  • Filtered line level outputs
  • On-chip digital de-emphasis for 32, 44.1, and 48 kHz
  • Digital volume control with soft ramp
    • 94 dB attenuation
    • 1 dB step size
    • Zero crossing click-free transitions
  • 24 mW with 2.4V supply
  • Package: 16-pin TSSOP

Documents
CS43L41 Product
Data Sheet

SEP '99, DS473PP1 : 623 Kb
Errata: CS43L41 Rev C
FEB '00, ER473A1 : 142 Kb
