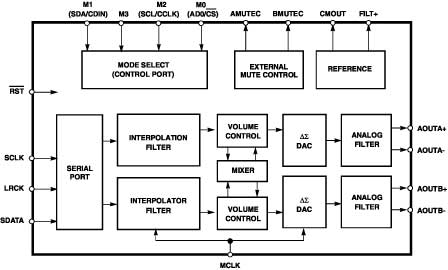

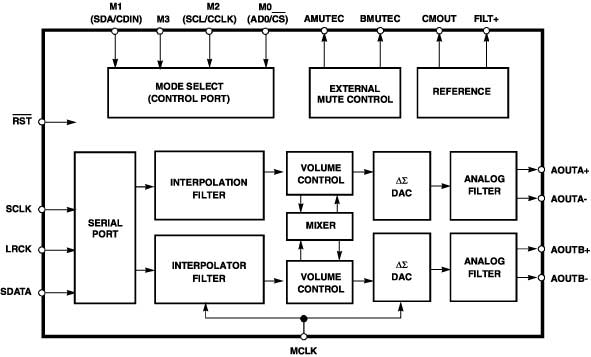

The CS4391 is a complete, stereo, digital-to-analog system including digital interpolation, fourth-order Delta-Sigma digital-to-analog conversion, digital de-emphasis, volume control, channel mixing, and analog filtering. The advantages of this architecture include: ideal differential linearity, no distortion mechanisms due to resistor matching errors, no linearity drift over time and temperature, and a high tolerance to clock jitter. The CS4391 accepts PCM data at sample rates from 2 kHz to 192 kHz and DSD audio data. It consumes very little power and operates over a wide power supply range. These features are ideal for DVD, A/V receivers, CD, and set-top box systems.
|
|
- Complete stereo D/A converter system: Interpolation, D/A, output analog filtering
- 108 dB dynamic range
- -94 dB THD+N
- Direct Stream digital mode
- Low, clock jitter sensitivity
- On-chip digital de-emphasis for 32, 44.1, and 48 kHz
- Volume control with soft ramp
- 119 dB attenuation
- 1 dB step size
- Zero crossing click-free transitions
- Direct interface with 5 to 1.8V logic
- 3 to 5V power supply
- 36 mW with 3V supply
- ATAPI mixing
- Package: 20-pin TSSOP/SOIC
|
