24-Bit, 48 kHz, Stereo D/A Converter
|
|
|
|

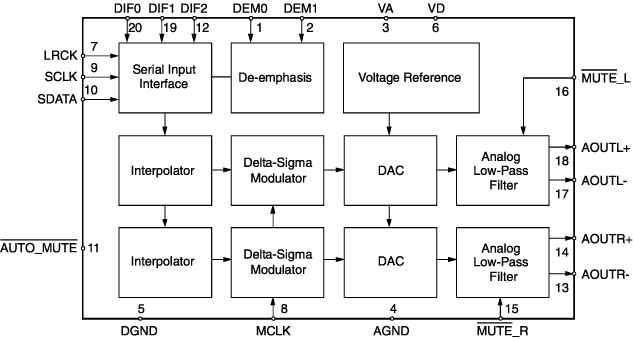

The CS4390 is a complete, stereo, digital-to-analog output system. In addition to the traditional D/A function, the CS4390 includes a digital interpolation filter followed by an 128X oversampled Delta-Sigma modulator. The modulator output controls the reference voltage input to an ultra-linear analog low-pass filter. This architecture allows for infinite adjustment of sample rate between 1 and 50 kHz while maintaining linear phase response by changing the master clock frequency. The CS4390 also includes an extremely flexible serial port utilizing mode select pins to support multiple interface formats. The master clock can be either 256, 384, or 512 times the input sample rate supporting various audio environments.
|
|
Product Features
|
|
- 24-bit conversion
- 115 dB signal-to-noise-ratio (EIAJ)
- Complete stereo D/A converter system
- 128X interpolation filter
- Delta-Sigma D/A converter
- Analog post filter
- 106 dB dynamic range
- Low, clock jitter sensitivity
- Filtered line-level outputs
- Linear phase filtering
- Zero phase error between channels
- Adjustable system sampling rates
- including 32 kHz, 44.1 kHz, and 48 kHz
- Digital de-emphasis for 32 kHz, 44.1 kHz, and 48 kHz
- Pin-compatible with the CS4329
- Package: 20-pin SSOP/PDIP
|
|
|
