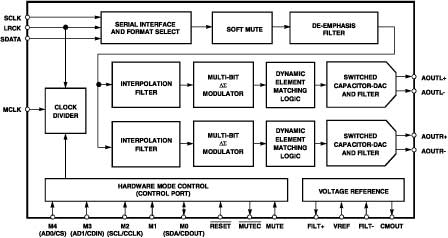

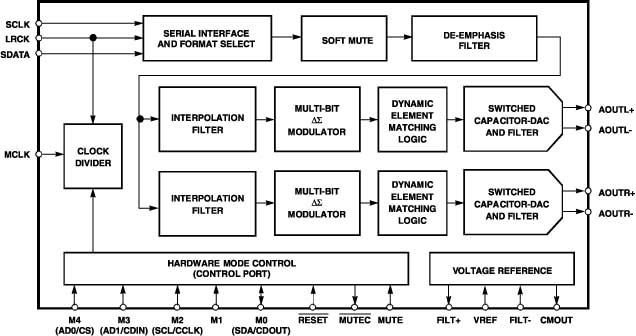

The CS4396 is a complete, high-performance 24-bit 48/96/192 kHz, stereo, digital-to-analog conversion system. The device includes a digital interpolation filter followed by an oversampled multi-bit Delta-Sigma modulator which drives Dynamic-Element-Matching (DEM) selection logic. The output from the DEM block controls the input to a multi-element switched capacitor DAC/low-pass filter, with fully-differential outputs.
This multi-bit architecture features significantly lower out-of-band noise and jitter sensitivity than traditional 1-bit designs and the advanced DEM guarantees low noise and distortion at all signal levels.
Product Features
24-bit conversion
Up to 192 kHz sample rates
120 dB dynamic range
-100 dB THD+N
2nd-order Dynamic-Element-Matching (DEM)
Low, clock jitter sensitivity
Digital de-emphasis for 32 kHz, 44.1 kHz, and 48 kHz
