Sealevel Digital I/O Applications Information Notebook

Application Note 1: Simple DC fan control with Relay I/O

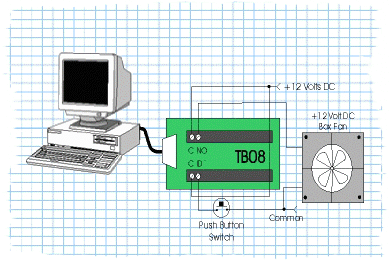

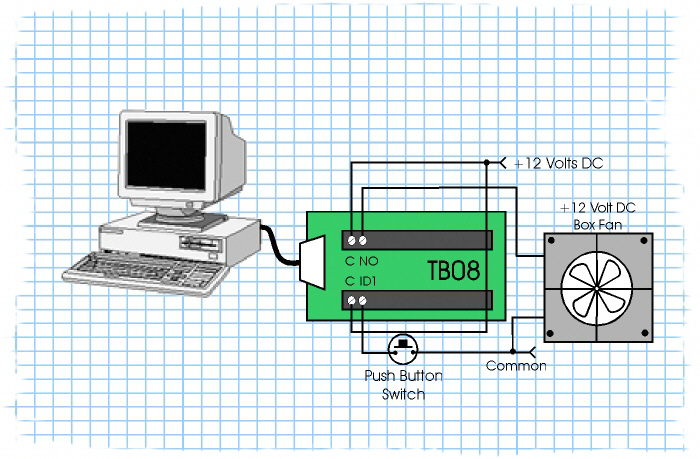

Hardware: A PC with Sealevel PLC-16.PCI (Part# 8011) board installed, connected to Sealevel TB08, terminal block. The cable from the PC to terminal block is supplied.
Click on the image to enlarge

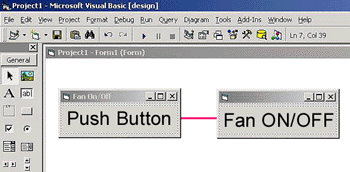

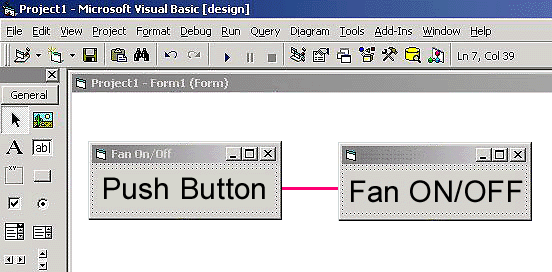

Visual Basic Application to turn on fan:

Click on the image to enlarge
