New -08 Speed Grade Available
Now for Select Devices
The
3.3V XC4000XL family takes the XC4000 Series to new heights in density
and performance. The XC4000XL delivers industry-leading system performance
of up to 80MHz while minimizing power consumption. It features 11 family
members with Select-RAM™, ranging in density from 466 to 7,448 logic cells
(up to 180K system gates). The fully 5-volt tolerant I/Os solve interface
problems in mixed 5V-3V systems. For high-volume applications, mask programmed
HardWire™ versions are available.
Family Highlights
Features
-
-08 speed grade available for XC4013XL, XC4036XL,
XC4062XL
-
3.3 volt operation / 5.0 volt compatibility
-
11 family members
-
2K to 180K system gates
-
Select-RAM memory, fully synchronous timing, true
dual-port capability IEEE 1149.1-compatible boundary scan logic
-
Internal 3-state bus capability
-
12mA sink current per output
-
Wide edge decoders
|
Highest Density
-
466 to 7,448 logic cells (4-input look-up-table and
flip-flop)
-
Up to 180K system-level gates
-
Up to 448 user I/O pins
|
Advanced CMOS Process Technology
-
0.35µ CMOS process, 3.3V power supply
-
Fully 5V-tolerant I/Os
-
Unlimited reprogrammability
-
Immune to latch-up (no power supply sequencing constraints)
|
Highest Performance
-
90+ MHz real system performance
-
Up to 102MHz chip-to-chip I/O speed
-
135MHz dual-port RAM
-
100MHz 12x12 multiplier accumulator
-
100MHz 24-bit loadable accumulator
-
Ultra-high performance DSP functions
-
3.0 billion MACs/s for 8x8 full precision in XC4062XL
(1.0 billion @ 12x12)
|
|
|

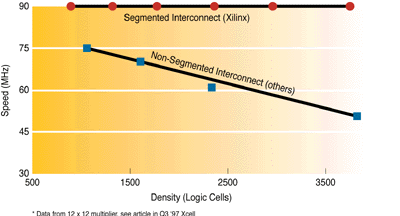

Performance Predictability*
|
Advanced Low-power Routing Architecture
-
High-speed, buffered, segmented interconnect
-
Eight high-speed, low-skew global clocks
-
Abundant routing resources for up to 100% device
utilization
-
VersaRing™ I/O interface for the best pin-locking
|
Complete Alliance™ and Foundation Series™ Software Support
-
Windows 95, Chinese, Korean, Japanese, Windows NT,
NEC98
-
Solaris, HP-UX, AIX
-
Standard-based (VHDL, Verilog, EDIF, SDF)
-
Complete design solution with Foundation Series
-
Powerful tools integrated into your EDA Environment
with Alliance Series
-
Generates and delivers parameterizable cores optimized
for Xilinx FPGAs with CORE Generator
|
Distributed
High-performance Select-RAM
Select-RAM Flexibility
-
Build as many high-performance RAM blocks as needed
-
Each block cascadable to any width and depth
-
Placed at any desired location within the FPGA
-
Ideal for functions such as FIFOs, DSP filters, accumulators,
and scratch-pad memories
|

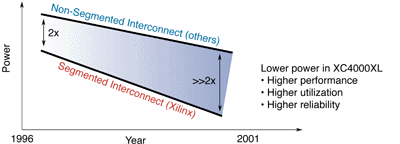

Power Roadmap (for constant number of gates and same
frequency)
|
PDF files below.
