A New Complete Solution for Cost-Effective PCI and CompactPCI Designs

Introducing:

The industry's only solution that integrates the PCI interface, FIFOs and user-logic on one FPGA at lower price than inflexible standard PCI chips.

LogiCORE PCI32 Spartan

Xilinx PCI32 Design Kit

LogiCORE PCI32 Spartan

The new LogiCORE PCI32 Spartan PCI Master/Slave interfaces enable designers to integrate a fully compliant PCI interface with dual-port FIFOs and user logic in one Spartan FPGA device at a price below standard PCI chips. Because Xilinx PCI solution eliminates the need for external FPGAs in the system, the cost can be reduced by more than $15 per board in volume production.

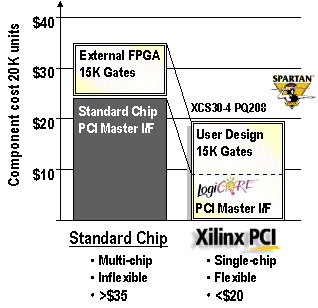

Figure 1: Cost of Xilinx PCI compared to a standard chip solution with an external FPGA

Key Features

LogiCORE PCI32 Spartan (New) is targeted to Xilinx Spartan FPGAs
LogiCORE PCI32 4000 (V2.0) is targeted to Xilinx XC4000XLT FPGAs
Fully V2.1 PCI compliant Master and Slave functionality
Incorporates Xilinx Smart-IP technology for predictability and flexibility
Pre-defined timing and fully verified for best ease-of-use and shortest development time
Selectable zero or one wait-state burst transactions (depending on targeted device)
Modular architecture to facilitate easy customization with guaranteed PCI timing
Supports scalable, dual-port, on-chip FIFOs with simultaneous read and write
Configured and downloadable from the web

Xilinx PCI32 Design Kit

Xilinx provides a complete PCI Design Kit to cut the learning curve and shorten the development time. By forming a partnership with Virtual Computer Corporation, leading provider of rapid prototyping boards and reconfigurable computing systems, and Vireo Software, leading provider of device driver tools, our customers will always have access to the best industry expertise.

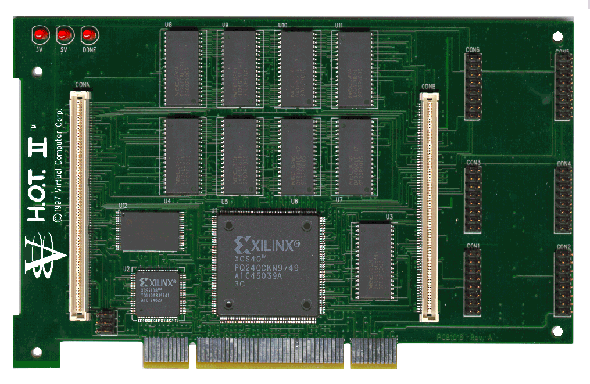

Figure 2: HotPCI Spartan Prototyping Board Click here to view

*Table 1: Xilinx PCI32 Design Kit - content*
Vendor	Items
	LogiCORE PCI32 Spartan M/S Interfaces LogiCORE PCI32 4000 M/S Interfaces Reusable PCI Bridge Design Examples Documentation including PCI System Architecture reference book
	Full-featured driver development tool for Windows 95/98/NT (1) Driver::Works VtoolsD Reference Drivers (Win 95/98/NT) $200 Voucher for unrestricted license (from Vireo)
	HotPCI Spartan prototyping board Demo SW

Note 1: Development license. Vireo provides an unrestricted license for driver distribution

Key Features

Complete solution for PCI system development
Facilitates rapid development and prototyping of compliant PCI systems
Driver::Works development tools from Vireo

Windows 98 and NT support
Interactive GUI Wizard
Runs in conjunction with the Microsoft Visual C++ 4.2 and later.

VtoolsD from Vireo

Windows 95, 98, and 3.X Support
Interactive GUI Wizard
Works with MS or Borland C/C++ compilers
More than 50 sample drivers

HotPCI Spartan Prototyping Board

5 V PCI 2.1 Compliant
Xilinx Spartan XCS40-4
8x128K bytes of fast SRAM
Configuration Flash 128KB
Programmable Clock Generator
Mezzanine Connectors for daughter cards
Reconfigurable from PCI bus

More Information

to view the

PDF files on this page.

Press release

New PCI Data Book (3,900 KB)

LogiCORE PCI32 configuration demo

Xilinx PCI Solutions

Availability

The LogiCORE PCI32 4000 (V2.0) core, for the XC4000 FPGA family, is available now. The PCI32 Design Kit and the LogiCORE PCI32 Spartan core, for the Spartan FPGA family is available in June 1998.

For more information on Xilinx PCI solution, please contact your local Xilinx Sales Office.

New PCI Data Book (3,900 KB)
