4000EX: Can I use a tri-state buffer (OBUFT) with the Output MUX (OMUX2)?
Record #1788
Problem Title:
4000EX: Can I use a tri-state buffer (OBUFT) with the Output MUX
(OMUX2)?
Problem Description:
Can I tri-state an output MUX (OMUX) signal?
Solution 1:
Yes you can have a tri-stated output MUX signal.
The connections are :
OMUX2 -> OBUFT -> OPAD

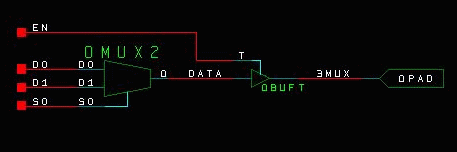

Tri-stated OMUX connections
End of Record #1788
