PCI Core Generator 2.0: Verilog synthesis/simulation with PCI LogiCORE v2.0, FPGA Express v1.2, & M1.3.7


Record #3105

Product Family:  Software

Product Line:  Logicore

Problem Title:
PCI Core Generator 2.0: Verilog synthesis/simulation with PCI LogiCORE
v2.0, FPGA Express v1.2, & M1.3.7



Problem Description:
Keywords: PCI, LogiCORE, v2.0, Verilog, synthesis, FPGA Express, v1.2

Urgency: Standard

General Description:

The PCI LogiCORE v2.0 can be implemtend in the Verilog synthesis/simulation
flow in M1.3.7. using FPGA Express v1.2.

In this example, a design called 'ping' is used to demonstrate using the
PCI LogiCORE v2.0 in this Verilog synthesis flow.  In a 'real' design, the
'ping' design is replaced with the customer application.

Note: it assumed that the user has already setup the environment for running
M1.3.7. and FPGA Express v1.2.	FPGA Express is not a HDL simulation tool.
There is a Verilog simulation flow in M1.3.7.  When describing functional and
timing simulation, a general flow will be described.  For simulating the PCI
LogiCORE v2.0 in M1.3.7, it is recommended that the Verilog simulator used be
100% compatible with VerilogXL v2.5.

For this example, it is assumed that the user has already downloaded the
PCI LogiCORE v2.0, and has unzipped the contents in a directory called 'pcim'
in the root directory. If a target core had been downloaded, the directory
created would have been 'pcis'.  The PCI LogiCORE v2.0 contains files for a
master, slave, 4013XLT implementation files, and 4062XLT implementation files.
For this solution record, the 4013XLT is used and the PCI LogiCORE configured
as a master is assumed.


Solution 1:

Functional simulation with the PCI LogiCORE v2.0 and M1.3.7.

(1) Get a list of files needed to functionally simulate the PCI LogiCORE.
At the root directory of your system, type

cd c:\pcim\verilog\example\func_sim

(2) The func_sim direcory will contain a file called ping_tb.f, which lists the
files needed for functional simulation.  The default list of files are located
relative to the func_sim directory.
The files needed for functional simulation are:

../source/ping_tb.v	   -testbench file
../source/stimulus.v	   -signal generation used in testbench
../source/dumb_target.v    -signal generation used in testbench
../source/dumb_arbiter.v   -signal generation used in testbench
../source/pcim_top.v	   -top-level Verilog file which connects core to ping
../source/ping.v	   -ping design(user applications)
../source/cfg.v 	   -Used to configure features in the PCI LogiCORE v2.0
../../src/xpci/pcim_lc.v   -Verilog simulation model of the PCI LogiCORE v2.0
../../src/xpci/pci_lc_i.v  -Verilog simulation model of the PCI LogiCORE v2.0


For a user design, the ping.v file is replaced with the user Verilog code.
At a minimum cfg.v, pcim_lc.v, and pci_lc_i.v must always be used.

(3) Setup your Verilog simulator to point to the Verilog simulation library in
M1.3.7.  The Verilog simulation library is located at %XILINX%\verilog\data.

(4) Functionally simulate the PCI LogiCORE v2.0 by processing the list of files
in step (2) into the Verilog simulator.



Solution 2:

Synthesis/Place & Route of the PCI LogiCORE v2.0 with FPGA Express v1.2 and
M1.3.7

(1) Asumming that 'pcim' is installed in your root directory, copy the
following Verilog files into a directory of your choice.  For this example,
the directory is c:\mypci:

copy c:\pcim\verilog\example\source\ping.v c:\mypci
copy c:\pcim\verilog\example\source\cfg.v c:\mymci
copy c:\pcim\verilog\example\source\pcim_top.v c:\mypci

(2) Start FPGA Express and create a project in c:\mypci.

(3) After creating the project, read in the files in the mypci directory into
the FPGA Express project.

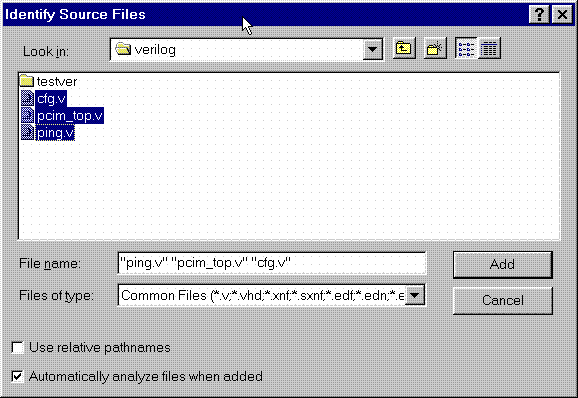

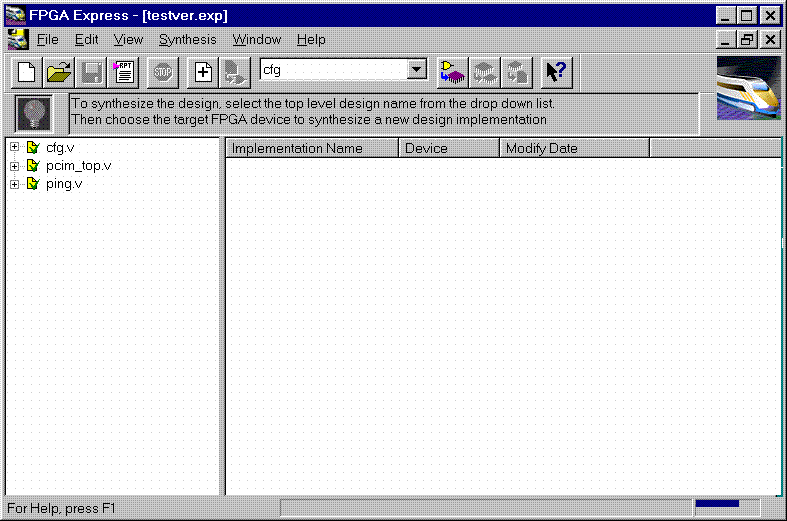

 Figure 1- Read Verilog file into project


 Figure 2- Verilog files analyzed

(4) After the files have been 'analyzed', create an implementation.  When the
'Create Implementation' window appears, set 'Family' to XC4000; set 'Device'
to 4013xlpq208; set 'Speed grade' to -1.  Check the box 'Do not insert I/O
Pads'.	4013xlhq240-1 is also a valid part type for the PCI LogiCORE v2.0.
(The PCI LogiCORE can also be used with the 4062xlpq208-1 or 4062xlhq240-1)

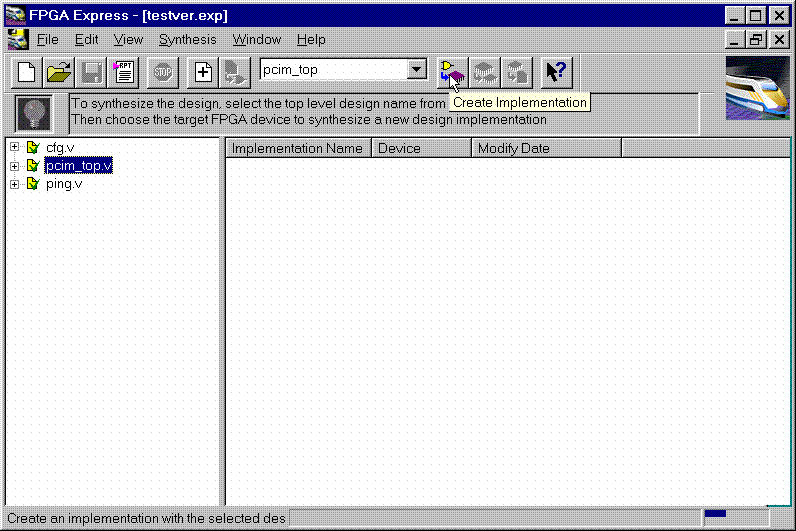

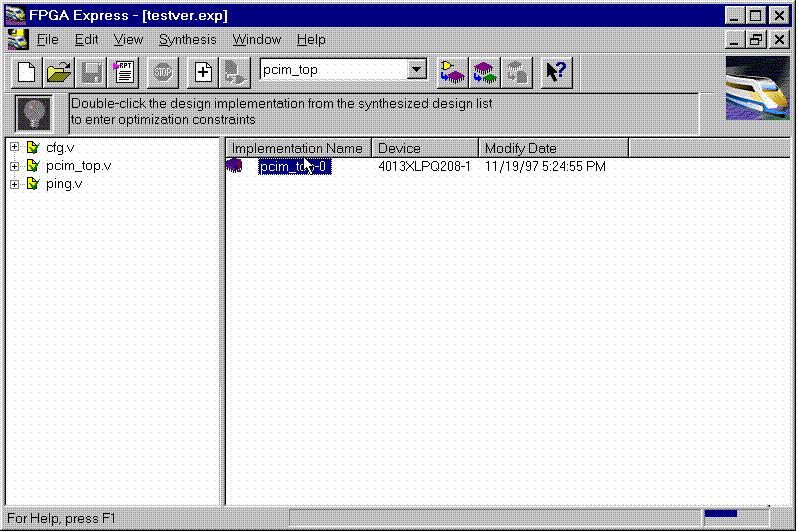

 Figure 3- Implement the Design

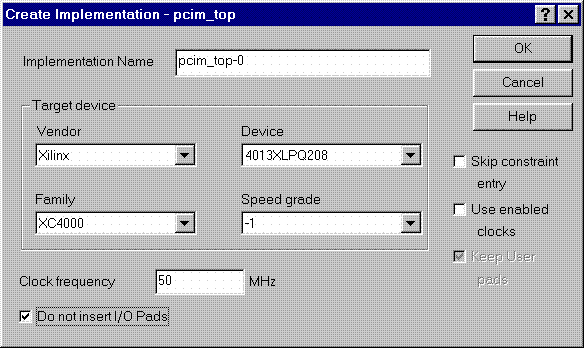

 Figure 4- Create Implementation Window

By default, FPGA Express v1.2 automatically inserts the correct I/O cells.
The PCI LogiCORE v2.0 already has I/O inside of it.  FPGA Express v1.2 can only
insert all I/O cells or none at all.  If FPGA Express was allowed to behave in
its 'default' way, a syntactically incorrect netlist would be created.
FPGA Express must be prevented for inserting I/O cells.  I/O cells for the
user application, in this case 'ping', must have the I/O cells instantiated
manually.

(5) Double-click on the implemenation that was created.  A 5-tab window will
appear.  Select the 'Modules' tab.


 Figure 5- Open implementation

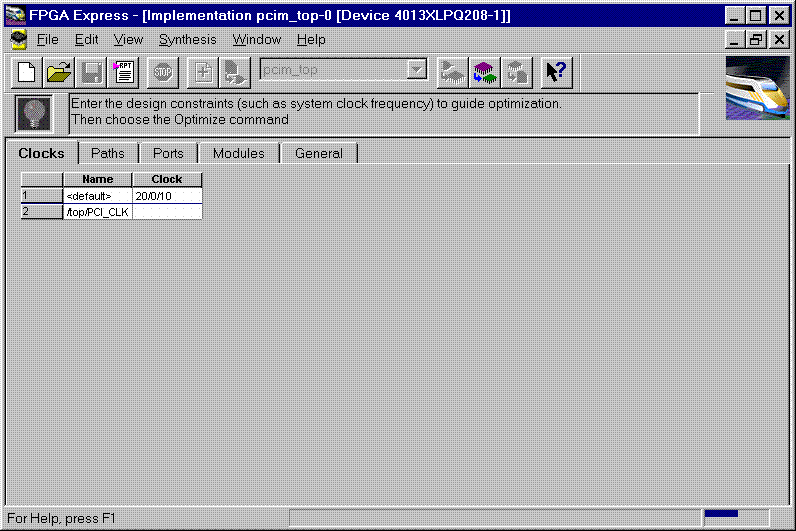

 Figure 6- Implementation View

(6) Under Modules, four items will be listed: IBUF, PCI_CORE, OBUF, and PING.
Place a 'preserve' on all four items.

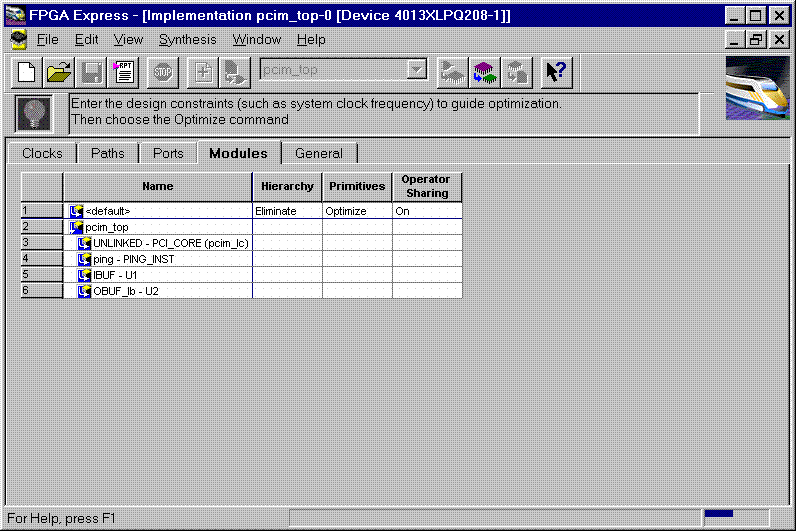

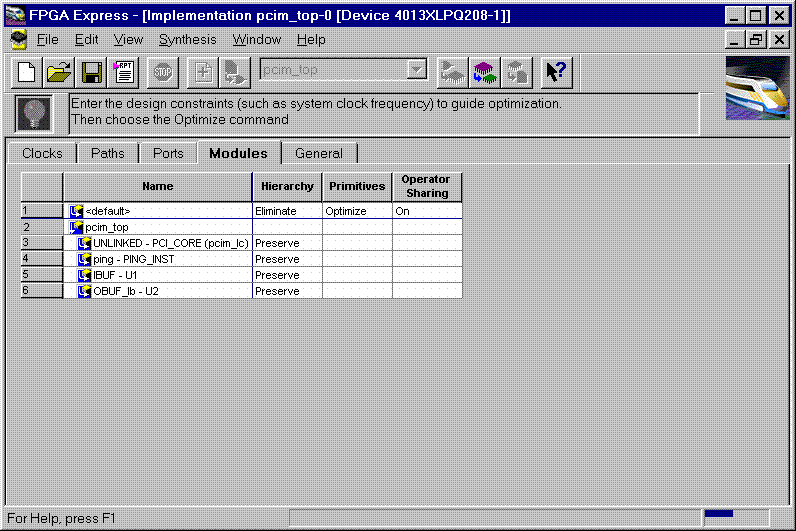

 Figure 7- Implementation-Modules view

For a user design, a preserve must always be placed on PCI_CORE, any
instantiated I/O, and on the user application (in this case ping).


 Figure 8- 'Preserve' attribute applied


(7) Apply constraints in the implementation window as desired.	Constraints
can be applied via the 'Clock', 'Path', & 'Ports' tabs in the implementation
window.

(8) Close the implementation and 'optimize' (synthesize) the design.

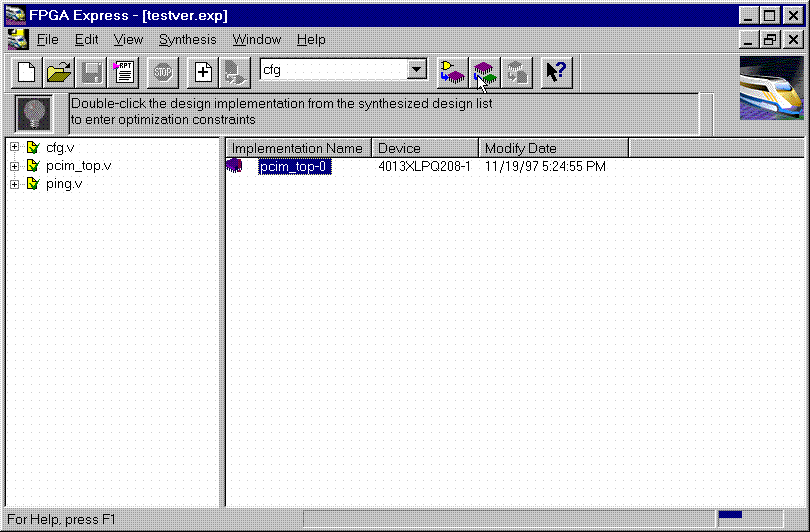

 Figure 9- Optimize

(9) An error may happen during optimization.  Because FPGA Express v1.2 is
instantiating a black-box, Express is unable to determine the correct pin
directions for some of the pins of the core.  Error messages of this type will
appear as:

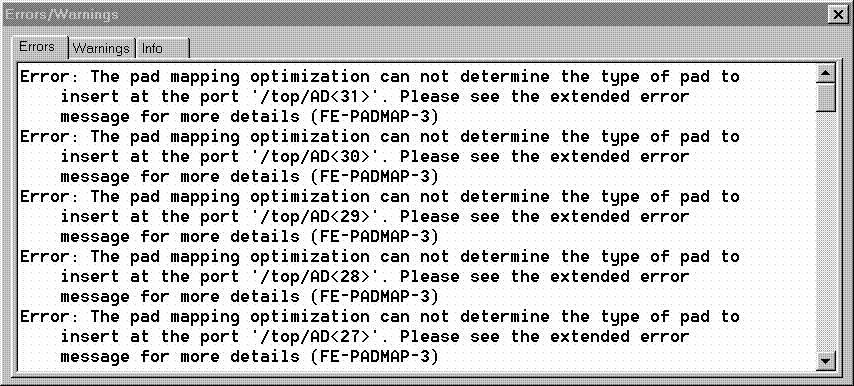

 Figure 10- Error message on ports

If this happens, the pad directions for the listed pins must be specified.  Go
back to the Implementation Window and select the 'Ports' tab.  Based on the
list of ports Express cannot determine direction, find those pins in the
'Ports' view and select that pin in the 'Pad' column.  In this example, AD<31>
is used.  Select 'Define' for AD<31>.

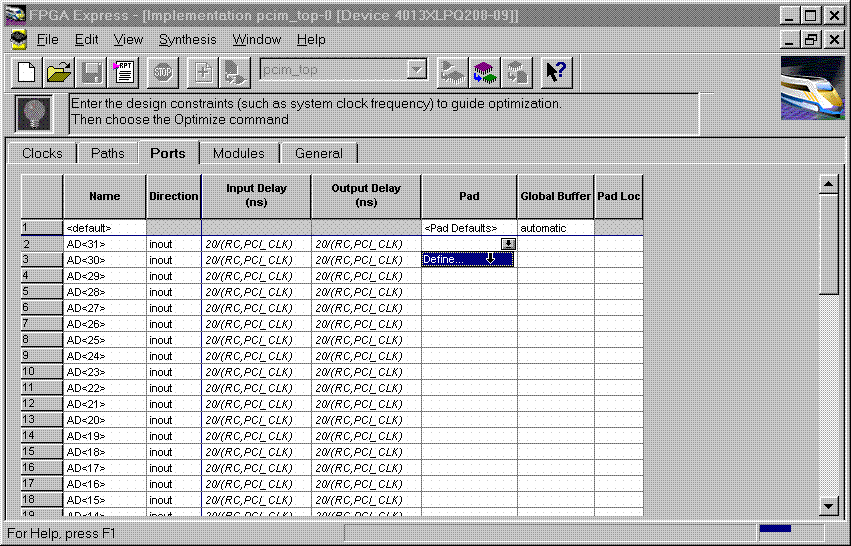

 Figure 11- Defining port directions, part 1

The 'Define Pad' window will appear.  Since AD is really an inout port, in the
'Pad Type' section of the 'Define Pad' window, select output. If the port was
defined as an input, then input in 'Pad Type' would have been selected.  If the
port was defined as output, then output would have been selected in 'Pad Type'.

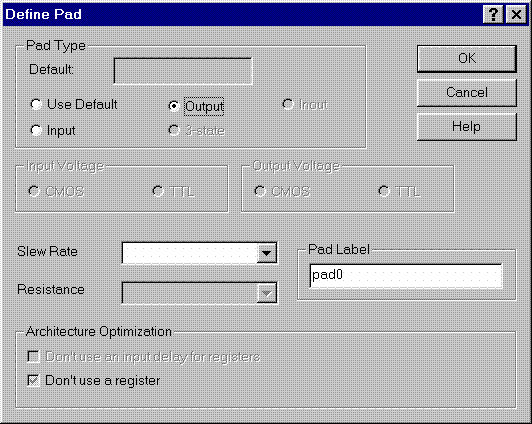

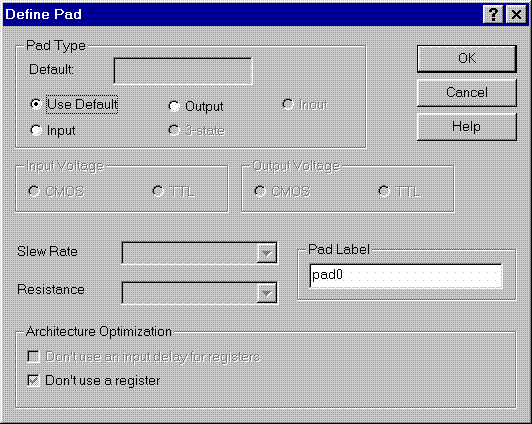

 Figure 12- Defining port directions, part 2

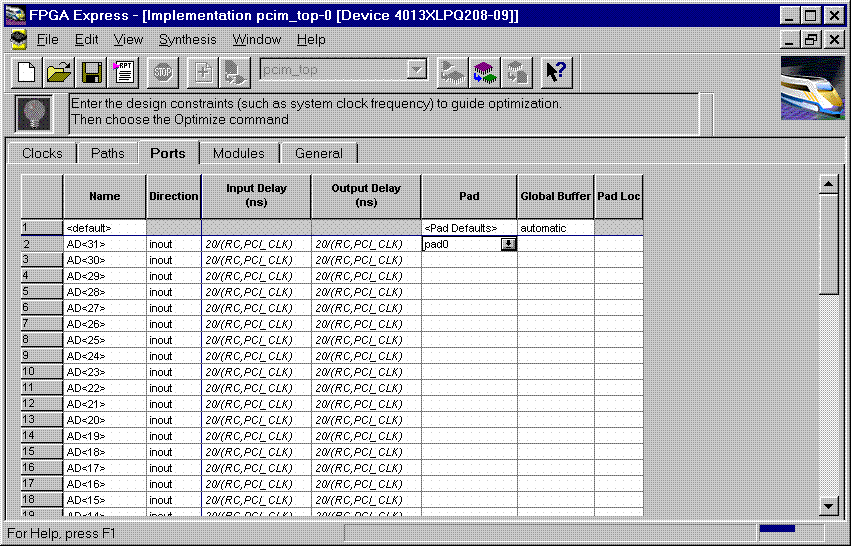

 Figure 13- Defining port directions, part 3

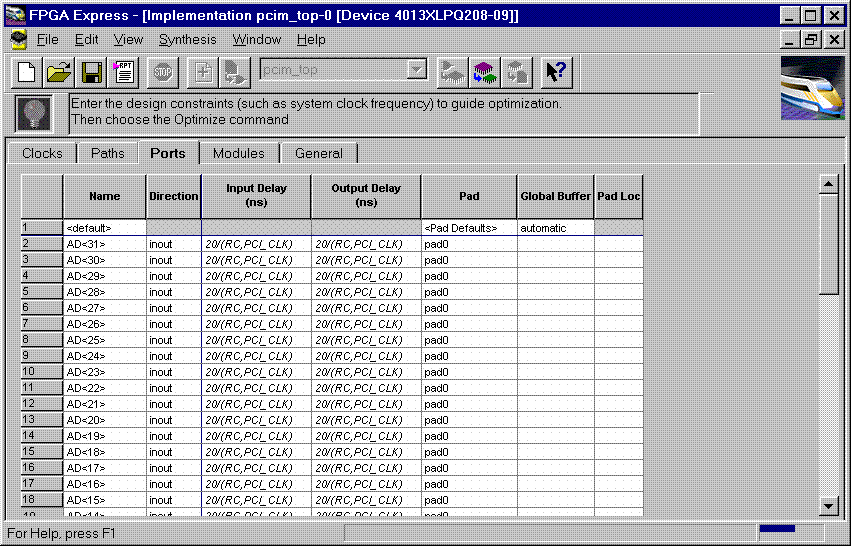

 Figure 14- Defining port directions, part 4

Specify the pin direction for all ports listed in the error window during the
optimize phase.  Once a 'padn' has been defined, the padn direction can be
copied for other ports of a similar type.


 Figure 15- Defining port directions part 5


(10) Re-optimize the design.  For future revisions, duplicate the
implementation that contains the correct pad directions for the core.

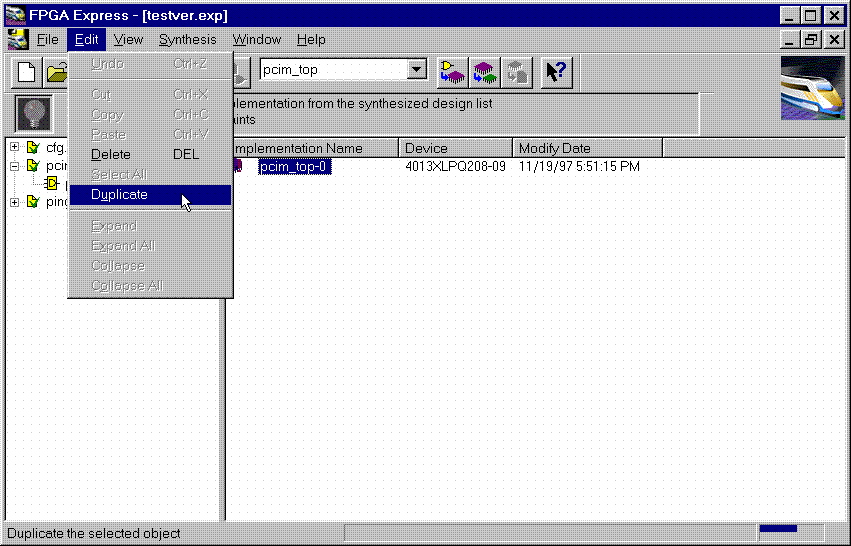

 Figure 16- Duplicating the Implementation

(11) If optimization is succesful, write out the XNF files for the design.
Place the XNF files in the c:\mypci directory.	Two XNF files will be produced
by FPGA Express.  One file will be named after the top-level design file (in
this case pcim_top.xnf). The other file will be named after the user
application (in this case ping.xnf).

(12) Edit the top-level XNF file from FPGA Express v1.2 (in this case
pcim_top.xnf).	FPGA Express v1.2 is unable to determine the pin directions
for the instantiated PCI LogiCORE v2.0.  M1.3.7 is very strict in checking pin
directions.  The pin directions of the PCI LogiCORE v2.0 in the top-level XNF
file from FPGA Express v1.2 must be edited.  All the pin directions for the
PCI LogiCORE in the pcim_top.xnf file will have the direction 'B'.  PIN
directions in a XNF file can be of three types: 'B', 'I', & 'O'.  Edit the PIN
directions for the SYM PCI_CORE only.  The PIN directions for the PCI_CORE must
correspond to the pin directions for the module pcim_lc.  See the file
c:\pcim\verilog\src\xpci\pcim_lc.v for the correct pin directions.

Here is a partial example of what the PCI_CORE symbol will look like directly
out of FPGA Express v1.2:


LCANET, 6
PROG, FPGA Express, v1.2, Build 1.2.0.6.6.1997
PART, 4013EPQ208-1
SYM, PCI_CORE, pcim_lc, LIBVER=2.0.0
PIN, AD_IO<31>, B, AD<31>, ,
PIN, AD_IO<30>, B, AD<30>, ,
PIN, AD_IO<29>, B, AD<29>, ,
PIN, AD_IO<28>, B, AD<28>, ,
PIN, AD_IO<27>, B, AD<27>, ,
PIN, AD_IO<26>, B, AD<26>, ,
PIN, AD_IO<25>, B, AD<25>, ,
PIN, AD_IO<24>, B, AD<24>, ,
PIN, AD_IO<23>, B, AD<23>, ,
PIN, AD_IO<22>, B, AD<22>, ,
PIN, AD_IO<21>, B, AD<21>, ,
PIN, AD_IO<20>, B, AD<20>, ,
PIN, AD_IO<19>, B, AD<19>, ,
PIN, AD_IO<18>, B, AD<18>, ,
PIN, AD_IO<17>, B, AD<17>, ,
.
.
.
.
PIN, CFG<5>, B, KEEPOUT, ,
PIN, CFG<4>, B, KEEPOUT, ,
PIN, CFG<3>, B, KEEPOUT, ,
PIN, CFG<2>, B, KEEPOUT, ,
PIN, CFG<1>, B, KEEPOUT, ,
PIN, CFG<0>, B, C_READY, ,
PIN, PCI_RST, B, PCI_RST, ,
PIN, CLK, B, PCI_CLK, ,
END
.
.
.


The corrected PCI_CORE appears as follows:


LCANET, 6
PROG, FPGA Express, v1.2, Build 1.2.0.6.6.1997
PART, 4013EPQ208-1
SYM, PCI_CORE, pcim_lc, LIBVER=2.0.0
PIN, AD_IO<31>, B, AD<31>, ,
PIN, AD_IO<30>, B, AD<30>, ,
PIN, AD_IO<29>, B, AD<29>, ,
PIN, AD_IO<28>, B, AD<28>, ,
PIN, AD_IO<27>, B, AD<27>, ,
PIN, AD_IO<26>, B, AD<26>, ,
PIN, AD_IO<25>, B, AD<25>, ,
PIN, AD_IO<24>, B, AD<24>, ,
PIN, AD_IO<23>, B, AD<23>, ,
PIN, AD_IO<22>, B, AD<22>, ,
PIN, AD_IO<21>, B, AD<21>, ,
PIN, AD_IO<20>, B, AD<20>, ,
PIN, AD_IO<19>, B, AD<19>, ,
PIN, AD_IO<18>, B, AD<18>, ,
PIN, AD_IO<17>, B, AD<17>, ,
.
.
.
.
PIN, CFG<5>, I, KEEPOUT, ,
PIN, CFG<4>, I, KEEPOUT, ,
PIN, CFG<3>, I, KEEPOUT, ,
PIN, CFG<2>, I, KEEPOUT, ,
PIN, CFG<1>, I, KEEPOUT, ,
PIN, CFG<0>, I, C_READY, ,
PIN, PCI_RST, O, PCI_RST, ,
PIN, CLK, I, PCI_CLK, ,
END
.
.
.



A complete example of 'before' and 'after' making the PIN direction change can
be found in the PCI LogiCORE v2.0 files.  See the file pcim_top.xnf.org and
pcim_top.xnf.new which are located in c:\pcim\verilog\example\express.

(13) Copy the following files into the c:\mypci directory:

copy c:\pcim\verilog\src\xpci\pcim_lc.sxnf c:\mypci\pcim_lc.xnf
copy c:\pcim\verilog\src\xpci\pci_lc_i.ngo c:\mypci
copy c:\pcim\verilog\src\ucf\m13xp208.ucf c:\mypci
copy c:\pcim\verilog\src\guide\m13xp208.ncd c:\mypci

pcim_lc.sxnf must always be used.  Be sure to re-name it to the extension .xnf.
This file merges the core with the design correctly and contains needed constrai
nts.

pci_lc_i.ngo is the PCI LogiCORE v2.0 design.

A constraint file included with the PCI LogiCORE v2.0 must be used.  There are
four constraint files in the cpcim\verilog\src\ucf directory.  There are two
UCF files for the 4013XLT.  There are two UCF files for the 4062XLT.  The
4013xlpq208 guide file was used in this example.

(14) Place and route the design by running the following commands in the
c:\mypci directory. Optionally, the listed commands below can be placed in a
batch file:

set XIL_MAP_LOC_CLOSED=true
ngdbuild -p 4013xlpq208-1 -uc ../../src/ucf/s13xp208_1.ucf pcim_top.xnf
map -pr o pcim_top.ngd -o pcim_top.ncd pcim_top.pcf
par -gm exact -gf ../../src/guide/m13xp208 -d 1 -w pcim_top pcim_top_routed pcim
_top
trce -v 10 pcim_top_routed pcim_top
ngdanno pcim_top_routed
ngd2ver -w pcim_top_routed



Solution 3:

Timing Simulation with the PCI LogiCORE v2.0 and M1.3.7.

(1) After place and route, a structural Verilog file, pcim_top_routed.v, and
an SDF file, pcim_top_routed.sdf, will be in the c:\mypci directory.

(2) Setup your Verilog simulator to use the M1.3.7 Verilog simulation
libraries, which are located in %XILINX%\verilog\data.

(3) Simulate the PCI LogiCORE design, by reading in the pcim_top_routed.v file,
pcim_top_routed.sdf file, and testbench file into the Verilog simulator.  In
this case for the ping design, the 'testbench' is comprised of the following
files:

c:\pcim\verilog\example\source\ping_tb.v
c:\pcim\verilog\example\source\stimulus.v
c:\pcim\verilog\example\source\dumb_target.v
c:\pcim\verilog\example\source\dumb_arbiter.v



End of Record #3105
