Typical I/V Characteristics of XC9500 Outputs


Record #3116

Product Family:  Hardware

Product Line:  9500

Problem Title:
Typical I/V Characteristics of XC9500 Outputs


Problem Description:
Keywords: voltage, current, output, cpld, 9500, IV, VI,
	  output characteristics, I/V, V/I

Urgency: standard

What does a typical 9500 I/V curve look like?


Solution 1:


The I/V characteristic chart below is given as a data point to show a
typical I/V characteristic curve for XC9500 devices.  Please note that
all devices in the XC9500 family use the same output driver configuration.

Date:			3/19/97
Device used:		Two XC95108 PC84
Vcc:			5.0v
Temperature:		25 C
Output Slew Rate:	Both Fast and Slow slew rates were programmed into
			each unit for comparison.  No difference was observed.

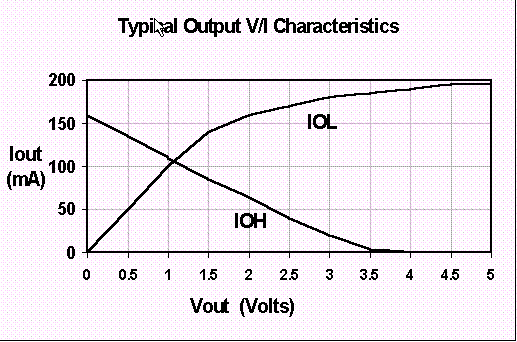

Typical Output I/V Characteristics
