A1.4/F1.4: Some figures in the 1.4 Hardware User Guide are incorrect
Record #3403
Product Family: Documentation
Product Line: FPGA Core
Problem Title:
A1.4/F1.4: Some figures in the 1.4 Hardware User Guide are incorrect
Problem Description:
Keywords: Hardware, user, guide, jtag, fpga, flying, leads,
parallel, xchecker, cable, demo, board, xc4000, xc3000, jtag
Urgency: Standard
General Description:
Figures 1-4, 2-1, 3-1, 3-3, 3-4, 3-5, 3-7, 3-8 and 3-9 in the
A1.4/F1.4 Hardware User Guide are incorrect.
Solution 1:
The corrected figures are now available in the GIF format.

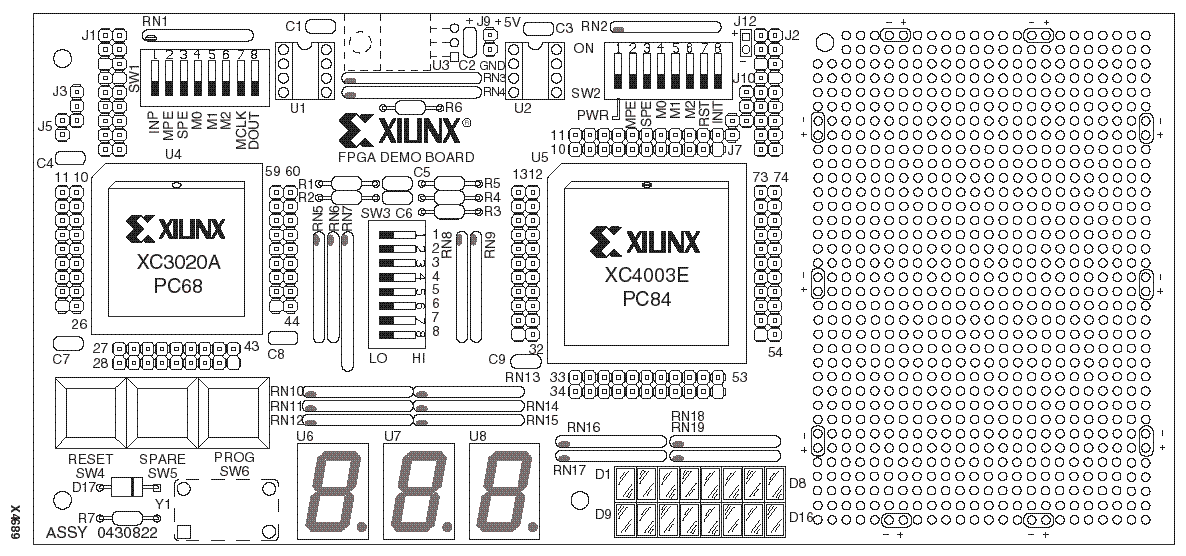

Figure 1-4:
![FPGA Demonstration Board Component Layout](../wcd00025/wcd02514.gif)
FPGA Demonstration Board Component Layout

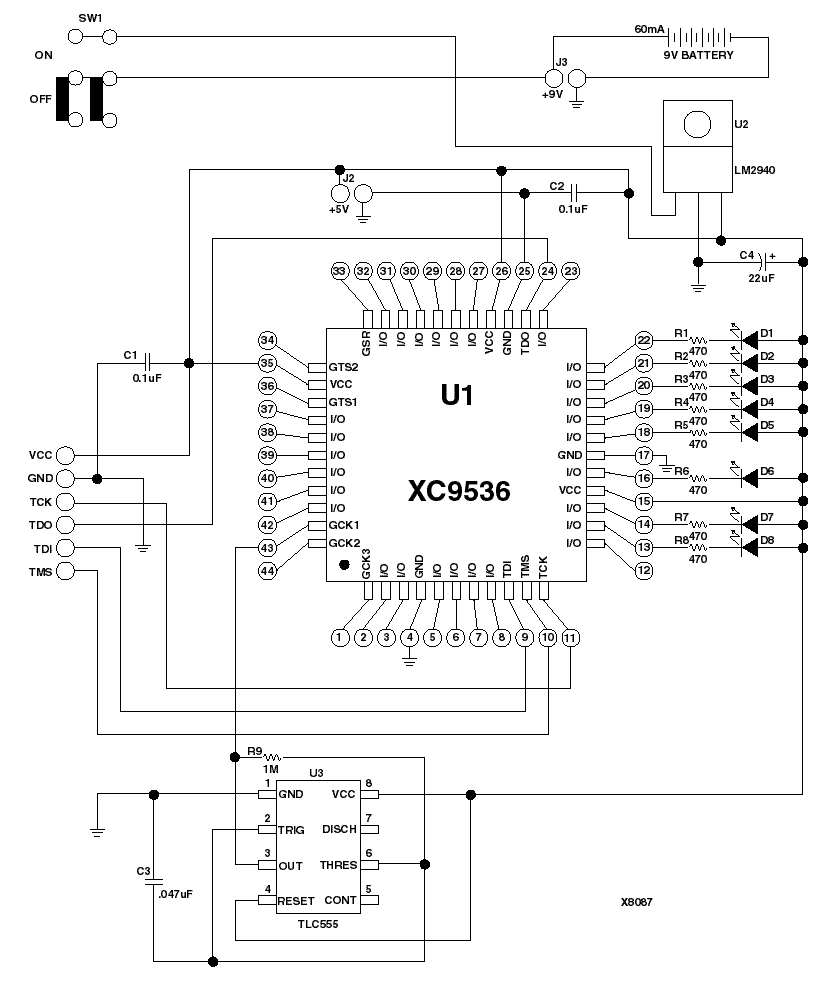

Figure 2-1:
![ISP Demo Board](../wcd00025/wcd02515.gif)
ISP Demo Board

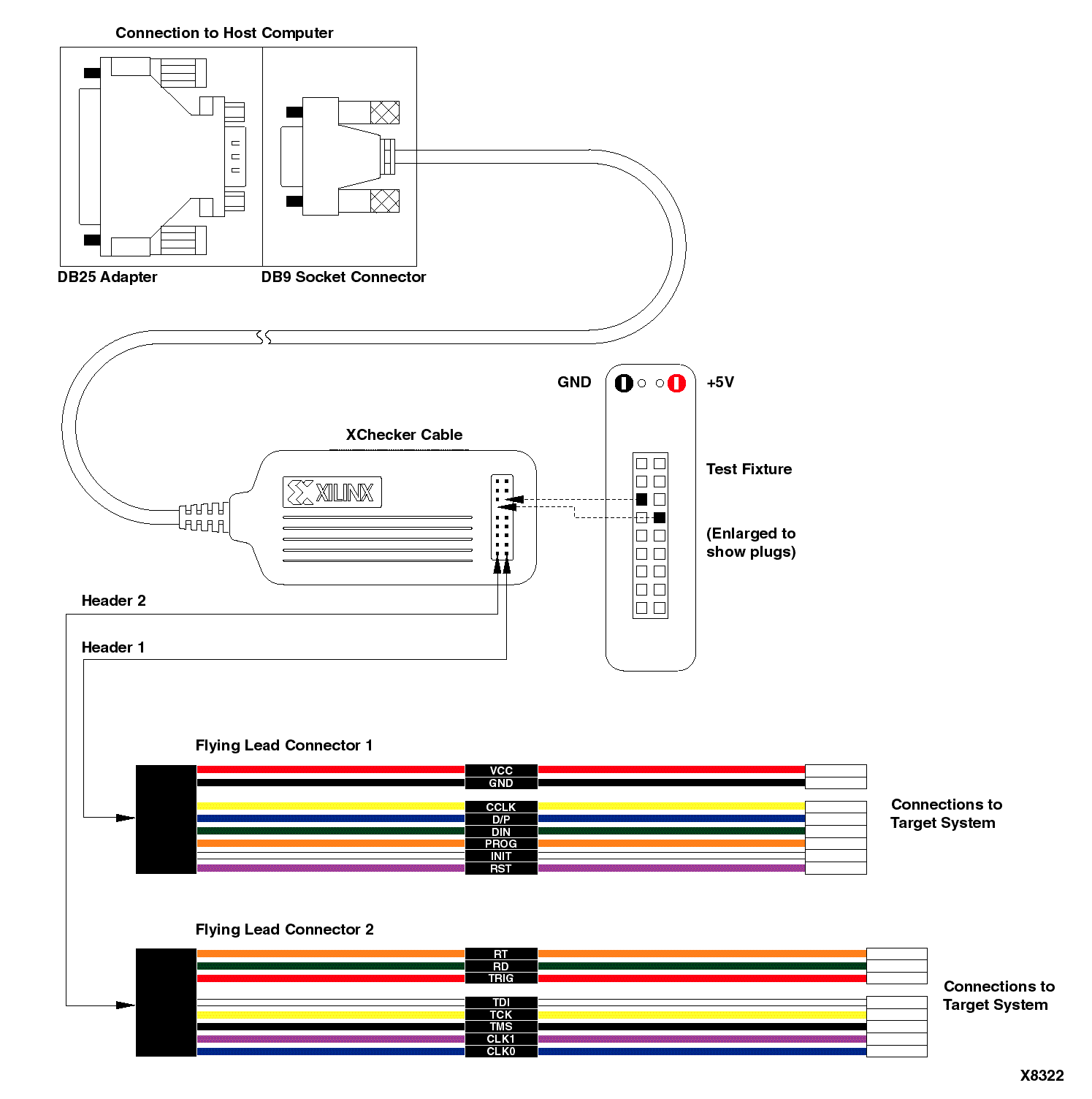

Figure 3-1:
![Xchecker Cable and Flying Leads](../wcd00025/wcd02516.gif)
Xchecker Cable and Flying Leads

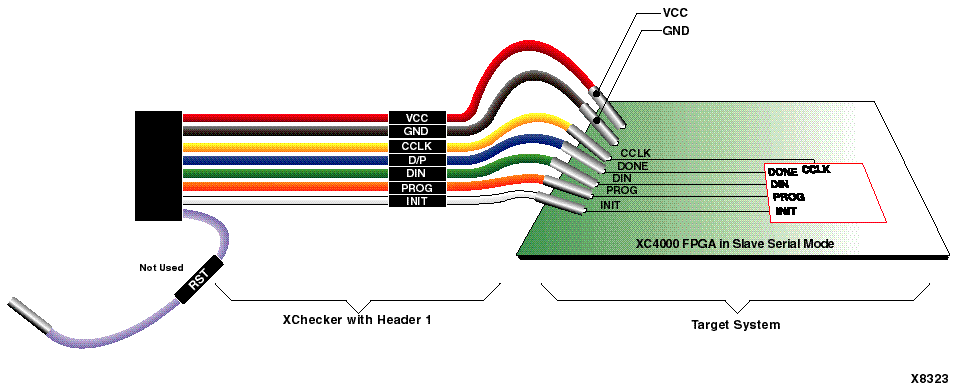

Figure 3-3:
![Xchecker Connections to XC4000 Device](../wcd00025/wcd02517.gif)
Xchecker Connections to XC4000 Device

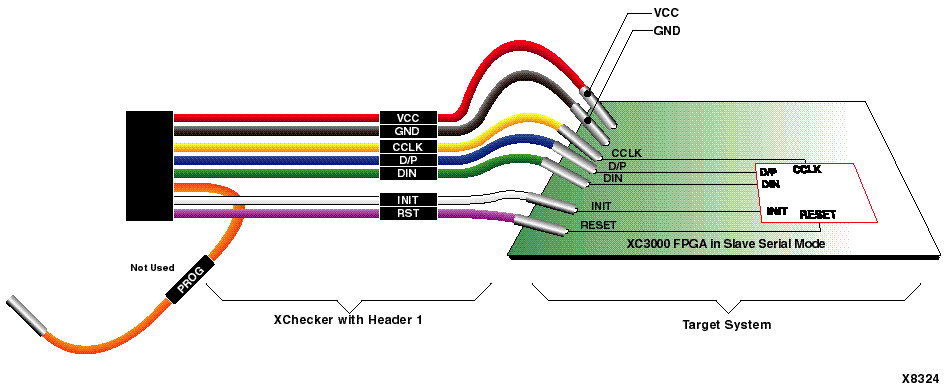

Figure 3-4:
![Xchecker Connections to XC3000 Device](../wcd00025/wcd02518.gif)
Xchecker Connections to XC3000 Device

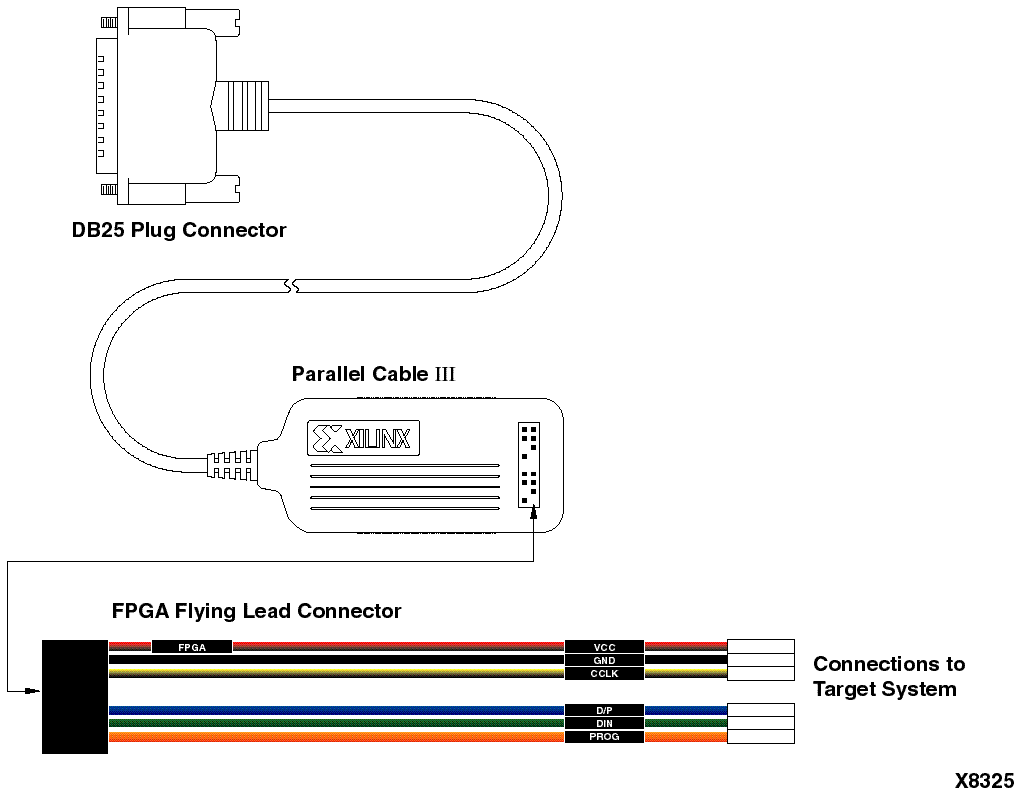

Figure 3-5:
![Parallel Cable III & FPGA Flying Leads](../wcd00025/wcd02519.gif)
Parallel Cable III & FPGA Flying Leads

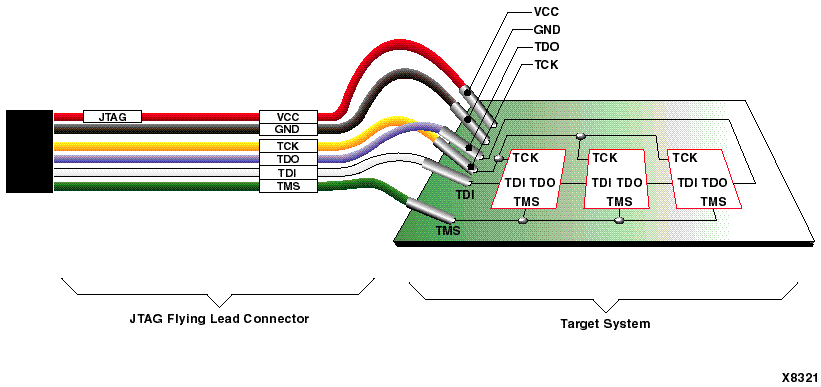

Figure 3-7:
![Parallel Cable III Connection to a JTAG Chain of Devices](../wcd00025/wcd0251a.gif)
Parallel Cable III Connection to a JTAG Chain of Devices

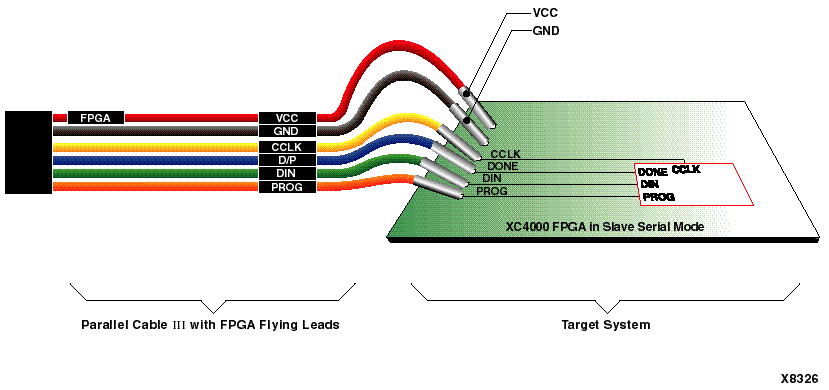

Figure 3-8:
![Parallel Cable III Connections to XC4000 Device](../wcd00025/wcd0251b.gif)
Parallel Cable III Connections to XC4000 Device

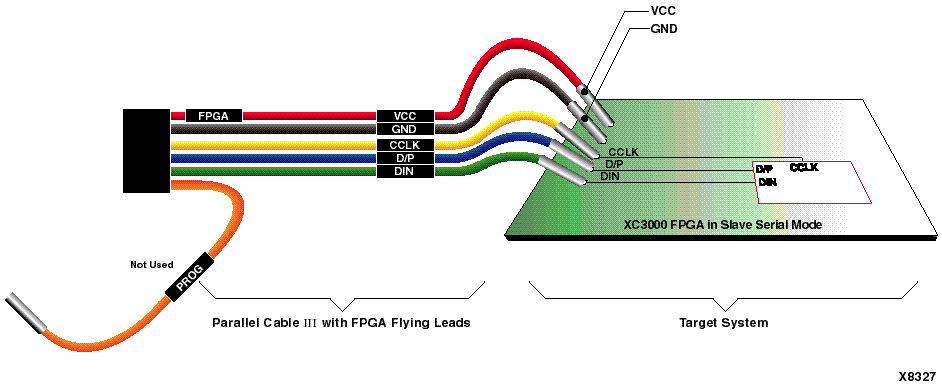

Figure 3-9:
![Parallel Cable III Connections to XC3000 Device](../wcd00025/wcd0251c.gif)
Parallel Cable III Connections to XC3000 Device
End of Record #3403
