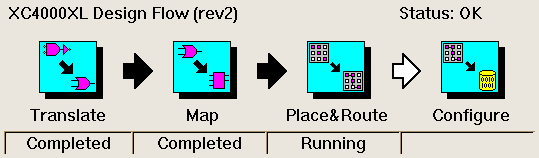

The Flow Engine illustrates the processes which occur in the implementation of a Xilinx programmable logic device. This illustration shows an FPGA design flow which has been successfully translated and mapped, and is currently being placed and routed. |
