Instructions

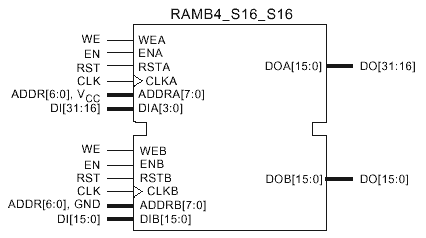

The true dual-read/write port functionality of the Block SelectRAM+
memory allows a single port, 128 deep by 32-bit wide RAM to be created
using a single Block SelectRAM+ cell. Interleaving the memory space,
setting the LSB of the address bus of Port A to 1 (VCC ), and the
LSB of the address bus of Port B to 0 (GND), allows a 32-bit wide
single port RAM to be created.
|
