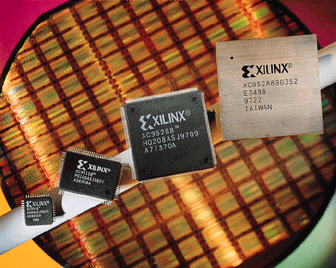

The XC9500™ In-System Programmable (ISP) CPLD family takes complex programmable logic devices to new heights of high-performance, feature-richness, and flexibility. This 5V family delivers industry-leading speeds, while giving you the flexibility of an enhanced customer proven pin-locking architecture along with extensive IEEE Std. 1149.1 JTAG boundary scan support. It features six devices ranging from 36 to 288 macrocells with a wide variety of package combinations that both minimize board space and maintain package footprints as designs grow or shrink. All I/O pins allow direct interfacing to both 3 and 5 volt systems, while the latest in compact, easy-to-use CSP and BGA packaging gives you access to as many as 192 signals.

Flexible Pin-Locking Architecture
The XC9500 devices, in conjunction with our fitter software, gives you the maximum in routability and flexibility while maintaining high performance. The architecture is feature rich, including individual p-term output enables, three global clocks, and more p-terms per output than any other CPLD. The proven ability of the architecture to adapt to design changes while maintaining pin assignments (pin-locking) has been demonstrated in countless real-world customer designs since the introduction of the XC9500 family. This assured pin-locking means you can take full advantage of in-system-programmability and you can easily change at any time, even in the field.

Family Highlights

Highest Density

• 5 ns pin-to-pin logic delays on all pins
• f_CNT to 125 MHz

• Wide range of package styles including new Chip Scale Packaging (CSP)

• 36 to 288 macrocells (800 to 6,400 gates)
• 34 to 192 I/Os

• Flexible 36V18 function block
• 90 product terms drive any or all of 18 macrocells
• Global and product term clocks, output enables, set and reset
• Power selection for each macrocell

• Industry standard JTAG interface
• Endurance of 10,000 program/erase cycles
• Device programming over the full voltage and temperature range
• 20 years data retention

• 24 mA drive on all pins
• 3.3 V or 5 volt I/O capability
• Slew rate control on each output

• Extended boundary scan functions
• On-chip logic testing
• High impedance I/O isolation
• ID and USER Codes
• Design security
• Write Only (no readback) function

• Automatic test system programming support
• HP3070
• Genrad
• Teradyne
• Extensive third-party tool support
• JTAG Technologies
• Corelis Incorporated
• ASSET Intertech

• Alliance Series Software (for EDA Environments)
• Foundation Series Software (HDL Design Solution)
• Free WebPOWERED Software (Internet Based Solution)

Full IEEE 1149.1 JTAG Development and Debugging Support
The JTAG capability of the XC9500 family is the most comprehensive of any CPLD on the market. It features the standard support including BYPASS, SAMPLE/PRELOAD, and EXTEST. Additional boundary scan instructions, not found in any other CPLD, such as INTEST (for device functional test), HIGHZ (for bypass), and USERCODE (for program tracking), allow you the maximum debugging capability.
The XC9500 family is supported by a wide variety of industry standard third-party development and debugging tools including Corelis, JTAG Technologies, and Asset Intertech. These tools allow you to develop boundary scan test vectors to interactively analyze, test, and debug system failures. The family is also supported on all major ATE platforms including Teradyne, Hewlett Packard, and Genrad.

Powerful Software Tools
Advanced fitter algorithms and powerful "auto-interactive" features allow you to choose between pushbutton and manual design flows, and standards-based design-flows including EDIF, SDF, VHDL (VITAL), and Verilog. Both the Alliance Series and Foundation Series software include the JTAG software and the JTAG cable required for ISP JTAG programming of all XC9500 products.

XC9500 Product Overview
	XC9536	XC9572	XC95108	XC95144	XC95216	XC95288
Macrocells	36	72	108	144	216	288
Usable Gates	800	1,600	2,400	3,200	4,800	6,400
tPD (ns)	5.0	7.5	7.5	7.5	10.0	15.0
Registers	36	72	108	144	216	288
Maximum User I/Os	34	72	108	133	166	192
Packages	48CSP
	44VQ
	44PC	44PC
		84PC	84PC
		100TQ	100TQ	100TQ
		100PQ	100PQ	100PQ
			160PQ	160PQ	160PQ
					208HQ	208HQ
					352BG	352BG
