Xilinx Solution Summary

The Internet boom has created the need for faster and faster systems. Microprocessor speeds are already surpassing 500MHz, but static-memory subsystems including double data rate (DDR) are hard-pressed to keep pace. Quad Data Rate (QDR) SRAMs resolve the bandwidth limitation of existing memory solutions, and provide a high-performance architecture that can be used to provide data throughputs of 11.592 Gbits/s, this is four times the performance of current SRAM solutions.

The QDR SRAM architecture, pioneered by the QDR Consortium, consisting of Cypress Semiconductor, IDT and Micron Technology, provides dedicated input and output ports that independently operate at double data rate (DDR). This results in four data transfers per clock cycle and overcomes bus contention issues. The QDR SRAM I/Os use HSTL signaling, this provides an easy migration path for future lower voltage levels.

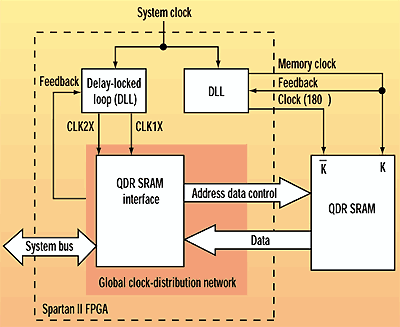

The Spartan-II FPGA, with its unique and extensive features provides the industry's first memory controller solution for interface with QDR SRAMs. Moreover, Xilinx provides FREE VHDL source code for implementing the QDR SRAM memory controller in the low cost Spartan-II FPGA.

Click here to register for immediate access to the 'FREE' VHDL source code for the QDR SRAM memory controller.
