The HTML 2.0 standard makes no provision for controlling text color and background appearance for documents, instead allowing the local browser to determine the appearance of the documents. In order to give local users more control, browsers let them select text and background colors, as well as a background image to display behind each document. The user selections are applied to each document viewed.
In an egalitarian move, the browsers also extended HTML with various tags and attributes that let the document author control the document background and colors. These tags and attributes provide the maximum control to the author, letting colors and backgrounds be different for each document and allowing color changes for individual passages of text. [<font>, 4.6.3]
The local browser reigns supreme, however. User-selected color and background preferences can be made to override those contained in a document, undoing all the careful work of the document author.
All extended attributes that control the document background, text color, and document margins are used with the <body> tag. [<body>, 3.7.1]
For Netscape and Internet Explorer users, you can change the default background color in the browser window to another hue with the bgcolor attribute for the <body> tag. Like the color attribute for the <font> and various heading tags, the required value of the bgcolor attribute may be expressed in either of two ways: as the red, green, and blue (RGB) components of the desired color or as a standard color name. Appendix E, Color Names and Values, provides a complete discussion of RGB color encoding along with a table of acceptable color names you can use with the bgcolor attribute.
Setting the background color is easy. To get a pure red background using RGB encoding, try:
<body bgcolor="#FF0000">
For a more subtle background, try:
<body bgcolor=peach>
If a splash of color isn't enough, you may also place an image into the background of a Netscape Navigator or Internet Explorer document display with the background attribute in its <body> tag.
The required value of the background attribute is the URL of an image. The browser automatically repeats (tiles) the image both horizontally and vertically to fill the entire window.
You normally should choose a small, somewhat dim image to create an interesting, but unobtrusive background pattern. Besides, a small, simple image traverses the network much faster than an intricate, full-screen image.
Figure 5-18 shows you how the extended browsers repeatedly render a single brick to create a wall of bricks for the document background:
<body background="pics/onebrick.gif">
Background images of various dimensions and sizes create interesting vertical and horizontal effects on the page. For instance, a tall skinny image might set off your document heading:
<body background="pics/vertical_fountain.gif"> <h3>Kumquat Lore</h3> For centuries, many myths and legends have arisen around the kumquat.
If the vertical_fountain.gif is a narrow, tall image whose color grows lighter towards its base and whose length exceeds the length of the document body, the resulting document might look like the one shown in Figure 5-19.
You can achieve a similar effect horizontally with an image that is much wider than it is long (Figure 5-20).
The bgproperties attribute extension for the <body> tag is exclusive to Internet Explorer and only works in conjunction with the background attribute extension. The bgproperties attribute has a single value, fixed. It freezes the background image to the browser window, so it does not scroll with the other window contents. Hence, the example H2Omark.gif background image servers as a watermark for the document:
<body background="pics/H2Omark.gif" bgproperties="fixed">
Once you alter a document's background color or add a background image, you also might need to adjust the text color to ensure that users can read the text. The text attribute for the <body> tag does just that: it sets the color of all nonanchor text in the entire document.
Give the text attribute a color value in the same format as you use to specify a background color (see bgcolor above)--an RGB triplet or color name, as described in Appendix E. For example, to produce a document with blue text on a pale yellow background, use:
<body bgcolor="#777700" text="blue">
Of course, it's best to select a text color that contrasts well with your background color or image.
The link, vlink, and alink attributes of the <body> tag control the color of hypertext (<a> tag) in your documents. All three accept values that specify a color as an RGB triplet or color name, just like the text and bgcolor attributes.
The link attribute determines the color of all hyperlinks the user has not yet followed. The vlink attribute sets the color of all links the extended browser user had followed at one time or another. The alink attribute defines a color for active link text--one that is currently selected by the user and is under the mouse cursor with the mouse button depressed.
Interestingly, Netscape is the only browser that actually defines a separate color for alink text, so it's the only browser for which the alink attribute to the <body> tag applies; the others, including Internet Explorer, ignore it.
Like text color, you should be careful to select link colors that can be read against the document background. Moreover, the link colors should be different from the regular text as well as from each other.
Peculiar to Internet Explorer, the leftmargin attribute extension for the <body> tag lets you indent the left margin relative to the left edge of the browser's window, much like a margin on a sheet of paper. Other browsers ignore this attribute and normally left-justified body content abuts the left edge of the document window.
The value of the leftmargin attribute is the integer number of pixels for that left-margin indent; a value of 0 is the default. The margin is filled with the background color or image.
For example, Internet Explorer renders the following text justified against a margin 50 pixels away from the left edge of the browser window (Figure 5-21):
<body leftmargin=50> Internet Explorer lets you indent the<br> <--left margin<br> away from the left edge of the window. </body>
Like leftmargin, the topmargin attribute extension currently is exclusive to Internet Explorer. It may be included in the <body> tag to set a margin of space at the top of the document. The margin space is filled with the document's background color or image.
Body content begins flowing below the integer number of pixels you specify as the value for topmargin; a value of 0 is the default.

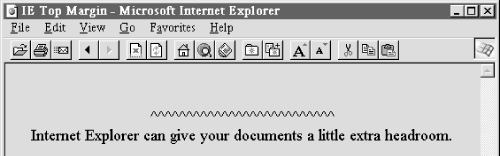

For example, Internet Explorer renders the following text at least 50 pixels down from the top edge of the browser window (Figure 5-22):
<body topmargin=50> <center> ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^ </center> Internet Explorer can give your documents a little extra headroom. </body>
Although background and bgcolor attributes can appear in the same <body> tag, a background image will effectively hide the selected background color unless the image contains substantial portions of transparent color, as we described earlier in this chapter. But even if the image does hide the background color, go ahead and include the bgcolor attribute and some appropriate color value. That's because users can turn off image downloading, which includes background images, and so they may find your page otherwise left naked and unappealing. Moreover, without a bgcolor attribute or a downloaded (for whatever reason) background image, the extended browsers merrily ignore your text and link color attributes, too, reverting instead to its own default values, or the ones chosen by the user.
The various color and image extensions work wonderfully, particularly the colorful ones, assuming that all users have a 256-color display, lots of available memory, unlimited network bandwidth, and good visual acuity. In reality, many users have monochrome or limited color displays, limited memory for caching images, extremely restricted network bandwidth, and poor vision.
Because of these limitations, you should seriously consider not using any of these extensions in your documents. Much like early users of the Macintosh felt compelled to create documents using ransom-note typography (``I've got 40 fonts on this thing, and I'm going to use them all!''), many authors of Netscape- or Internet Explorer-specific documents cannot avoid adding some sort of textured background to every document they create (``I've got 13 wood grains and 22 kinds of marbling, and I'm going to use them all!'').
In reality, except for the very clever ones, texture-mapped backgrounds add no information to your documents. The value of your document ultimately lies in its text and imagery, not the cheesy blue swirly pattern in the background. No matter how cool it looks, your readers are not benefiting and could be losing readability.
We advise you not to use the color extensions except for comparatively frivolous endeavors or unless the extension really adds to the document's value, such as for business advertising and marketing pages.
Here are some of the things that can go wrong with background images:
There also are a slew of problems you will encounter if you play with background colors, including:
There is no denying the fact that these extensions result in some very stunning HTML documents. And they are fun to explore and play with. So, rather than leave this chapter on a sour note of caution, we encourage you to go ahead and play: just play carefully.
