The Xilinx XCoNET (Xilinx Chips on Networks) team in conjunction
with Insight Electronics has partnered to develop a single chip,
very low-cost FPGA based VoIP (Voice over IP) reference design.
The VoIP reference design provides an ideal low-cost platform to
develop VoIP products, such as VoIP phone, Internet intercom, remote
security monitor, Internet based voice recorder. Moreover, the Spartan-II
FPGA can be reconfigured, directly over the Internet, to provide
a field-upgradeable VoIP platform.
![](images/rd_usb_board.jpg)

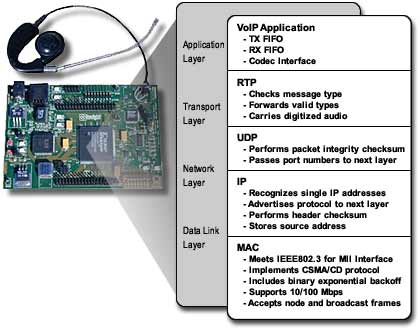

The VoIP kit contains two VoIP reference boards that use
IP based voice streaming to communicate with each other. The
kit also contains the power supply, headset and user guide.
|
Features
- Data Link Layer, Network Layer, Transport Layer and Application
Layer all in a single chip low-cost Spartan-II FPGA
- Highly optimized UDP (User Datagram Protocol) core
- Supports 10/100 Mbps Ethernet
- Spartan-II includes MII (Media Independent Interface) to 10/100
IEEE802.3 physical layer
- RS232 port
- Expansion connectors for user I/Os
Click
here ![](images/pdf_icon.gif)
for documentation on this reference design. Ordering and additional
information is available by registration.
