XC4000XL/XLA

What's New
Success Stories



Optimized for 3.3 volt designs, the Xilinx XC4000X series FPGAs now offer twice the capacity of any previous FPGA while delivering industry-leading system performance. Consisting of the new XC4000XLA and XC4000XV FPGA families, the XC4000X series is an enhanced version of the industry-standard XC4000 architecture.

The XC4000X Series is part of the broad spectrum of Xilinx "XL" products unveiled September 28, 1998. Within the XC4000XL/XLA series, Xilinx offers a broad choice of 3.3 volt and 2.5 volt devices with densities ranging from 800 to 500,000 system gates.

With 12 family members ranging from 30,000 to 500,000 system gates, the devices feature patented SelectRAMTM memory; offering a highly flexible arrangement of logic, single-port or dual-port memory.

Designed in an advanced 0.25 micron process, the XC4000X series delivers industry-leading performance while significantly reducing power consumption.

500,000 System Gates

The XC4000XV family, with up to 500,000 system gates, offers twice the capacity of competitive products.  Plus, you can maintain a high level of performance; efficient clock buffering and abundant, fast, segmented routing gives you the shortest possible interconnect delays.

High Capacity:

  • 30,000 to 500,000 system gates
  • Over 18,000 dedicated flip-flops
  • Over 270,000 RAM bits
  • Up to 448 user I/O
4K System Gates

Unprecedented Performance at High Capacities

I/O Features:
  • Tri-state I/O registers:

  • -  high speed enable/disable
  • FastCLK I/O buffers:

  • -  very fast CLK-to-out, setup and hold
  • 3.3V and 5V PCI-compliant
  • 12mA or 24mA output drive
  • VersaRingTM I/O interface for pin-locking capability
Over 200 MHz Chip-Chip Speeds
4K Chip-Chip Speeds

Architectural Features:
  • SelectRAM memory

  • -  fully synchronous single-port or
       dual-port RAM
  • Segmented routing resources deliver high performance at high capacities
  • More clock buffering

  • -  similar performance, from 30,000
       to 500,000 gates
Over 300 MHz Internal Speeds
4K Internal Speeds

Less than Half the Power Consumption

An XC4000XLA device consumes 50% of the power of the equivalent XC4000XL device.  And the XC4000XV device only consumes 30% of the power.  These savings are derived from efficient design layout, smaller process geometries, and lower operating voltages.


Low Power Consumption:
  • 0.35/0.25 micron 5LM process
  • Efficient design optimized for minimal power consumption
  • Reduced core operating voltage saves power

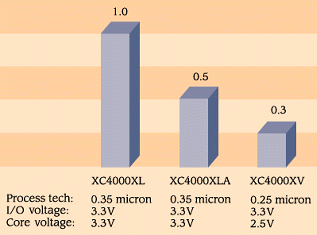

Relative Power Consumption
4K Power

New Software Delivers Very Fast Compile Times

Our new Alliance Series™ and Foundation Series™ version 1.5 software delivers increased performance in less than half the time.  Offered in both Alliance and Foundation platforms, version 1.5 introduces these powerful new tools.

A.K.A.speed Technology

  • Graphical Constraints Editor
  • Voltage and Temperature Pro-rating
  • Minimum Timing Delays
  • Graphical Floorplanner

50% Faster Compile Times

Alliance and Foundation Series

  • Powerful timing-driven placement and routing
  • Static time verification
  • Dramatic productivity gains using the CORE Generator system for automatic logic generation
  • Highest performance with industry-leading synthesis vendors
  • Industry standard interfaces:  VHDL, Verilog, EDIF, SDF

XC4000XLA Family Table 1 of 2

  XC4013XLA XC4020XLA XC4028XLA XC4036XLA
Logic Cells 1,368 1,862 2,432 3,078
System Gates 10-30K 13-40K 18-50K 22-65K
Max. RAM Bits 18,432 25,088 32,768 41,472
User I/O 192 224 256 288
Packages PQ160 PQ160 HQ160 HQ160
  PQ208 PQ208 HQ208 HQ208
  PQ240 PQ240 HQ240 HQ240

  BG256 BG256 BG256
      BG352 BG352

      BG432


 XC4000XLA FamilyTable 2 of 2

  XC4044XLA XC4052XLA XC4062XLA XC4085XLA
Logic Cells 3,800 4,598 5,472 7,448
System Gates 27-80K 33-100K 40-130K 75-200K
Max. RAM Bits 51,200 61,952 73,728 100,352
User I/O 320 352 384 448
Packages HQ160 HQ160 HQ160 HQ160
  HQ208 HQ208 HQ208 HQ208
  HQ240 HQ240 HQ240 HQ240
  HQ304 HQ304 HQ304 HQ304

  BG352 BG352 BG352 BG352

BG432 BG432 BG432 BG432
    BG560 BG560 BG560

XC4000XL Family Table 1 of 2



XC4002XL XC4005XL XC4010XL XC4013XL XC4020XL XC4028XL
Logic Cells
152
466
950
1,368
1,862
2,432
System Gates
1.5-4K
3-10K
7-20K
10-30K
13-40K
18-50K
Max. RAM Bits
2,048
6,272
12,800
18,432
25,088
32,768
User I/O
64
112
160
192
224
256
Packages
PL84
PL84
PL84




PQ100
PQ100
PQ100





PQ160
PQ160
PQ160
PQ160



PQ208
PQ208
PQ208
PQ208





PQ240
PQ240







HQ160






HQ208






HQ240






 HQ304

VQ100
VQ100






TQ144
TQ144






TQ176







HT144
HT144





HT176
HT176




BG256
BG256
BG256
BG256






BG352




















PG299






















XC4000XL Family Table 2 of 2



XC4036XL XC4044XL XC4052XL XC4062XL XC4085XL
Logic Cells
3,078
3,800
4,598
5,472
7,448
System Gates
22-65K
27-80K
33-100K
40-130K
55-180K
Max. RAM Bits
41,472
51,200
61,952
73,728
100,352
User I/O
288
320
352
384
448
Packages






























HQ160
HQ160




HQ208
HQ208




HQ240
HQ240
HQ240
HQ240


 HQ304
HQ304
HQ304
HQ304






































BG352
BG352




BG432
BG432
BG432
BG432
BG432



BG560
BG560
BG560







PG411
PG411
PG411






PG475






PG559
