Constraint file format by family

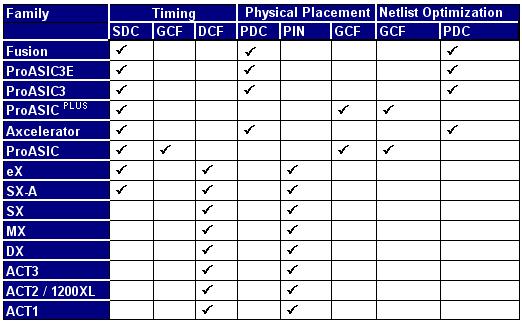

Use the File Format by Family table to see which file formats apply to each type of constraint and each device family. Click the name of a file format type in the table for more information about it.



SDC - Synopsys Design Constraints

PDC - Physical Design Constraints for ProASIC3E, ProASIC3, and Axcelerator

GCF - Design Constraints Format for ProASICPLUS and ProASIC

DCF - Actel Design Constraints Format

PIN - Pin location constraints
