How do I specify a bidirectional I/O in my schematic?

Record #1681
Problem Title:
How do I specify a bidirectional I/O in my schematic?

Problem Description:
Urgency: Standard

From schematic entry, how do you create a bidirectional I/O?

Solution 1:

In order to create a bidirectional I/O, you must place an
IOPAD in your schematic and connect to this pad the input
of an input element such as an IBUF or IFD and the output of
a tri-stateable output element such as the OBUFT, OBUFE,
OFDE, OFDT, etc.

For Example :

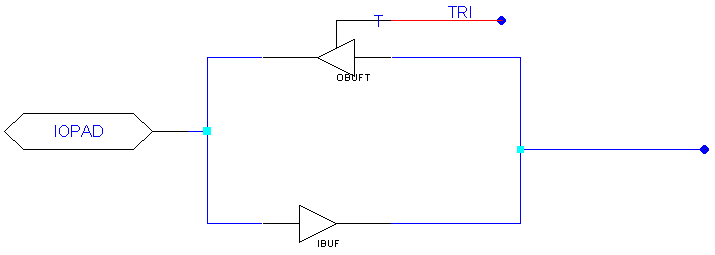

Example Bidirectional I/O

End of Record #1681 - Last Modified: 02/14/00 09:37
