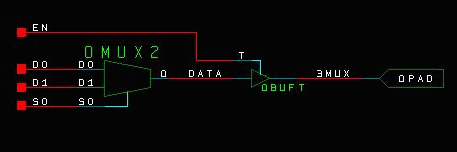

Answers Database 4000EX: Can I use a tri-state buffer (OBUFT) with the Output MUX (OMUX2)? Record #1788 Problem Title: 4000EX: Can I use a tri-state buffer (OBUFT) with the Output MUX (OMUX2)? Problem Description: Can I tri-state an output MUX (OMUX) signal? Solution 1: Yes you can have a tri-stated output MUX signal. The connections are : OMUX2 -> OBUFT -> OPAD Tri-stated OMUX connections End of Record #1788 - Last Modified: 06/06/97 17:29
