A1.4/F1.4: Some figures in the 1.4 Hardware User Guide are incorrect


Record #3403

Product Family: Documentation

Product Line: FPGA Core

Product Part: Hardware User Guide

Problem Title:
A1.4/F1.4: Some figures in the 1.4 Hardware User Guide are incorrect


Problem Description:
Urgency: Standard

General Description:

Figures 1-4, 2-1, 3-1, 3-3, 3-4, 3-5, 3-7, 3-8 and 3-9 in the
A1.4/F1.4 Hardware User Guide are incorrect.


Solution 1:

The corrected figures are now available in the GIF format.

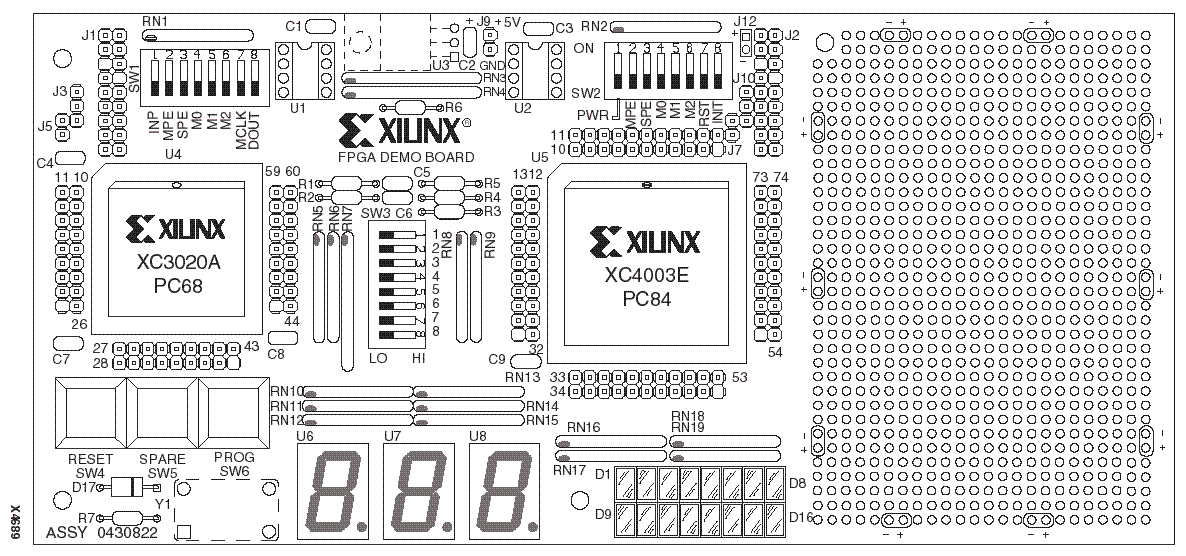

Figure 1-4:

FPGA Demonstration Board Component Layout
FPGA Demonstration Board Component Layout

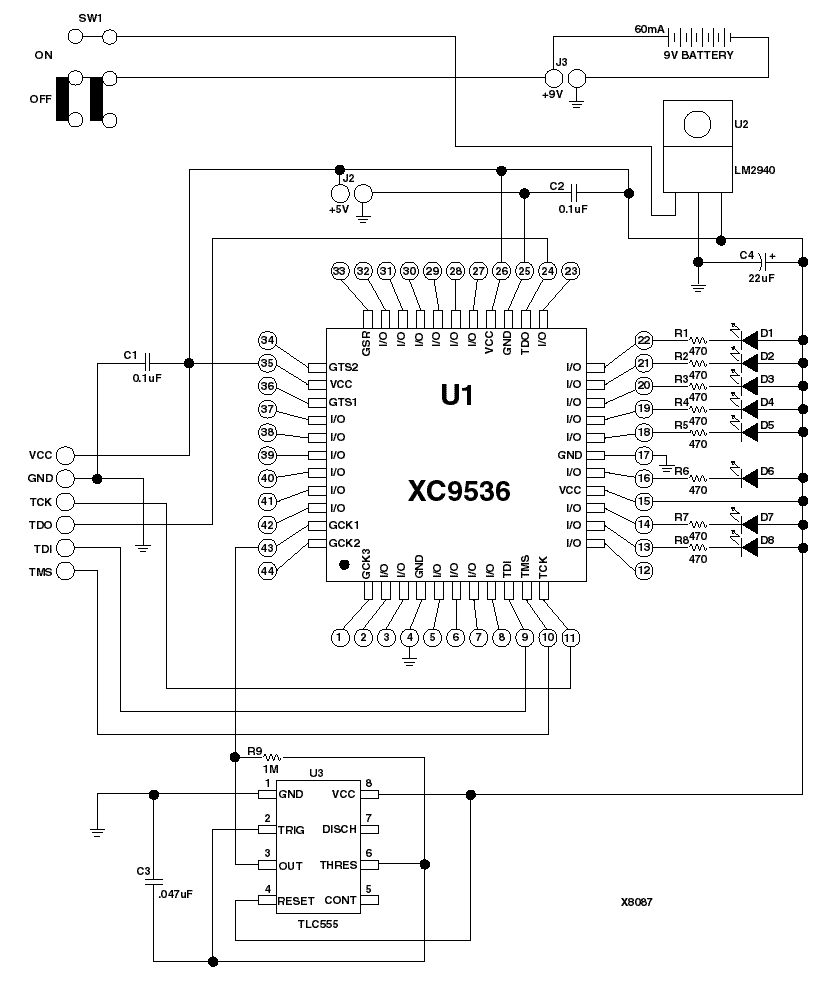

Figure 2-1:
ISP Demo Board
ISP Demo Board

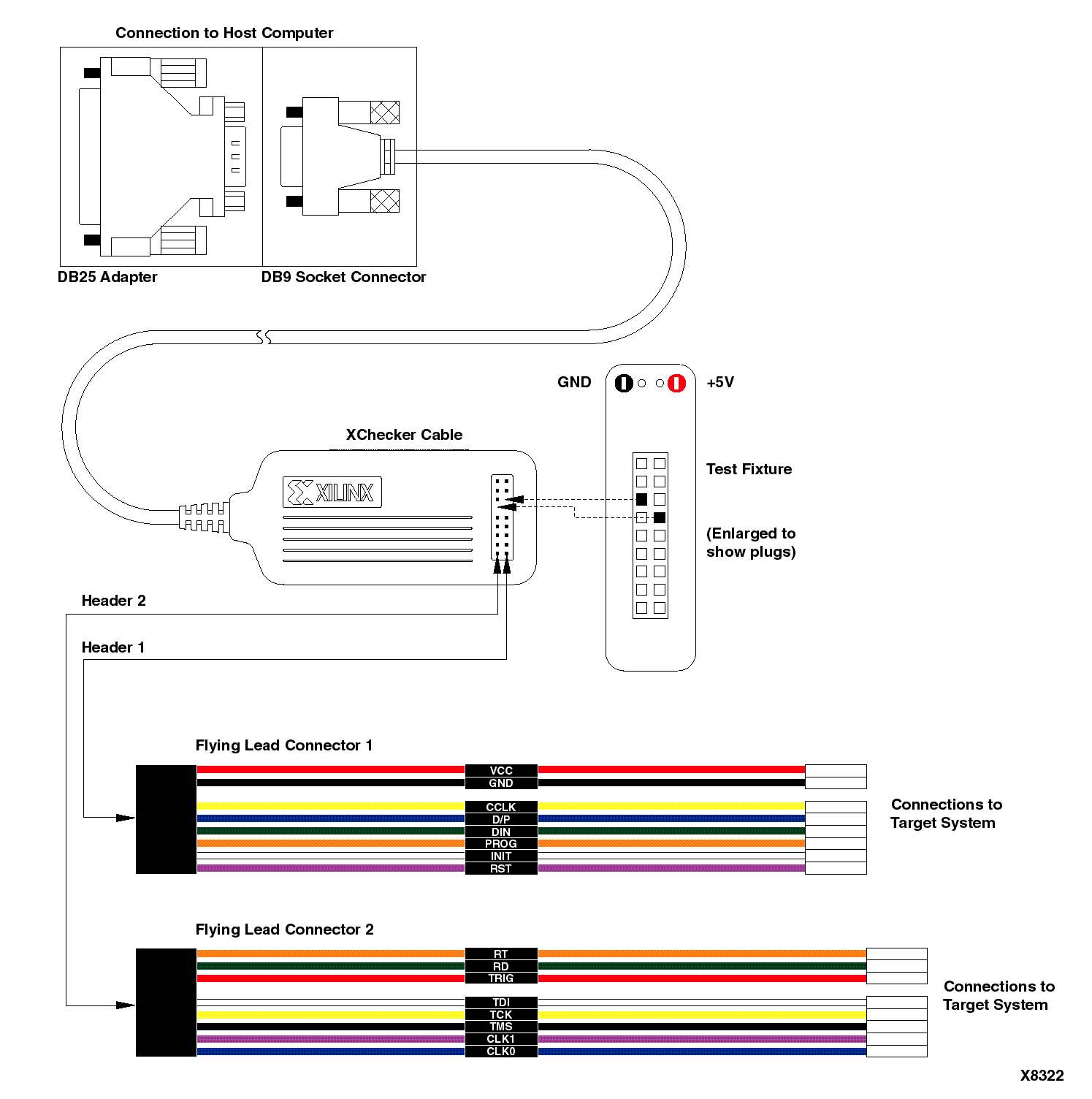

Figure 3-1:
Xchecker Cable and Flying Leads
Xchecker Cable and Flying Leads

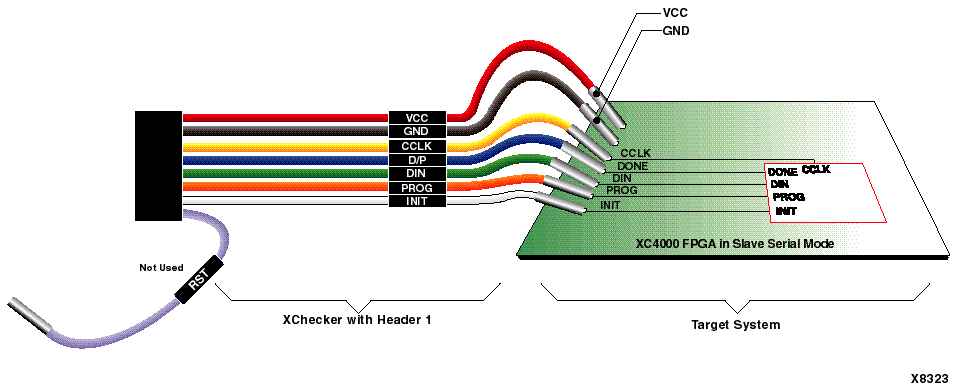

Figure 3-3:
Xchecker Connections to XC4000 Device
Xchecker Connections to XC4000 Device

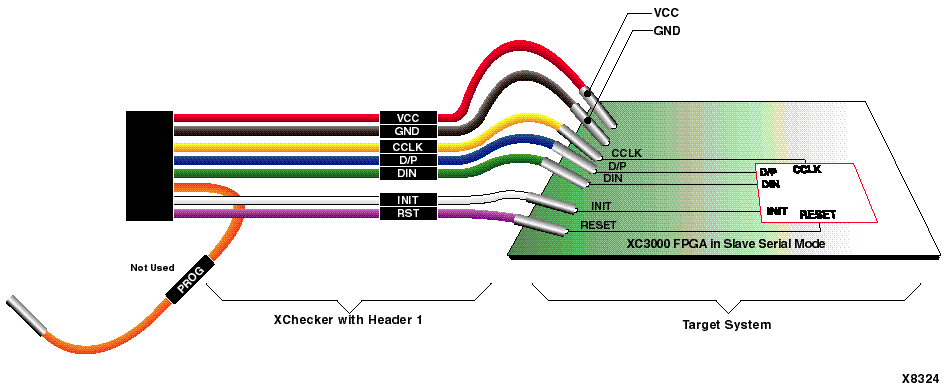

Figure 3-4:
Xchecker Connections to XC3000 Device
Xchecker Connections to XC3000 Device

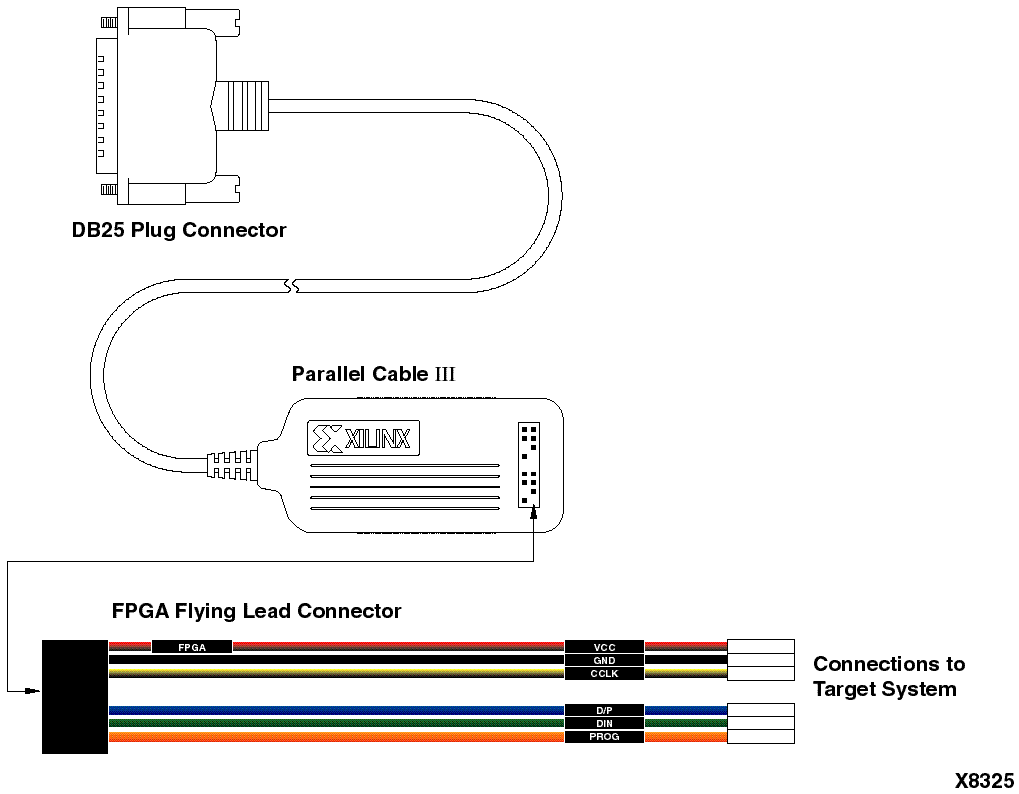

Figure 3-5:
Parallel Cable III & FPGA Flying Leads
Parallel Cable III & FPGA Flying Leads

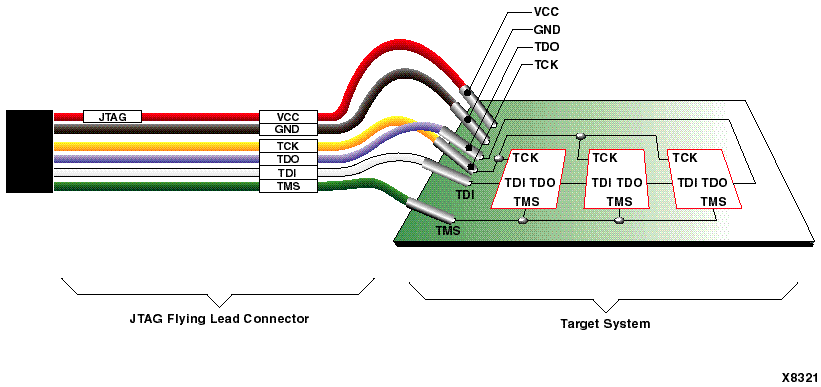

Figure 3-7:
Parallel Cable III Connection to a JTAG Chain of Devices
Parallel Cable III Connection to a JTAG Chain of Devices

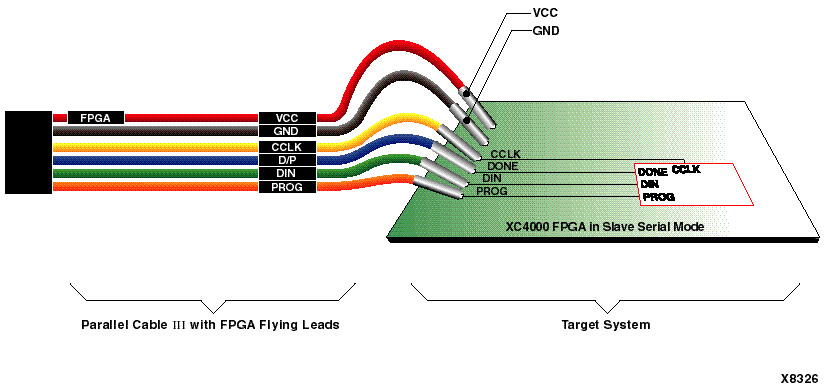

Figure 3-8:
Parallel Cable III Connections to XC4000 Device
Parallel Cable III Connections to XC4000 Device

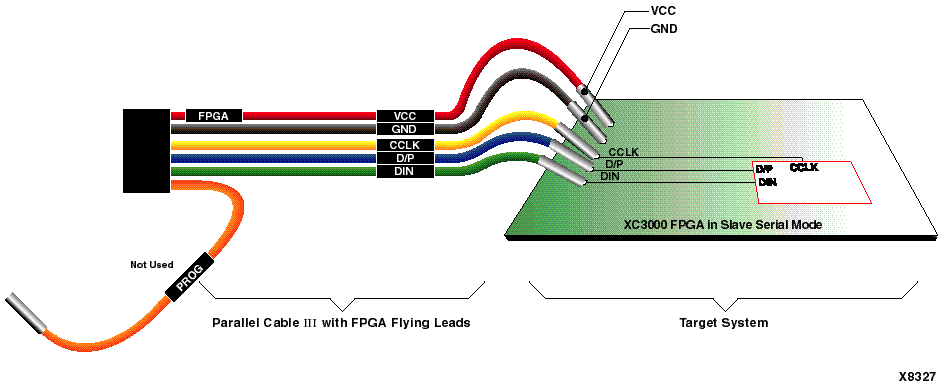

Figure 3-9:
Parallel Cable III Connections to XC3000 Device
Parallel Cable III Connections to XC3000 Device







End of Record #3403 - Last Modified: 02/06/98 14:07
