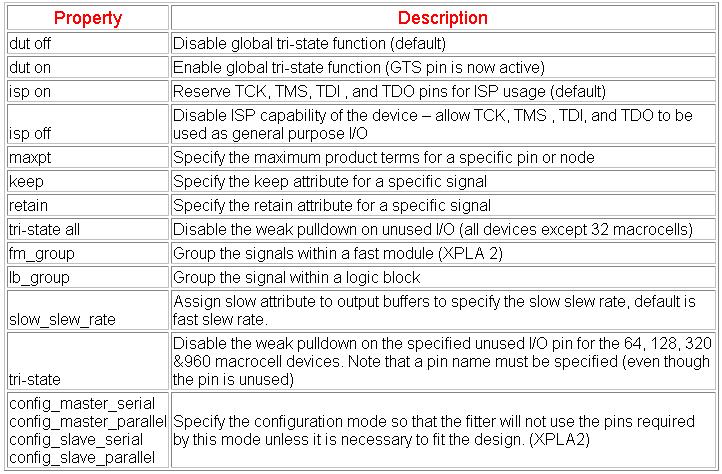

Answers Database XPLA Professional: XPLA Properties. Record #7563 Product Family: Software Product Line: CoolRunner Product Part: XPLA Fitter Problem Title: XPLA Professional: XPLA Properties. Problem Description: Urgency: Standard General Description: What are the XPLA Properties? Solution 1: The property statement specifies information about the design to the compiler and the fitter. Property statements are usually included at the beginning of the PHDL/ABEL file. The following table lists available properties and gives a brief description. XPLA Properties An example of the XPLA Property in use is as follows (please note the spacing): XPLA PROPERTY 'dut on'; End of Record #7563 - Last Modified: 10/11/99 16:54
