![](4000XL_files/sm4kxlo.gif) Optimized for 3.3
volt designs, the Xilinx XC4000X series FPGAs now offer twice the capacity
of any previous FPGA while delivering industry-leading system performance.
Consisting of the new XC4000XLA and XC4000XV FPGA families, the XC4000X
series is an enhanced version of the industry-standard XC4000
architecture.
The XC4000X Series is part of the broad spectrum of Xilinx "XL"
products unveiled September 28, 1998. Within the XC4000XL/XLA series,
Xilinx offers a broad choice of 3.3 volt and 2.5 volt devices with
densities ranging from 800 to 500,000 system gates.
With 12 family members ranging from 30,000 to 500,000 system gates, the
devices feature patented SelectRAMTM memory; offering a highly
flexible arrangement of logic, single-port or dual-port memory.
Designed in an advanced 0.25 micron process, the XC4000X series
delivers industry-leading performance while significantly reducing power
consumption.
500,000 System Gates
The XC4000XV family, with up to 500,000
system gates, offers twice the capacity of competitive
products. Plus, you can maintain a high level of performance;
efficient clock buffering and abundant, fast, segmented routing
gives you the shortest possible interconnect delays.
High
Capacity:
- 30,000 to 500,000 system gates
- Over 18,000 dedicated flip-flops
- Over 270,000 RAM bits
- Up to 448 user I/O
|
![4K System Gates](4000XL_files/4ksystemgates.gif) |
Unprecedented Performance at High Capacities
I/O Features:
- Tri-state I/O registers:
- high speed
enable/disable
- FastCLK I/O buffers:
- very fast CLK-to-out, setup
and hold
- 3.3V and 5V PCI-compliant
- 12mA or 24mA output drive
- VersaRingTM I/O interface for
pin-locking capability
|
Over 200 MHz Chip-Chip
Speeds
|
Architectural Features:
- SelectRAM memory
- fully synchronous single-port
or dual-port RAM
- Segmented routing resources deliver high performance at high
capacities
- More clock buffering
- similar performance, from
30,000 to 500,000 gates |
Over 300 MHz Internal
Speeds
|
Less than Half the Power Consumption An XC4000XLA device consumes 50% of the power of the
equivalent XC4000XL device. And the XC4000XV device only consumes
30% of the power. These savings are derived from efficient design
layout, smaller process geometries, and lower operating voltages.
Low Power Consumption:
- 0.35/0.25 micron 5LM process
- Efficient design optimized for minimal power consumption
- Reduced core operating voltage saves power
|

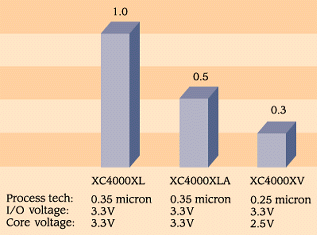

Relative Power Consumption
|
New Software Delivers Very Fast Compile Times
Our new Alliance Series™ and Foundation Series™ version 1.5 software
delivers increased performance in less than half the time. Offered
in both Alliance and Foundation platforms, version 1.5 introduces these
powerful new tools. A.K.A.speed
Technology
- Graphical Constraints Editor
- Voltage and Temperature Pro-rating
- Minimum Timing Delays
- Graphical Floorplanner
|
Alliance and Foundation Series
- Powerful timing-driven placement and routing
- Static time verification
- Dramatic productivity gains using the CORE Generator system
for automatic logic generation
- Highest performance with industry-leading synthesis vendors
- Industry standard interfaces: VHDL, Verilog, EDIF, SDF
| XC4000XLA Family Table 1 of 2
|
XC4013XLA |
XC4020XLA |
XC4028XLA |
XC4036XLA |
Logic
Cells |
1,368 |
1,862 |
2,432 |
3,078 |
System
Gates |
10-30K |
13-40K |
18-50K |
22-65K |
Max. RAM
Bits |
18,432 |
25,088 |
32,768 |
41,472 |
User
I/O |
192 |
224 |
256 |
288 |
Packages |
PQ160 |
PQ160 |
HQ160 |
HQ160 |
|
PQ208 |
PQ208 |
HQ208 |
HQ208 |
|
PQ240 |
PQ240 |
HQ240 |
HQ240 |
|
|
|
|
|
|
BG256 |
BG256 |
BG256 |
|
|
|
|
BG352 |
BG352 |
|
|
|
|
BG432 |
|
|
|
|
|
XC4000XLA FamilyTable 2 of 2
|
XC4044XLA |
XC4052XLA |
XC4062XLA |
XC4085XLA |
Logic
Cells |
3,800 |
4,598 |
5,472 |
7,448 |
System
Gates |
27-80K |
33-100K |
40-130K |
75-200K |
Max. RAM
Bits |
51,200 |
61,952 |
73,728 |
100,352 |
User
I/O |
320 |
352 |
384 |
448 |
Packages |
HQ160 |
HQ160 |
HQ160 |
HQ160 |
|
HQ208 |
HQ208 |
HQ208 |
HQ208 |
|
HQ240 |
HQ240 |
HQ240 |
HQ240 |
|
HQ304 |
HQ304 |
HQ304 |
HQ304 |
|
|
|
|
|
|
BG352 |
BG352 |
BG352 |
BG352 |
|
BG432 |
BG432 |
BG432 |
BG432 |
|
|
BG560 |
BG560 |
BG560 |
XC4000XL Family Table 1 of 2
|
XC4002XL |
XC4005XL |
XC4010XL |
XC4013XL |
XC4020XL |
XC4028XL |
Logic Cells |
152 |
466 |
950 |
1,368 |
1,862 |
2,432 |
System Gates |
1.5-4K |
3-10K |
7-20K |
10-30K |
13-40K |
18-50K |
Max. RAM Bits |
2,048 |
6,272 |
12,800 |
18,432 |
25,088 |
32,768 |
User I/O |
64 |
112 |
160 |
192 |
224 |
256 |
Packages |
PL84 |
PL84 |
PL84 |
|
|
|
|
PQ100 |
PQ100 |
PQ100 |
|
|
|
|
|
PQ160 |
PQ160 |
PQ160 |
PQ160 |
|
|
|
PQ208 |
PQ208 |
PQ208 |
PQ208 |
|
|
|
|
|
PQ240 |
PQ240 |
|
|
|
|
|
|
|
HQ160 |
|
|
|
|
|
|
HQ208 |
|
|
|
|
|
|
HQ240 |
|
|
|
|
|
|
HQ304 |
|
VQ100 |
VQ100 |
|
|
|
|
|
|
TQ144 |
TQ144 |
|
|
|
|
|
|
TQ176 |
|
|
|
|
|
|
|
HT144 |
HT144 |
|
|
|
|
|
HT176 |
HT176 |
|
|
|
|
BG256 |
BG256 |
BG256 |
BG256 |
|
|
|
|
|
|
BG352 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PG299 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
XC4000XL Family Table 2 of 2
|
XC4036XL |
XC4044XL |
XC4052XL |
XC4062XL |
XC4085XL |
Logic Cells |
3,078 |
3,800 |
4,598 |
5,472 |
7,448 |
System Gates |
22-65K |
27-80K |
33-100K |
40-130K |
55-180K |
Max. RAM Bits |
41,472 |
51,200 |
61,952 |
73,728 |
100,352 |
User I/O |
288 |
320 |
352 |
384 |
448 |
Packages |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HQ160 |
HQ160 |
|
|
|
|
HQ208 |
HQ208 |
|
|
|
|
HQ240 |
HQ240 |
HQ240 |
HQ240 |
|
|
HQ304 |
HQ304 |
HQ304 |
HQ304 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BG352 |
BG352 |
|
|
|
|
BG432 |
BG432 |
BG432 |
BG432 |
BG432 |
|
|
|
BG560 |
BG560 |
BG560 |
|
|
|
|
|
|
|
PG411 |
PG411 |
PG411 |
|
|
|
|
|
|
PG475 |
|
|
|
|
|
|
PG559 | |
|
|
