Complete Solutions for Cost-Effective 32-bit PCI
and CompactPCI Designs


Xilinx provides the industry's only solution that integrates the PCI interface, FIFOs, and user-logic on one FPGA at a lower price than inflexible standard PCI chips.

    Proven PCI32 core designs for Xilinx Virtex, Spartan, Spartan XL, and 4000XLA FPGA families

    Xilinx PCI32 Design Kit including LogiCORE PCI designs,Reference designs, prototyping board, and software driver development tools


LogiCORE PCI32 Virtex

The LogiCORE PCI32 Virtex interfaces from Xilinx enables designers to implement a 32-bit, 33 MHz PCI interface in a Standard Virtex FPGA, fully compliant with the v2.2 PCI specification, supporting a sustained throughput of 132 MB/sec.

LogiCORE PCI32 Spartan & Spartan XL

The LogiCORE PCI32 Spartan and Spartan XL Master/Slave interfaces enable designers to integrate a fully compliant PCI interface with dual-port FIFOs and user logic in one FPGA device at a price below standard PCI chips. Because Xilinx PCI solution eliminates the need for external FPGAs in the system, the cost can be reduced by $7 per board in volume production.



Figure 1: Cost of Xilinx PCI compared to a standard chip solution with an external FPGA

LogiCORE PCI32 4000

The LogiCORE PCI32 4000 products are targeted to Xilinx 4000XLA FPGA family. This solution provides the customer with additional density and flexibility. For example, in the XC4062XLA, a user has up to 130,000 gates behind the PCI interface for custom functionality.

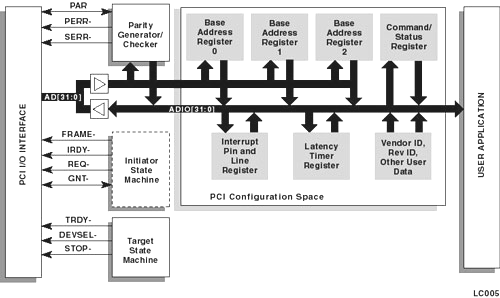

Figure 2: LogiCORE PCI Block Diagram

Key Features

  • LogiCORE PCI32 Virtex is targeted to Xilinx Virtex FPGAsNew
  • LogiCORE PCI32 Spartan is targeted to Xilinx Spartan and Spartan XL FPGAs
  • LogiCORE PCI32 4000 is targeted to Xilinx XC4000XLA FPGAs
  • Fully V2.2 PCI compliant 32-bit, 33 MHz Master and Slave functionality
  • Zero wait-state burst transactions
  • Incorporates Xilinx Smart-IP technology for guaranteed timing and maximum flexibility
  • Fully verified for best ease-of-use and shortest development time
  • Modular architecture to facilitate easy customization
  • Supports scalable, dual-port, on-chip FIFOs with simultaneous read and write
  • Configurable and downloadable from the web


Xilinx PCI32 Design Kit

Xilinx provides a complete PCI Design Kit to reduce the learning curve and the design development time. By forming a partnership with Virtual Computer Corporation, leading provider of rapid prototyping boards and reconfigurable computing systems, and Compuware Numega, formerly, Vireo Software, leading provider of device driver tools, our customers will always have access to the best industry expertise.

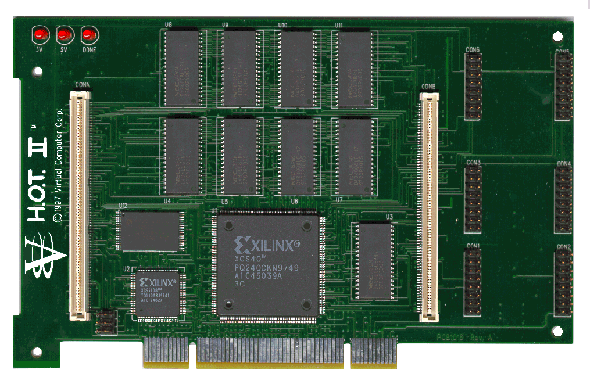

Figure 3: HotPCI Spartan Prototyping Board
Click here to view
Table 1: Xilinx PCI32 Design Kit - content

Vendor

Items



  • LogiCORE PCI32 M/S Interfaces
  • Reusable PCI Bridge Reference Designs
  • Documentation including PCI System Architecture reference book

NuMega logo

  • Full-featured driver development tool for Windows 95/98/NT (1
  • Reference Drivers (Win 95/98/NT)
  • $200 Voucher for unrestricted license (from Numega)



  • HotPCI Spartan 32-bit prototyping board
  • Demo SW


Note 1: Development license. Numega provides an unrestricted license for driver distribution

Key Features

  • Complete solution for PCI system development
  • Facilitates rapid development and prototyping of compliant PCI systems
  • DriverWorks development tools from Numega
    • Windows 98 and NT support
    • Interactive GUI Wizard
    • Runs in conjunction with the Microsoft Visual C++ 4.2 and later.
  • VtoolsD from Numega
    • Windows 95, 98, and 3.X Support
    • Interactive GUI Wizard
    • Works with MS or Borland C/C++ compilers
    • More than 50 sample drivers
  • HotPCI Spartan Prototyping Board
    • 5 V PCI 2.1 Compliant
    • Xilinx Spartan XCS40-4
    • 8x128K bytes of fast SRAM
    • Configuration Flash 128KB
    • Programmable Clock Generator
    • Mezzanine Connectors for daughter cards
    • Reconfigurable from PCI bus



Remaining Resources

Included in

Device

Package

Available Gates

Available IOs

PCI32 Spartan
DO-DI-PCI32-S
PCI32 Design Kit
DO-DI-PCI32-DK
XCV300

BG432

260,000

263



X

XCS20XL

TQ144

5,000

60

X

X

XCS30XL

PQ208,
PQ240

15,000

107
141

X

X

XCS40XL

PQ208,
PQ240

25,000

107
141

X

X

XCS30

PQ208,
PQ240

15,000

107
141

X

X

XCS40

PQ208,
PQ240

25,000

107
141

X

X

XC4013XLA

PQ208,
PQ240

15,000

99



X

XC4028XLA

PQ240

35,000

133



X

XC4062XLA

PQ240,
BG432

124,000

133
293



X
