Using Xilinx Programmable Logic with High Speed Printers

Application Note



Introduction

The underlying goal of this document is to introduce designers to the value that Xilinx Programmable Logic can provide to the world of printers.  The approach we will take here is to basically build up the functionality needed to make a mainstream ink jet printer, so the required functionality is identified, and the performance improvement is understood for each refinement.  At the end of the process, we will outline a more ambitious solution by embedding our work into the framework of MultiFunction Peripherals, a rapidly emerging market frontier.

Overview

Most of today's printers have substantial onboard intelligence, to perform various data decompression and refinement operations and off-load the host processor.  However, extremely low cost models still rely on the host processor doing the compute intensive operations, hence, they slow down substantially for elaborate text fonts or dramatic graphic images. We begin the design overview by outlining the tasks to be performed and show several design tradeoffs that move the intelligence from the host into the printer controller.  We will also discuss the nature of the added refinements, so hardware and software requirements are appreciated by the reader.

Today's printer manufacturers cover a large number of companies.  Apple, Brother, Canon, Epson, Hewlett-Packard, Lexmark and Okidata are large ones, but just a few of them.  Many of them supply ASICs, print engines and toners to the others.  Today, most of them have embraced microprocessors/controllers in the heart of their systems.  In the past, the Intel i960 was a strong embedded controller in printers.  After that, the Motorola 68000 family was prevalent.  Lately, the Motorola ColdFire family of RISC machines and the Advanced RISC Machine (ARM) processors have become very popular.

One reason both ColdFire and ARM architectures have been popular is that both fit the System On a Chip (SOC) processing model.  In this situation, a single chip performs computation and storage, with negligible external support.  Both architectures include a processor core surrounded with substantial peripheral control circuitry to greatly reduce, but not entirely eliminate, the need for additional "glue" logic to attach memory modules or bus interface circuitry.  Both processors operate at reasonable speeds and have substantial power control circuitry to also fit the Energy Star model of good power management.  The ARM architecture also has the added feature of being a well supported hard "core" that is included in a large number of compute intensive ASSP solutions, some of which will be mentioned later.

Before describing the solutions in more detail, let's examine the basic tasks that will be needed for all the solutions.  Then, we can best see exactly how placing the intelligence in the printer offloads the host.

To begin, assume a file exists on the host and needs to be printed.  The host must drive the data out the I/O port (typically the parallel port) and into the printer (via a Centronics or Bitronics IEEE 1284 connector/protocol).  If the design is simple, the data must arrive in pre-formatted condition to be forwarded directly to the print engine controller.  Specifically, it needs to already resemble video data with explicit carriage returns, nozzle identification, dithering, edge enhancement, high level motor controls, etc.  The printer controller chip we will use here is the Conexant PIF-LM1.   The PIF-LM1 is designed to attach directly to the print engine and supply signals to stepper and DC motor drivers, the print head drivers, the host system, print head position optical encoder and General Purpose I/O (GPIO) ports for paper sensing, print head power management, etc.  Figure 1 shows the block diagram level of interface for the PIF-LM1.  It will be used for subsequent examples, so let's examine it now.

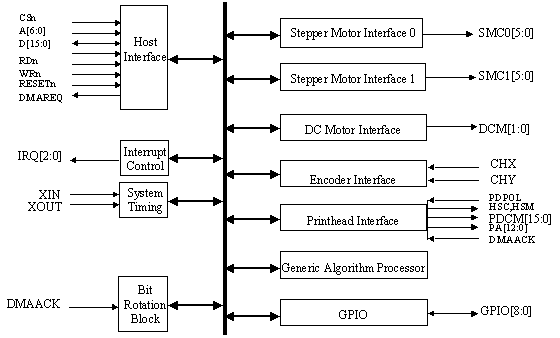

 Figure 1: Architectural View of the Conexant PIF-LM1 ink jet ASSP chip

 Figure 1:  Architectural View of the Conexant PIF-LM1 ink jet ASSP chip

Basic features for the PIF-LM1 include the following:

  • Resolution selection: single head 300, 600 dpi; dual head 600 X 600, 1200 X 600, 1200 X 1200 dpi
  • 8/16 bit processor interface
  • Programmable interrupt control
  • DC Motor control with pulse width modulated speed control
  • Dual stepper motor control
  • Optical print head encoder control
  • Consecutive Dot Elimination (CDE) for draft printing
  • Programmable print dithering function (mono or color)
  • Programmable fire delay
  • Programmable nozzle fire
  • The generic algorithm processor handles tasks like PID control, programmable interrupt and arithmetic calculations
  • Bit rotation block permits bidirectional printing, nozzle pitch and number configuration.

Basically, the ordinary housekeeping tasks needed for ink jet management are handled with the PIF-LM1.  For brevity, we will refer to the PIF-LM1 as the "PIF".  Figure 2 shows how the PIF interacts in a simple system.

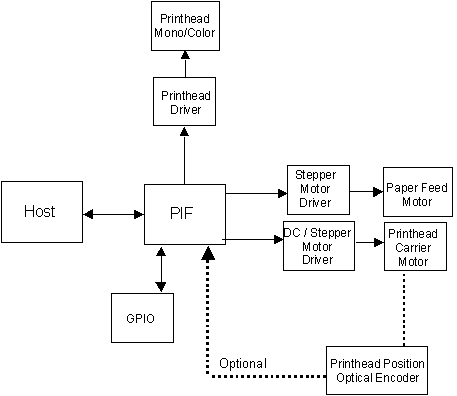

Figure 2: PIF-LM1 Embedded in an Ink Jet Printer System


Figure 2:  PIF-LM1 Embedded in an Ink Jet Printer

From Figure 2, the Host (PC) delivers the bitstream to be printed, with embedded information like end of line, end of page, etc.  The PIF extracts the bitstream and delivers it directly to the print head drivers.  It also identifies the page feed and line feed info and delivers the commands to the corresponding stepper motors.  The PIF handles the direct attachment to the functionality of the printer.  Interfacing the PIF to the host will be the first issue to be addressed.

A Basic Printer Interface

In this version, the host does most of the data management tasks.  Programmable logic is chosen as the interface between the host parallel port and the PIF.  In that sense, it is important that the data be managed so that the PIF "sees" a host instead of just the parallel data port.  The basic task of the PLD is to collect bytes of data, form command and data words for the PIF and create control strobes that drive the information into the printer interface.

Eliminating the additional chips shown in Figure 2 and focusing on the Host interface, we arrive at Figure 3, which shows an XC95144XL assuming the tasks of the "host".

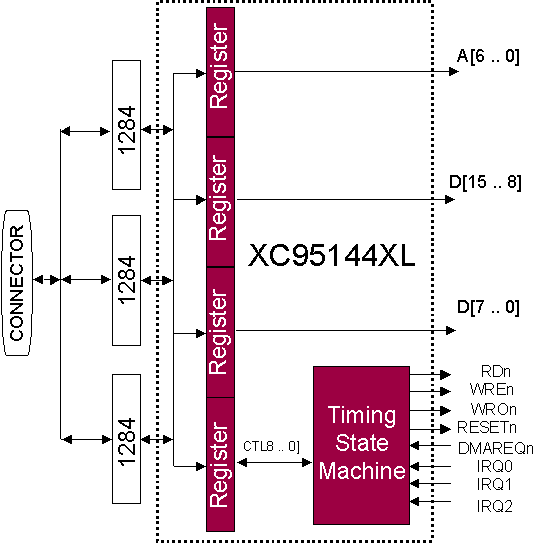

Figure 3: Basic CPLD Interface Solution

Figure 3: Basic CPLD Interface Solution

The direct electrical interface is done with the TI ACT1284 bus interface chips, which meet the exact electrical requirements and provide a high drive buffering capability as well as internal pull-up resistors.  The functionality for the CPLD is basically registering the data taken off the parallel port connector (after buffering) and splitting out address, data and control chunks.  Then, the resulting address / data sets need to be delivered to the PIF chip.  A state machine is inserted to resolve the interface timing differences between the IEEE 1284 timing and the PIF.  Typically, the functionality shown in Figure 3 might occupy a smaller PLD ö say an XC9572XL, but remaining logic can be used to drive LEDs and debounce switches that might be useful for manual intervention.  Figures 4 and 5 show basic data and address protocols for the Enhanced Parallel Port version of the IEEE 1284 specification.

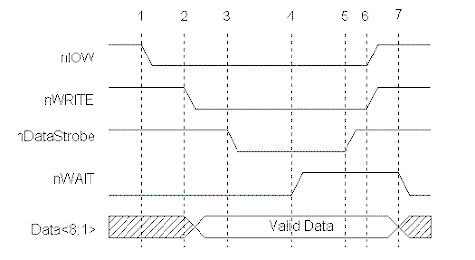

Figure 4: EPP Data Write Cycle

Figure 4:  EPP Data Write Cycle (courtesy Warp Nine Engineering)

The Data Write handshake is very simple.  The nIOW signal, nWrite ,nDataStrobe and nWAIT are all active low.  As nWait rises, the Valid Data transfers.

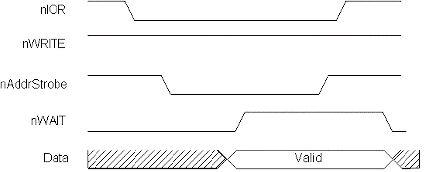

Figure 5: EPP Address Read Cycle

Figure 5:  EPP Address Read Cycle (courtesy Warp Nine Engineering)

In Figure 5, nIOR, nWRITE, nWAIT and nAddrStrobe are all active low.  As shown, the valid data transfer occurs as nWAIT transitions high.  Signal speeds are well within the capabilities of the slowest programmable logic, so timing is not  an issue.

Adding Printer Description Language

Moving intelligence into the printer, dramatically offloads the host PC.  Typically, a PDL is used and either PostScript or PCL is the most natural choice.  Either way, we will insert a ColdFire microprocessor and the current favorite is the MCF5307.  Figure 6 shows how addition of the processor with supporting DRAM and EPROM take local intelligence right into the printer.

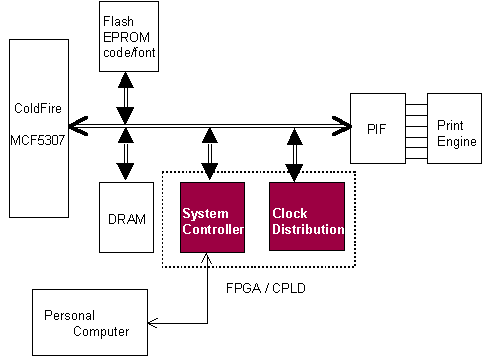

Figure 6: Adding PDL to the Printer Interface


Figure 6:  Adding PDL to the Printer Interface

The ColdFire is particularly complete for interfacing to external DRAM and Flash EPROM modules.  In Figure 6, the programmable logic is relegated to completing the external interface, packing and unpacking the address / data modules and distributing the clocks to the rest of the system.  As well, interface resolution to the PIF is handled by the programmable logic.  The processor deals with the font/code EPROM as well as the larger DRAM memory modules which retain the encoded PDL to be "cracked".

Adding RET and RIP

So what is Resolution Enhancement Technology (RET)? RET is a combination of several techniques, and varies among manufacturers. For instance, large dots can effectively cover paper, but fail to properly deliver adequate visual resolution for detailed graphic images ö or even elaborate text fonts.  By increasing the number of dots and squeezing individual dot sizes down, it is possible to improve the perceived quality of a produced image.  Frequently printer vendors refer to this as reducing the "jaggies".   Simply increasing the dots per inch is one strategy.  Care must be taken to assure that dot bleeding into the media does not negate the advantage attained.

Figure 7 demonstrates this effect where the line drawn on the left models 600 dpi and the one on the right models 300 d.p.i.  In particular, observe the edges of the two lines ö the 300 d.p.i. line has an exaggerated scallop or jagged effect compared to the one on the left.  When delivering the various edges and shapes, RET creates the edges with more dots of smaller size.  Naturally, this "technology" is basically lookup table RAM or ROM blocks loaded with patterns that the design software uses to build up sweeter edges.

Figure 7: Reducing the jaggies

Figure 7:  Reducing the "jaggies" with 2X dpi (left represents 600 dpi, right 300 dpi)

Figure 8 shows the effect of more advanced RET.  Starting with the image on the left side, a series of transformations occur that can produce the image on the right, with greater visual appeal and clarity.  To start, the crosshatched circles are dots that have the fuzzy quality of being "do not care" dots.  It is unclear whether the dots should be dark or light.  By a set of heuristic choices and dot level operations shown in the center blocks, a final result for what gets printed (without the fuzziness) is delivered on the right.  The process combines low level DSP and heuristic choices.

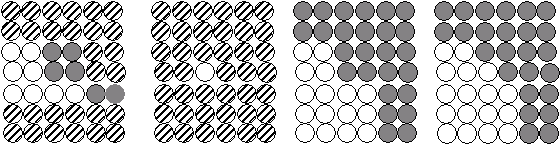

Figure 8: Image Enhancement Transformations
  (a) initial image           (b) transformation 1    (c) transformation 2     (d) enhanced image

Figure 8:  Image Enhancement Transformations

RET requires managing a set of memory structures and finding substitution bit patterns with greater resolution.  It is usually done with a microprocessor and today's choice is frequently the ARM 7 RISC, which is frequently offered as an ASIC standard block.  Hence, with the combination of an ASIC, a microcontroller and additional expense, it is appropriate to keep adding capability.  The current trend is to add Raster Image Processing (RIP), as well.

RIP is usually the last stage in creating the delivered bitstream to the print engine.  RIP involves managing a page or band buffer which holds the actual bitstream delivered to the engine.  RIP is so similar to video signal creation, that the RIP output is usually called video out.  Because page buffering is expensive (i.e., lots of DRAM), software that can effectively create and juggle bit buffers while maintaining data flow from the host are in high demand.  Band memory buffering is the technique of producing smaller strips of information delivered to the engine while more data is being "RIPped".  Figure 9 ties it all together.

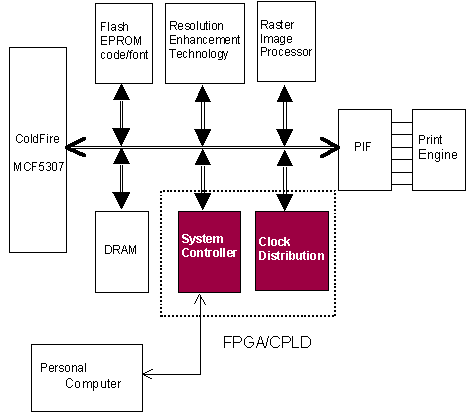

Figure 9: Adding RET and RIP to the basic structure

Figure 9: Adding RET and RIP to the basic structure

Note that the RET and RIP capabilities exist in ASSPs.  One such device is made by Conexant, called the MFC1000. The MFC1000 includes substantial circuitry to actually build up a MultiFunction Peripheral, save the FAX Modem circuitry.  In this situation, a Spartan™-II FPGA does the general interfacing to the PC, the ColdFire, memories, the MFC1000 and the PIF, as well as the usual LED driving and switch debouncing duties.

Going Beyond . . . MultiFunction Peripherals

Adding a microprocessor and memory to the ASSP, along with small amounts of memory and additional timer circuits permits an elaborate extension of the basic printer.  There has been a frustration for some time in Small Office/Home Office (SOHO) environments where the available deskspace occupied by a laser printer, a FAX machine, a scanner and copier are dear.  Recognizing that these processes all either move transducers across paper, or vice versa, it was noted that they have a lot in common.  The MultiFunction Peripheral (MFP) evolved to meet this need in a single package.  Clearly, there will be a tradeoff in that an MFP will not have every bell and whistle that separate units have, but with today's quality being what it is, these devices are irresistible.   Currently priced in the mid-range ink jet printer range (typically $400-500), these devices are "taking off".

Several MFP ASSP parts exist for completing the MFP picture.  Letâs expand on the Conexant solution using the MFC1000 and gluing the rest of the system together with a Spartan FPGA.

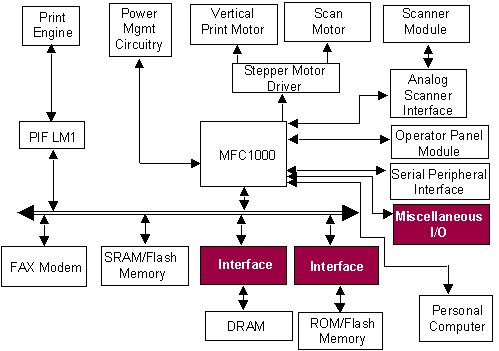

Figure 10: MultiFunction Peripheral Controller

Figure 10:  MultiFunction Peripheral Controller

In Figure 10, the Spartan-II FPGA interfaces the DRAM, the ROM/Flash Memory, the Operator Panel Module, the Serial Peripheral, Miscellaneous I/O and the PC. All these interfaces are very specific to the chosen devices (DRAMs, ROMs, etc.).
