128x32 Block RAM

Sparty's Favorite Recipes 002 Kiss Your ASIC Good-bye!

Ingredients:

  • Any Spartan-II Device
  • 2.1i Development System
  • Nutritional Analysis:

  • Block RAM: 1
  • Instructions

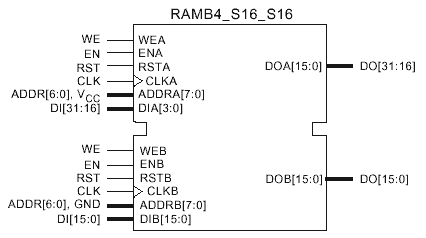

    The true dual-read/write port functionality of the Block SelectRAM+ memory allows a single port, 128 deep by 32-bit wide RAM to be created using a single Block SelectRAM+ cell. Interleaving the memory space, setting the LSB of the address bus of Port A to 1 (VCC ), and the LSB of the address bus of Port B to 0 (GND), allows a 32-bit wide single port RAM to be created.
