Two Single Port RAMs from One Block RAM

Sparty's Favorite Recipes 018 Kiss Your ASIC Good-bye!

Ingredients:

  • Any Spartan-II Device
  • 2.1i Development System
  • Nutritional Analysis:

  • Block RAM: 1
  • Instructions

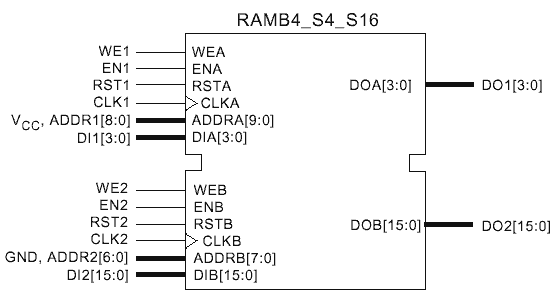

    The true dual-read/write port functionality of the Block SelectRAM+ memory allows a single RAM to be split into two single port memories of 2K bits each. In this example, a 512K x 4 RAM (Port A) and a 128 x 16 RAM (Port B) are created out of a single Block SelectRAM+ structure. The address space for the RAM is split by fixing the MSB of Port A to 1 (VCC ) for the upper 2K bits and the MSB of Port B to 0 (GND) for the lower 2K bits.
