FPGA Configuration: Address Pins A18 - A21 are optional for XC4000EX only


Record #1984

Product Family: Software

Product Line: FPGA Implementation

Product Part: bitgen

Product Version: 1.1.1a

Problem Title:
FPGA Configuration: Address Pins A18 - A21 are optional for XC4000EX only


Problem Description:
Urgency: Standard

General Description:
The Configuration Address Pins A18, A19, A20, A21 are all high at the beginning of a Master Parallel
  configuration.


Solution 1:

Since these lines are optional, they will act like unconfigured IOs until the portion of the bitstre am to activate them is received. This means that A18-A21 will float high at the beginning of config uration. For Master Parallel Up configuration they need to be low from the beginning. This can be accomplished with a pulldown.

The Address Pins A18-21 are only activated by a bitgen option -g addresslines:<value>. The value spe
cifies the total number of address lines to be activated. By default this number is 18. If you wan ted A18 - A21 to be activated the bitgen syntax would be:

bitgen -g addresslines:22



Solution 2:

In order to set the option to activate the upper address lines
from the Design Manager GUI, you will need to perform the
following steps :

1. Create a project for your design.

2. From the Utilities pull-down menu select Template Manager.

3. Select the "xc4000" Family from the top pull down menu and
     then select the "Configuration Template" buttton from the
     Template Manager window.

4. Select the New button and specify a name for your personal
     configuration template.

5. Being sure your template name is selected in the "Template
     List" window and press the "Customize" button.

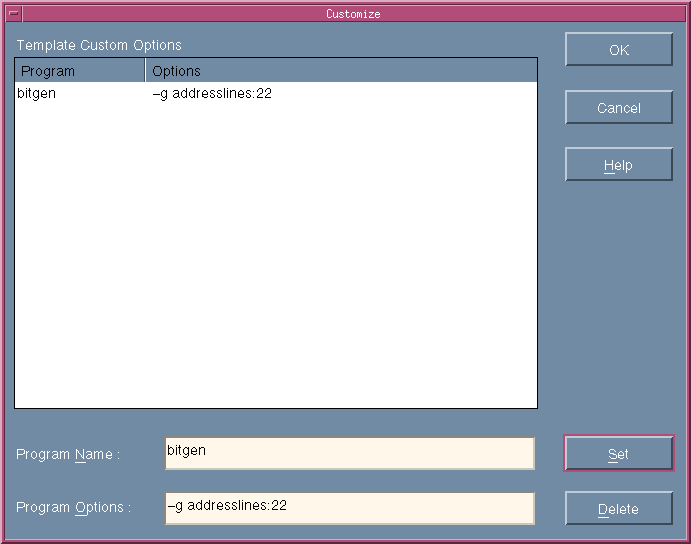

6. Once the Customize window appears, type into the following
     fields (WEBIMAGE 1:Template Manager Customize Window) :

     Program Name : bitgen
     Program Options : -g addresslines:22

7. Press the "Set" button and then select "OK".

8. Press the "Edit" button and select all other configuration
     options you wish to use for your design.

9. Close the Tamplate Manager

10. Implement your design selecteing from the Implement Options
     window the configuration template you have just created.


For more information on the Template Manager consult the
"Design Manager/Flow Engine Refernce/User Guide" from your
Dynatext On-line Document Browser.




End of Record #1984 - Last Modified: 07/13/98 16:07
