NGD2VER/NGD2VHDL: How to create HDL simulation files using Alliance Software for FPGAs?


Record #2703

Problem Title:
NGD2VER/NGD2VHDL: How to create HDL simulation files using Alliance Software for FPGAs?


Problem Description:
Urgency: Standard

General Description:
Simulation files can be created at 4 stages of the FPGA implementation
flow:

       Behavioral (Sythesis only)
       Post-NGDBUILD
       Post-Map Timing
       Post Route Timing

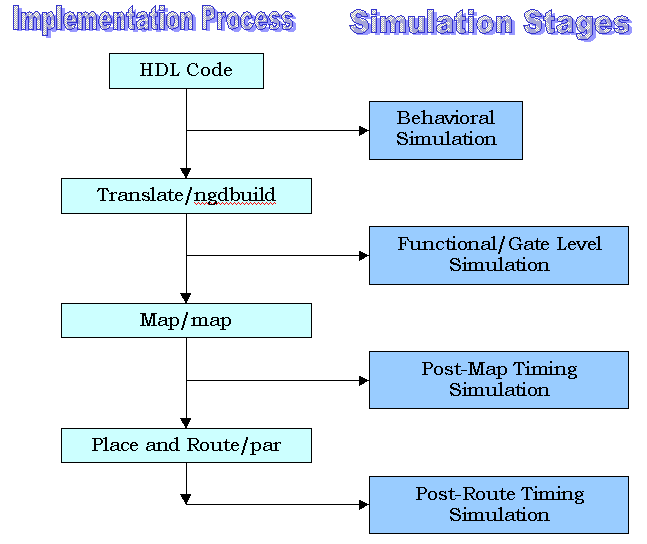

(WEBIMAGE 1: Simulation Stages)


Solution 1:

Behavioral Simulation:

   Behavioral simulation files are generated using tools from your
   behavioral simulator. In most cases you can read the Verilog and
   VHDL files directly into the simulator.

Functional Simulation:

   Functional simulation is a gate level simulation with unit delays.
   For HDL designs, functional simulation can be used to verify
   your design's synthesis. For schematic designs, functional
   simulation can be used to verify the correct behavior of your
   design. For designs that mix HDL components and schematic
   components, functional simulation can be used to verify the
   integration and the overall functionality.

   If you instantiate LogiBLOX components in your design, make sure
   to generate simulation netlists.

   Command Line:

     To generate functional simulation files, use the following command
     line sequence:

      1. ngdbuild <design top-level netlist> -p <part>
      2. ngd2ver <design>.ngd -w <output netlist name>.v
           or
         ngd2edif <design>.ngd -w <output netlist name>.edn
           or
         ngd2vhdl <design>.ngd -w <output netlist name>.vhd
           or
         ngd2xnf <design>.ngd -w <output netlist name>.xnf

     Top level netlist can be EDIF, XNF, of SXNF formats.

     NOTE: You can use the -help <family> option to see how to
        automatically create testbench templates. For example,

        ngd2ver -help xc4000ex

   Graphical Interface:

     Functional simulation files cannot be directly generated through the
     graphical tools. To create functional simulation files:

      1. In the Design Manager, identify the version you want to
         simulate.
      2. Copy the following file to a simulation directory and rename
         it to <design>.ngd

         <design directory>/xproj/<version>/<family>.ngd

      3. Run the command line sequence above.


Post-Map Timing Simulation:

   Post-map simulation is a gate level simulation with real delays
   for the gates and estimated delays for the routing. This simulation
   is useful in determining if there are obvious timing issues in
   your design, without having to spend time completing place and
   route.

   If you have already completed a functional simulation of your design,
   you can more easily determine whether there are obvious timing issues
   by examing the summary in the post-map timing report (Logic Level
   Timing Report in the Report Browser). If the post-map timing report
   reveals some timing issues, you can examine specific paths more
   closely by running the Timing Analyzer on your <map>.ncd file.

   Command Line:

     To create post-map simulation files, use the following command
     line sequence:

      1. ngdanno <mapped>.ncd <mapped>.ngm
      2. ngd2ver <design>.nga -w <output netlist name>.v
           or
         ngd2edif <design>.nga -w <output netlist name>.edn
           or
         ngd2vhdl <design>.nga -w <output netlist name>.vhd
           or
         ngd2xnf <design>.nga -w <output netlist name>.xnf


         ngd2ver will automatically embed the timing information in a
         <output netlist name>.sdf file.

     NOTE: You can use the -help <family> option to see how to
        automatically create testbench templates. For example,

        ngd2ver -help xc4000ex

   Graphical Interface:

     Post-map timing simulation files cannot be directly generated
     through the graphical tools. To create post-map timing
     simulation files:

      1. In the Design Manager, identify the revision you want to
         simulate.
      2. Copy the following file to a simulation directory and rename
         it to <design>.ncd

         <design directory>/xproj/<version>/<revision>/map.ncd

      3. Run the command line sequence above.


Post-Route Timing Simulation:

   Post-Route simulation is a gate level simulation with real delays
   for the gates and real delays for the routing. This
   simulation stage is also useful in verifying that there no design
   specification problems, timing issues, or design implementation
   problems. Bugs are much easier to trace in timing simulation
   than using a logic analyzer.

   If you have already completed a functional simulation of your design,
   you more also determine whether there timing issues
   by examing the summary in the post-route timing report (Post Layout
   Timing Report in the Report Browser). If the post-route timing report
   reveals some timing issues, you can examine specific paths more
   closely by running the Timing Analyzer on your <design>.ncd file.

   Command Line:

     To create post-map simulation files, use the following command
     line sequence:

      1. ngdanno <mapped>.ncd <mapped>.ngm
      2. ngd2ver <design>.nga -w <output netlist name>.v
           or
         ngd2edif <design>.nga -w <output netlist name>.edn
           or
         ngd2vhdl <design>.nga -w <output netlist name>.vhd
           or
         ngd2xnf <design>.nga -w <output netlist name>.xnf


     NOTE: You can use the -help <family> option to see how to
        automatically create testbench templates. For example,

        ngd2ver -help xc4000ex

        ngd2ver will automatically embed the timing information in a
        <output netlist name>.sdf file.


   Graphical Interface:

     Post-route simulation files can be directly generated
     through the graphical tools. To create post-route timing
     simulation files:

      1. In the Options dialog, select Produce Timing Simulation
         Data. You can access the Options dialog from the Flow Engine
         menu by selecting Setup->Options.

      2. In the Options dialog, select the Edit Template button for
         the Implementation Template. In the Implementation Template
         dialog, select the Interface tab.

      3. Select the simulation netlist format: EDIF, VHDL, VERILOG, or
         XNF. If you select EDIF, use the Vendor switch to select
         whether you want to create Viewlogic, Mentor Graphics, or
         Generic version of EDIF.

      4. Select the Correlate Data to Input Design button if you want
         all of your original design signals in your timing simulation
         netlist. Because your design was optimized during the
         implementation process, some of the signals and symbols in
         your original netlist have been optimized out. Selecting
         the Correlate Data option causes the tools to insert optimized
         names into your timing simulation netlist so you can use your
         functional simulation testbench to stimulate your timing
         simulation netlist.

         If you use map -oe or -os command line options, or if you
         set Optimization Strategy = Balance, Speed or Area in the
         Implementation Template, the Correlate Data option will
         not be able to insert all of the optimized names back into
         the timing simulation netlist.

      5. If you select the Verilog or VHLD netlist format, you can
         select the Always Create Power On Reset Port button. This
         will create a port for the global reset signal and connect
         it to the global reset wire. If this option is not selected
         the global reset wire will still exist in the timing
         simulation netlist.

      6. In order to create the simulation files, the Timing step in the
         Flow Engine must be run. After the Timing step completes
         processing, your timing simulation files will be in your design
         directory. They will be called:

		 time_sim.<extension>	   <extension> = xnf, edn, v, vhdl
