Typical I/V Characteristics of XC9500 Outputs


Record #3116

Product Family: Hardware

Product Line: 9500

Product Part: 9500

Problem Title:
Typical I/V Characteristics of XC9500 Outputs


Problem Description:
Urgency: standard

What does a typical 9500 I/V curve look like?


Solution 1:


The I/V characteristic chart below is given as a data point to show a
typical I/V characteristic curve for XC9500 devices. Please note that
all devices in the XC9500 family use the same output driver configuration.

Date:			3/19/97
Device used:		Two XC95108 PC84
Vcc:			5.0v
Temperature:		25 C
Output Slew Rate:	Both Fast and Slow slew rates were programmed into

                each unit for comparison. No difference was observed.

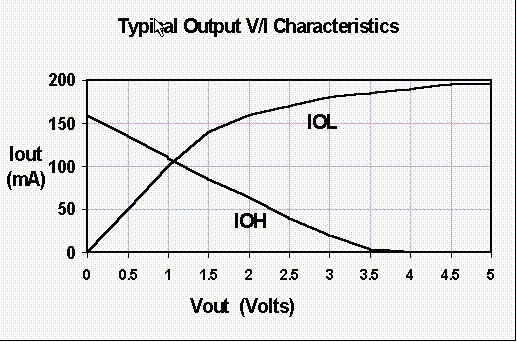

Typical Output I/V Characteristics
Typical Output I/V Characteristics





End of Record #3116 - Last Modified: 04/14/98 15:44
