Implementing an ISDN PCMCIA Modem Using Spartan Devices

December 14, 1999 (Version 1.1)

Application Note: XAPP170



To download a .pdf copy of this Application Note, click here.

Summary

This application note illustrates the use of Spartan devices in an ISDN modem.  The design example shows how cost effective a Spartan device can be in these applications.  While the design is targeted at solving a specific problem, it illustrates solutions to a number of general technical issues.

Xilinx Family

Spartan-XL


Introduction

This application note illustrates the use of Spartan devices in an Integrated Services Digital Network (ISDN) modem.  In this application the Spartan device is used to implement the complex system level glue logic required for the modem's PCMCIA interface.  The Spartan device provides host interface functions for an ISDN U interface controller and includes HDLC framing.  The design example shows how cost effective a Spartan device can be in these applications.

While the design is targeted at solving a specific problem, interfacing an ISDN U interface transceiver to PCMCIA, it illustrates solutions to a number of general technical issues.  These include handling HDLC data streams and interfacing to Time Division Multiplexed (TDM) serial buses.  This document assumes that the reader is familiar with ISDN and PCMCIA technologies.

Overview

A key design objective for this application was the creation of a solution with the lowest possible cost.  In this case the target was a semiconductor bill of materials for the PCMCIA interface that is significantly less than $20 in volume.  A second objective was to simplify the design effort by utilizing as much commercially available Intellectual Property (IP) as possible.

Figure 1 gives an overview of the design.  It consists of an ISDN U-Interface transceiver, the Spartan device, and external memory.  The device that was chosen for the ISDN U-Interface in this application is a Motorola MC145572.  The U-Interface connects to the rest of the design by way of two interfaces.  The IDL interface is a five-wire TDM interface, defined by Motorola, and carries the B and D channel data.  The PCP interface is an eight-bit microprocessor bus interface used to access the internal control and status registers of the U-Interface transceiver.

Figure 1: Simplified ISDN Modem System Block Diagram

Figure 1 Simplified ISDN Modem System Block Diagram  Three external memory devices are connected to the Spartan device.  A serial configuration PROM is used for device initialization.  A 2Kx8 EEPROM is used to store the PCMCIA CIS data structure.  An 8Kx8 SRAM provides buffering for incoming and outgoing ISDN traffic.

Before we examine the functions implemented in the Spartan device, let's get a overview of the device that was chosen for the ISDN U-interface.

Motorola MC145572 ISDN U-Interface Transceiver

The U-Interface transceiver chosen for this design is the Motorola MC145572.  The functions performed by this device can be summarized as follows:

  • Adaptive equalization
  • Data and clock recovery
  • Echo cancellation
  • Physical layer framing

In short, it implements all of the physical layer signal processing functions needed to interface to the wire.  Figure 2 illustrates the functional blocks that make up this device.

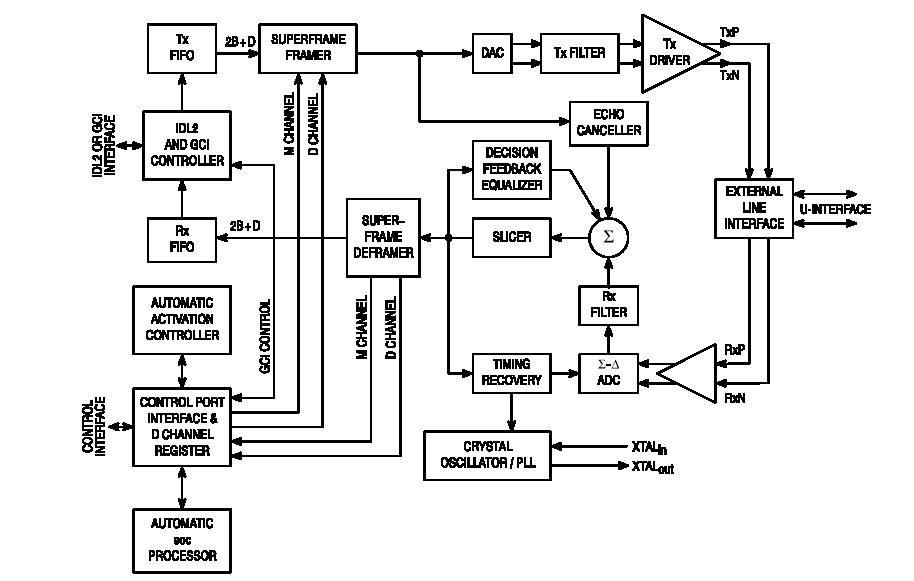

Figure 2: MC145572 Block Diagram


Figure 2 MC145572 Block Diagram Figure Courtesy Motorola

The MC145572 includes three interfaces: the external line interface is coupled to the twisted pair to implement ISDN U-Interface, a serial interface for transferring ISDN data streams, and a control port used to configure the transceiver.

The control port can be configured for either serial or parallel modes of operation.  In this application the Parallel Control Port (PCP) mode is used.  In this mode the interface can be connected directly to the data bus on a standard eight bit microprocessor.

The ISDN 2B+D data is transferred over a TDM interface that can be configured for several operating modes.  The mode of operation chosen for this application is IDL2 master, short frame master mode, with eight bit data.  Figure 3 shows how the data from the two B channels and the D channel is transferred across the IDL2 interface when configured for this mode.

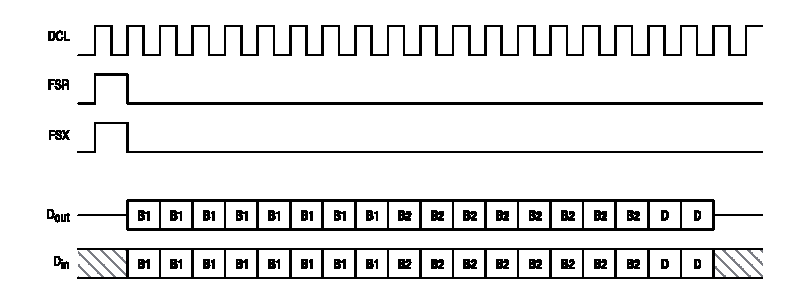

Figure 3: IDL2 Timing

Figure 3 IDL2 Timing

Figure Courtesy Motorola

Interface Architecture

Figure 4 illustrates how all of this fits together.  Sitting in the middle of the interface, the Spartan device is truly the glue that pulls the whole thing together.  A common eight-bit data bus is used to connect the Spartan device to the MC145572 PCP interface, the EEPROM, and the SRAM.

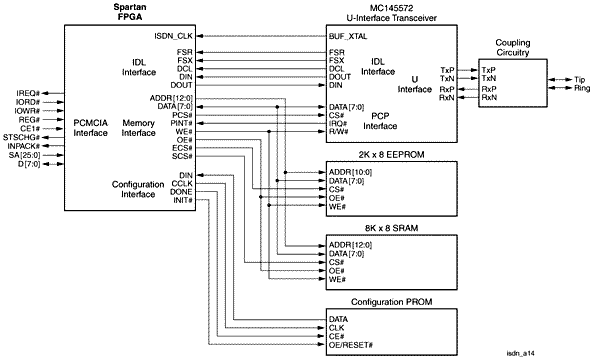

Figure 4: ISDN Modem Detailed System Block Diagram


Figure 4 ISDN Modem Detailed System Block Diagram

Spartan Device Implementation

Figure 5 shows the architecture implemented in the Spartan device for this application.  It consists of five major functional blocks:

  • PCMCIA Interface
  • Memory Controller and Buffer Manager
  • IDL Multiplexing and Demultiplexing
  • HDLC In functions
  • HDLC Out functions

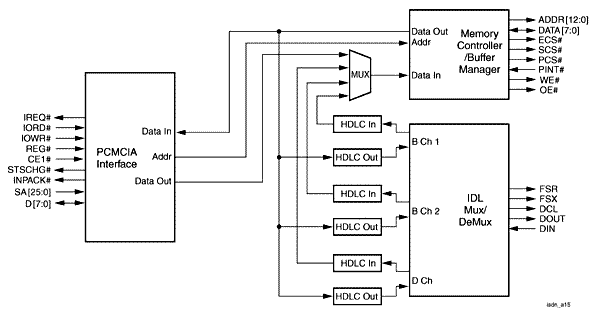

Figure 5: FPGA Logic Block Diagram


Figure 5 FPGA Logic Block Diagram

The IDL Mux/Demux block multiplexes traffic from the 2B+D channels over the IDL interface using the frame format illustrated in Figure 3.  Incoming frame data is demultiplexed into the three channels and forwarded to the HDLC In blocks.  The block is implemented as a state machine which performs these functions by asserting enable signals to the HDLC In and HDLC Out blocks at the appropriate times.

The HDLC In blocks manage the detection of Link Access Procedure D channel (LAPD) or Point to Point Protocol (PPP) frames in the incoming bit streams and formatting them for storage by the buffer manager.  Functions performed include flag detection, zero stripping, Frame Check Sequence (FCS) checking, and serial to parallel conversion.  These functions, except for the serial to parallel conversion, can be disabled on the B channels when they are used for voice traffic.  The block supports both CRC-16 and CRC-32 FCSs.

The HDLC Out blocks perform the inverse function of the HDLC In blocks.  Specifically they perform parallel to serial conversion, FCS generation, bit stuffing, and flag insertion.  Like the HDLC In blocks, all functions except for the parallel to serial conversion can be disabled on the B channels when they are used for voice traffic.

The Memory Controller/Buffer Manager is the most complicated block in the design.  It performs three major functions:

  • Arbitrating access to the three devices that are connected to the data bus: SRAM, EEPROM and the MC145572 PCP
  • Generating device control signal timing for each of the three devices
  • Managing input and output queues for the three channels in the external SRAM

The Memory Controller portion of this block handles the first of these two functions, while the Buffer Manager portion handles queue management.

The Memory Controller allocates access to the PCP interfaces and external memory by dividing the bus bandwidth into access time slots.  The 20.480000 MHz ISDN_CLK signal is used to clock the memory controller state machine.  This state machine generates eight bus time slots, each of which is 195.3ns or 4 ISDN_CLK cycles long.  Four bus time slots are allocated for PCMCIA access to either the memory buffers or the PCP interface.  The remaining time slots are allocated for buffer manager access to each of the six data queues.  This results in available PCMCIA bandwidth of 2.56 megabytes per second and an average access time of 293ns.

The Buffer Manager maintains six queues in the external SRAM for buffering data to and from the three ISDN channels.  Each queue is statically allocated 1 KB of the available memory, with the remaining 2 KB of memory are unused.  Each queue is a simple FIFO, and PCMCIA access to the queue data is through three I/O ports, and six sets of control and status registers.

The PCMCIA interface block handles decoding and handshaking functions.  In addition, the block implements the PCMCIA Function Configuration Registers (FCRs).  These eight bit registers consist of the Configuration Option Register and the Configuration Status Register.

Spartan Device Selection

Spartan devices are available in a range of densities and packages.  The following criteria were used to select the device used in this application.


Table 1: Device Selection Criteria

I/O Pins The design requires a total of 72 I/O pins.
Voltage The design operates at 3.3V.
Density The size of the design is approximately 35K system gates, broken down as follows: 20K for the Memory Controller/Buffer Manager, 2K for each of the HDLC blocks, 1K for the IDL Mux/Demux, and 2K for the PCMCIA interface.
Performance  The highest clock speed used in the device is 20.48 MHz, used to clock the Memory Controller and Buffer Manager state machines.  The remaining logic runs at 1/8th this rate.
Packaging The size constraints imposed on most modem designs dictates a high-density surface mount package.


Based on these criteria the device selected for this design is the XCS40XL-4PQ208C.  This device offers 40K gate density, 3.3V operation, 169 user I/O, and is packaged in a space saving PQ208 package.  The -4 speed grade is sufficient for this design's performance requirements.

Conclusion

The design that has been outlined meets both original design objectives.  The cost of the solution is well within the design target, coming in at under $15 for the interface logic.

Table 2: ISDN Modem Semiconductor Bill Of Materials

Supplier Part Number Description

Qty

Unit Cost

Motorola MC145572Internet Link ISDN U-Interface Transceiver

1

$11.00

Atmel AT28C16Internet Link 2K x 8 EEPROM

1

$2.50

various 8K x 8 SRAM

1

$2.00

Xilinx XCS40XL-4PQ208C Spartan FPGA

1

$7.40

Xilinx XC17S40XL Serial Configuration PROM

1

$1.48

Total

$24.38

Notes: Prices are based on budgetary quotes at 100K volume.
Includes semiconductor content only.


In terms of leveraging existing IP the design can take advantage of such products for key functions.  The  HDLC Controller Macro from CAST, a Xilinx AllianceCORE Partner, could be used as the starting point for implementing both the HDLC In and HDLC Out blocks, for example.

In addition this application has demonstrated how cost-effective Spartan devices can replace ASICs for implementing complex, system level interfaces.
