The Design of a Video Capture Board Using the SpartanTM Series

March 31, 1999 (Version 1.0) Application Note: XAPP172



To download a .pdf copy of this Application Note, click here.


Introduction

This application note describes a reference design for a video capture board that acts as an interface between a video source such as a camcorder, VCR, CCD camera, etc. and a PC. The board captures and digitizes frames from a video source, which it then transfers to a PC for viewing. The main electronic components consist of a video pixel decoder, DRAM and a Spartan FPGA, all chosen to achieve a low overall cost, making the board suitable for high-volume, consumer-oriented products. To this end, the ability to implement all the interface and memory control logic in a single programmable Spartan device provides crucial benefits including low cost, reduced part count, a small form factor, low power, and easy field upgrades.

Xilinx Families

Spartan

System Overview

The basic functional organization of a high-volume video capture system is shown in Figure 1. This architecture is commonly found in low-end frame-grabber products that range in price from $60 to $100. Examples of such products include Grab It from AIMS Labs,  Snappy from Play Inc. and the Dazzle Digital Video Creator from Dazzle Multimedia. There are three major functional blocks: The video pixel decoder (VPX), a frame buffer and system glue logic. The VPX digitizes the analog video source, whether it be from a camcorder, VCR or CCD camera. The result is a sequence of pixels that, once assembled into a frame, constitute one complete video picture. The frame is stored in the buffer until it can be sent to the PC. The system glue logic consists of all the logic necessary to coordinate the flow of pixels from the VPX to the buffer and, again, from the buffer to the printer ( parallel) port.

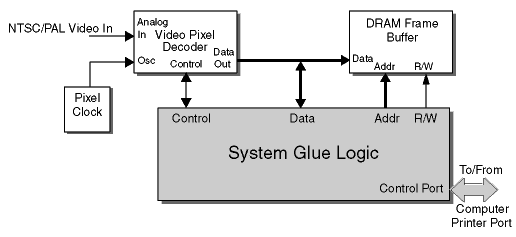

Figure 1 Video Capture System Block Diagram

Video Capture System Block Diagram

The components used to realize the three main functional blocks of the demo board were chosen for their low cost as well as their performance characteristics.  They are all 5V CMOS devices employing the TTL signal standard.  The VPX 3214 C from ITT performs the video pixel decoder function.   A 1,048,576 x 16-bit asynchronous DRAM from LG Semicom serves as the frame buffer.  A Spartan FPGA, otherwise referred to as the Spartan control unit, contains all the system glue logic. The three devices share a common 16-bit bidirectional bus managed by the Control Unit, which also presides over an independent 8-bit bus leading to the parallel port. The two analog video inputs connect directly to the VPX.

Basic Operation

The VPX samples the incoming analog video signal at a rate of 20.25 MHz, digitizes it and converts it to a stream of pixels in the YCbCr format (4:2:2). The Spartan control unit transfers the pixels from the VPX down the 16-bit bus to the frame buffer. The process by which this transfer takes place combines odd and even fields to produce non-interlaced frames suitable for display on the PC monitor. Using a "write counter" to generate addresses, a frame is written to the buffer then overwritten with a new frame in cyclical fashion.

The PC requests the acquisition of a frame through the parallel port. The control unit responds by accessing pixels from the buffer according to addresses generated by a "read counter". Then it matches the 16-bit pixels to an 8-bit bus and sends them through the parallel port to the PC’s memory.

Board Capabilities

The board has two analog video inputs permitting two composite sources (i.e., NTSC and PAL) or one component  source (i.e., S-VHS). The NTSC, PAL, SECAM and S-VHS standards are all supported. These standards are automatically identified at the inputs to the VPX. One source at a time is selected for sampling.

The output from the board is an 8-bit-wide, non-interlaced, digital video stream in the YCbCr (4:2:2) format. This output is transferred to the PC’s memory via the parallel port (EPP protocol) at 2 Mbytes/sec. The parallel port permits connection not only to desktop PCs but also notebook computers. Of the interfaces common to both machines, this port provides the highest bandwidth. Nevertheless, to support real-time video transmission, still faster interfaces, such as the PCI for desktop machines or the PCMCIA for portables should be considered.

The Video Pixel Decoder

The VPX 3214 C performs a number of functions pertaining to video acquisition, including automatic standard detection, sampling of the analog source, conversion to digital YcbCr 4:2:2 format, generation of synchronization signals and frame resizing. The internal organization of this 44-pin device is shown in Figure 2.

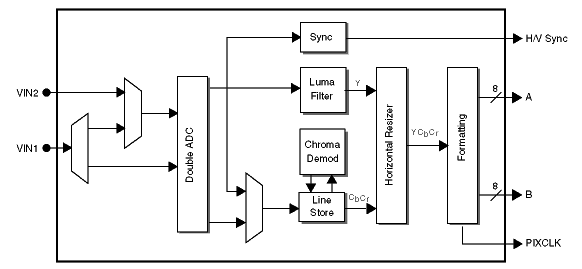

Figure 2. The VPX 3214 C Video Pixel Decoder

VPX 3214 C Video Pixel Decoder
Note: Only those features used on the demo board are shown.

A set of control registers connected to an I2C bus determines the various modes of operation. This bus consists of two lines: a clock line (SCL) and a bidirectional serial data line (SDA). Since the I2C driver connected to SDA is open-drain, a pull-up resistor is required. The control unit, in the role of master, configures the VPX 3214 C after power-up.

The four analog video inputs, labeled VIN, VIN2, VIN3, AND CIN, support a variety of standards in different combinations.  The demo board uses two of the inputs: VIN1 accepts composite (CVBS), luma (Y), and chroma signals.  VIN2 takes CVBS and Y.  In a composite video application, the board can switch between any combination of NTCS, PAL or SECAM sources at VIN1, and VIN2.  In a component video application (i.e., S-VHS), the chroma signal goes to VIN1 and the luma signal goes to VIN2.  These selections are made in internal registers that are controlled using the I2C bus.

A 20.25 MHz crystal synchronizes all operations within the VPX 3214 C including sampling of the selected analog video source.  Two 8-bit ADCs convert the samples to digital YCbCr 4:2:2 format.  For a composite video source, this process entails “color decoding” to separate the chroma and luma signals.  One 16-bit pixel is sampled every cycle whereas Cb and Cr are sampled every other sample.  Each pixel in the sampled sequence is composed of an 8-bit luma component and an 8 bit chroma component.  The latter alternates between Cr and Cb in going from one pixel to the next.  Following analog to digital conversion, there are 1056 pixels in each line of video.  A horizontal resizing feature that lowers the effective sampling rate can be used to decrease the number as low as 32 pixels line.

The number of lines in a video frame (i.e., the complete picture), varies according to the standard in use: 525 for NISC and 625 for PAL/SECAM.  Analog video sources are typically interlaced which means that the frame is decomposed into two fields, each with half the number of lines.  The video signal is transmitted as a sequence of even and odd fields.  The original picture is recreated by alternating lines from one such pair of fields.  Vertical resizing (i.e., compression) is possible by dropping lines.  On the VPX 3214 C, both – vertical and horizontal resizing are controlled using the I2C bus.

The ability to reduce the size of the video picture by changing the number of pixels both horizontally and vertically helps reduce the frame buffers capacity requirements as well as the computer interfaces’ bandwidth requirement.

The VPX 3214 C has two 8-bit output ports, labeled A and B.  The demo board uses both to transfer pixels on to a 16-bit bus. The output enable line /OE provides three-state control for A and B. In what is known as the synchronous transfer mode, the VPX drives the 20.25 MHz sampling clock (PIXCLK) on to the board for the purpose of synchronizing pixels.

A number of flag signals are available for coordinating the timing of external components on the demo board.  (The polarity of the signals listed below is programmable. For the sake of clarity, only one polarity is described for each signal.) VACT is High in the presence of valid data on ports A and B.  HREF, the horizontal reference signal, is inferred from the video source.  It is High for the fixed period during which the 1,056-pixel horizontal line is being transferred through the ports.  If the number of valid pixels equals 1,056, then the pulses on VACT and HREF are identical.  In cases where the number of valid pixels is less than 1,056 (i.e., horizontal resizing), the VACT pulse will be shorter than the HREF pulse. VACT will be Low for dropped lines (i.e., vertical resizing). VREF, the vertical reference signal, is inferred from the video source. It provides a High pulse at the beginning of each field (both odd and even). ODD/EVEN, sampled on the falling edge of VREF, is Low for even fields and High for odd fields. The signals VACT, HREF, VREF and ODD/EVEN are provided as inputs to the control unit.

The Spartan Control Unit

A Spartan FPGA is used to implement the following functions: a DRAM controller (with DMA), a parallel port interface (the EPP protocol) and an I2C state machine.  How these functions are organized internally, as well as how they connect to the VPX and the DRAM chips is shown in figure 3.  Each of the functions is now described in more detail.

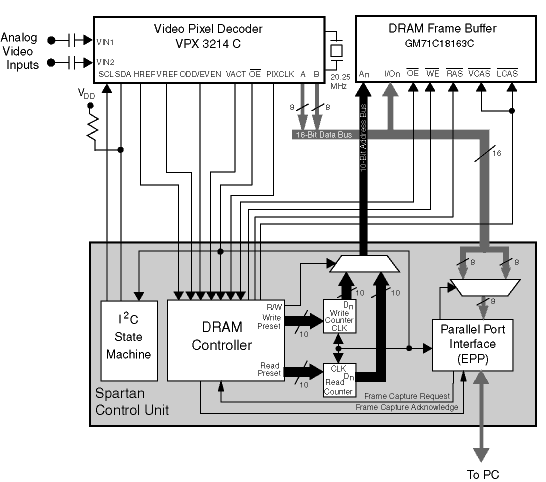

Figure 3. Detail of the Spartan Control Unit

Detail of the Spartan Control Unit


DMA Operation

Associated with the DRAM controller are two 10-bit counters, one generates addresses for writing pixels to the DRAM, the other generates addresses for reading pixels from the DRAM.  These counters make up a DMA circuit that permits sequential addressing of the DRAM at a rate of 20.25 MHz. The DRAM controller uses the Write Preset and Read Preset buses shown in Figure 3 to load start and stop addresses into the counters. These serve to delimit the range of DRAM addresses that can be accessed.  The difference between the start and stop addresses is set equal to the number of pixels in a frame.  For the VPX 3214 C, the maximum number is 1056 pixels/line by 625 lines/frame (PAL standard) or 660 K-pixels.  The addresses of the two counters are multiplexed to a 10-bit address bus leading to the An inputs on the DRAM chip.  The DRAM controller uses a R/W line to select between a write address for loading pixels from the VPX and a read address for transferring to the parallel port interface.


DRAM Controller

The DRAM controller performs two basic functions: First, it coordinates the transfer of pixels from the VPX to the DRAM.  Second, it coordinates the transfer of pixels from the DRAM to the parallel port interface (within the Spartan device).

VPX-to-DRAM Transfers

The technique of direct memory access (DMA) is used to transfer pixels from the VPX to the frame buffer. The DRAM controller uses the video synchronization signals from the VPX, specifically HREF, VREF, ODD/EVEN and VACT, to generate the strobe lines necessary for writing the pixels into the DRAM, namely /RAS, /UCAS, /LCAS, /WE, and /OE. The VPX continuously places pixels on the bus at a rate of 20.25 MHz. As soon as the VPX puts a pixel onto the 16-bit data bus, the DRAM writes it into memory.

The video data is commonly organized as a succession of alternating odd and even fields. At the time of display, video systems will interlace each pair of fields together to form a frame (i.e., a complete picture). Computer systems, on the other hand, display video in non-interlaced form.  Therefore, the odd and even fields coming from the VPX need to be digitally “interlaced” together to form frames.  The DRAM controller accomplishes this by switching an address bit outside of the write counter that discriminates between odd and even lines in the frame buffer.  If possible, the frame is stored in more-or-less the same form in which it will be displayed with each horizontal video lines occupying sequential rows of memory, always starting and ending at the same columns.  In this way, managing the address space is greatly simplified.  For example, a 1024 x 625 pixel image (with horizontal resizing) will just fit the maximum row length (no wrapping), occupying a grid of 1024 columns by 625 rows. According to the level on ODD/EVEN, the DRAM controller will switch an address line so pixels belonging to odd fields will go to odd rows in the frame grid and pixels belonging to even fields will go to even rows. In this way, video frames are continuously constructed from odd and even fields. As soon as a frame is complete, the DRAM controller proceeds to overwrite it as part of an ongoing, cyclical process. Writing pixels to the DRAM at a rate of 20.25 MHz is sufficient to refresh the DRAM.

DRAM-to-Parallel-Port Transfers

The second function of the DRAM controller is to transfer pixels from the frame buffer to the parallel port interface. As was the case for the first function, DMA is used here as well. The PC requests a video frame through the parallel port interface, which activates the “Read Buffer Request” line.  In response, the DRAM controller monitors VREF and ODD/EVEN for an indication that the entire frame has been written to the DRAM.  Then, it desserts the DRAM’s write enable (/WE) and loads the start address into the read counter, which it now selects to drive An.  Ports A and B on the VPX are put into a high impedance state as the I/On lines on the DRAM, now configured as outputs, are enabled.  The DRAM controller activates the “Read Buffer Acknowledge” line to inform the parallel port that the frame is ready for transfer to the PC, then it toggles the /RAS, /UCAS and /LCAS lines to access pixels at a rate of 1M pixel/sec. (This is sufficient for refreshing the memory).  In contrast to the write counter, which generates addresses for the VPX-to-DRAM function that skip every other row in memory, the read counter generates addresses for the DRAM-to-Parallel port function row-by-row.  The pixels are transferred from the DRAM to the 16-bit data bus.  Upon entering the Spartan device, they are matched to an 8-bit bus.  From here, the parallel port interface sends them to the PC using the EPP protocol (2MBytes/sec).

Spartan Configuration

After power-up, the configuration file for the control unit is downloaded from the PC through the parallel port to the demo boards Spartan device. For the purposes of configuration, the parallel port uses the compatibility mode, a subset of the EPP protocol, to download the configuration data.  This mode is effectively the same as the Centronics parallel interface, which transfers data in one direction from the host computer to the demo board. (During operation, the board makes use of the enhanced port features such as bidirectional data transfer). Eight lines, D0 - D7, are available for carrying data, though, since the 5V Spartan device is configured in serial fashion, only D0 is used.  The host asserts a signal called /STROBE to indicate the presence of valid data.  The peripheral responds by activating a BUSY signal, then acknowledges receipt of a byte by going LOW on /ACK. It finally indicates that it is ready to receive the next byte by releasing both BUSY and /ACK.  The interface has other lines ordinarily use to control a printer. Of these, /INITIALIZE-PRINTER, SELECT, and OUT-OF-PAPER are used for hand shaking between the parallel port and the Spartan device.

The slave-serial configuration mode is selected by tying the MODE pin on the Spartan device High.  Using this mode, configuration of the FPGA is under the control of the host computer.  A Low pulse on the /PROGRAM pin clears the device. As soon as the FPGA is ready to receive configuration data, it drives the /INIT pin High.  Then, the configuration data is serially written to the DIN pin, synchronized to a clock signal applied to the CCLK pin. When the device is full, its DONE pin goes High, signifying that configuration is finished.

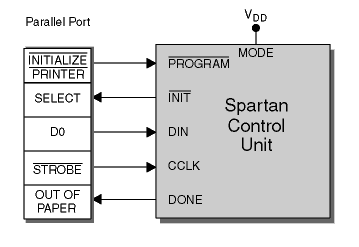

The connections between the parallel port and the Spartan configuration pins are shown in Figure 4. The parallel port signal /INITIALIZE-PRINTER strobes the Spartan device’s /PROGRAM pin to initiate configuration. After the Spartan device’s /INIT line pulls SELECT High, D0 on the parallel port carries the configuration data to DIN on the Spartan device.  /STROBE provides a clock signal for CCLK.  Since the PC sends a continuous stretch of bits through the parallel port with uniform timing, the BUSY and /ACK signals are unnecessary. At the end of configuration, the DONE pin drives the OUT OF PAPER line High.

Figure 4. Connections between the Parallel Port and the Spartan Device

Parallel Port and the Spartan Device
