DSL System Glue

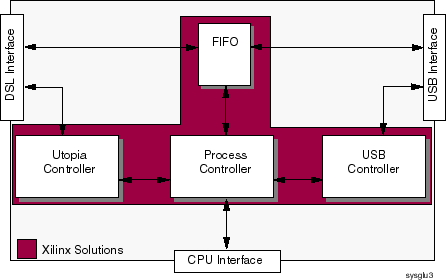

DSL System Glue Block Diagram

(click in the burgundy area for a Xilinx solution or click on the link below)

DSL Systems Glue

DSL Application Note


Functions

The Spartan FPGA implements transmit and receive FIFOs, associated state machines for the Utopia interface, a process controller interface with DMA support, and a USB controller interface. The Utopia state machines interact with the USB interface by way of 2x9 FIFOs. The microcontroller interface includes logic for latching and decoding the address, along with a command register and a command response structure. The USB interfaces arbitrates between the three functions that need to transfer data across the USB bus: ATM read, ATM write, and microcontroller read/write operations.

Advantages

The Spartan device is perfect for this application because of its architecture, programmability, and low cost. The small FIFOs are efficiently built from the SelectRAM memory. The largest function will be the USB controller interface, requiring about 4,000 gates. Although the entire USB control function could be implemented using a Core solution, a dedicated USB controller is more cost-effective in this application. A Spartan XCS10XL has sufficient density, I/O count, and performance for the remaining logic. The Spartan FPGA can be programmed over the USB interface, allowing the logic to be updated via a new device driver and eliminating the need for a configuration PROM. The total FPGA solution is less than $4, and the total semiconductor cost for the modem is only 10% more than the cost of the DSL chip set.

More Information

DSL Market Overview DSL Glossary DSL Modems
DSL Documentation Back to Xilinx at Work
