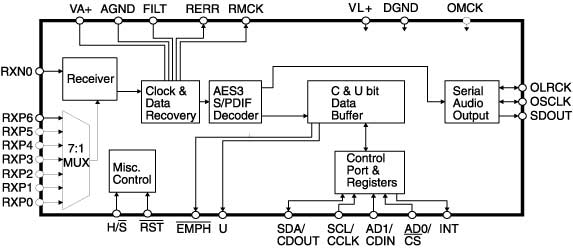

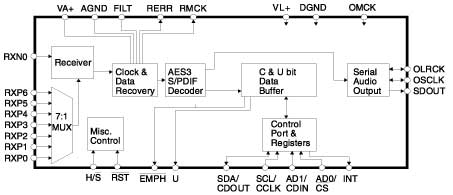

The CS8415A is a monolithic, CMOS device which receives and decodes one of 7 channels of audio data according to the IEC60958, S/PDIF, EIAJ CP1201, or AES3 standard. The CS8415A has a serial, digital audio, output port and comprehensive control through a 4-wire micro-controller port. Channel Status and User data are assembled in block-sized buffers, making read access easy. A low jitter, clock recovery mechanism yields a very clean recovered clock from the incoming AES3 stream. Standalone operation allows systems with no micro-controller to operate the CS8415A with dedicated output pins for Channel Status data. Target applications include A/V receivers, CD-R, DVD receivers, multimedia speakers, digital mixing consoles, effects processors, set-top boxes, computer, and automotive audio systems.
|
|
- Complete EIAJ CP1201, IEC-60958, AES3, S/PDIF compatible receiver
- 7:1 S/PDIF input MUX
- Flexible 3-wire, serial, digital output port
- 8 kHz to 96 kHz sample frequency range
- Low jitter, clock recovery
- Pin and micro-controller read access to Channel Status and User data
- Micro-controller and standalone modes
- Differential cable receiver
- On-chip Channel Status and User data buffer memories
- Auto-detection of compressed audio input streams
- Decodes CD Q sub-code
- OMCK system clock mode
- 5V analog supply (VA)
- 3 to 5V digital interface supply (VL)
- Package: 28-pin SOIC/TSSOP
|
