High-Performance, Low-Power, System-on-Chip with 10Base-T Ethernet
|
|
|
|

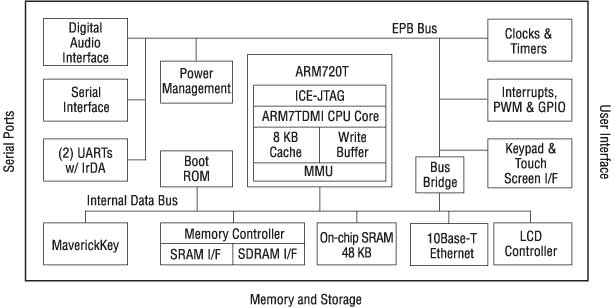

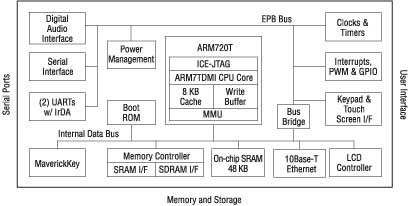

The high-performance CS89712 is designed for ultra-low power communication applications such as VoIP telephones, industrial control, data acquisition, special purpose servers, and RF-to-Ethernet bridges. The core-logic functionality of the device is built around an ARM720T processor with 8 Kbytes of four-way, set-associative unified cache, and a write buffer. Incorporated into the ARM720T is an enhanced memory management unit (MMU) which allows for support of sophisticated operating systems like embedded Linux. The CS89712 Ethernet port includes on-chip RAM and 10Base-T transmit and receive filters.
|
|
Product Features
|
|
- ARM720T (ARM7TDMI) processor
- 8 Kbytes of four-way, set-associative cache
- MMU with 64-entry TLB
- Write buffer
- Thumb code support enabled
- Dynamically clocked at 18, 36, 49, or 74 MHz
- 10 Mbit Ethernet controller with integrated PHY
- Comprehensive suite of software drivers
- On-chip transmit and receive RAM buffers
- 10Base-T port with analog filters provides automatic polarity detection and correction
- Programmable transmit features
- Automatic re-transmission on collision
- Automatic padding and CRC generation
- Programmable receive features
- Early interrupts for frame pre-processing
- Automatic rejection of erroneous packets
- Package: 256-ball PBGA
|
|
|
