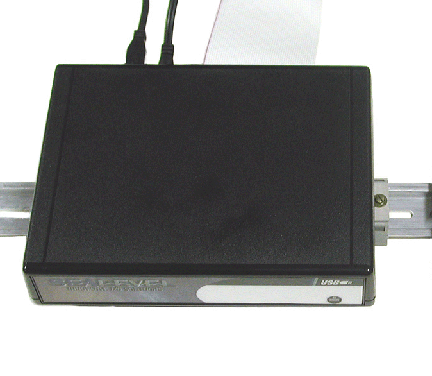

The SeaPORT PIO-96 provides 96 channels of buffered drive digital I/O. Connect 1, 2, 3 or 4 industry standard relay racks for PC based control and automation of equipment including sensors, switches, security control systems, and other industrial automation systems. 10K pull up resistors are included. Optional values are available.
The SeaPORT PIO-96 contain 12 groups of eight-bit I/O ports, configurable as inputs or outputs to suit the automation task. The mode of each of the ports is user selectable as inputs or outputs by simply writing a control word to the port register. This gives the user the ability to customize the combination of inputs and outputs as needed.
A special factory configured interrupt feature allows the user to request conditional I/O combinations for interrupt generation. When the I/O combination occurs, a hardware interrupt is triggered.

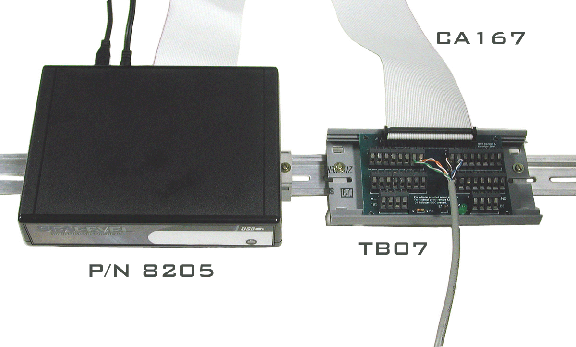

Need to simulate a relay rack connection? Order Part# TA01 to debug your control application and simplify installation.
Our SeaI/O Family of Windows 98/ME/2000/XP Software drivers is included along with sample applications and utilities for rapid application development. |
|
