Form Tags (CGI Programming with Perl)

Form Tag	Description
<FORM ACTION="/cgi/register.cgi" METHOD="POST">	Start the form
<INPUT TYPE="text" NAME="name" VALUE="value" SIZE="size">	Text field
<INPUT TYPE="password" NAME="name" VALUE="value" SIZE="size">	Password field
<INPUT TYPE="hidden" NAME="name" VALUE="value" >	Hidden field
<INPUT TYPE="checkbox" NAME="name" VALUE="value" >	Checkbox
<INPUT TYPE="radio" NAME="name" VALUE="value" >	Radio button
<SELECT NAME="name" SIZE=1> <OPTION SELECTED>One</OPTION> <OPTION>Two</OPTION> : </SELECT>	Menu (drop-down)
<SELECT NAME="name" SIZE=n MULTIPLE> <OPTION SELECTED>One</OPTION> <OPTION>Two</OPTION> : </SELECT>	Select box
<TEXTAREA ROWS=yy COLS=xx NAME="name"> : </TEXTAREA>	Multiline text field
<INPUT TYPE="submit" NAME="name" VALUE="value" >	Submit button
<INPUT TYPE="image" SRC="/image.gif" NAME="name" VALUE="value">	Image button
<INPUT TYPE="reset" VALUE="Message!">	Reset button
</FORM>	End the form

4.2.3. The <INPUT> Tag

The <INPUT> tag generates a wide array of form widgets. They are differentiated by the TYPE attribute. Each <INPUT> tag has the same general format:

<INPUT TYPE="text" NAME="element_name" VALUE="Default value">

Like <BR>, this tag has no closing tag. The basic attributes that all input types share are as follows:

TYPE: TYPE determines the type of the input widget to display. A presentation of each type follows this section.
NAME

Let's look at each of the input types.

4.2.3.1. Text fields

One of the most basic uses of the <INPUT> tag is to generate a text fields where users may enter a line of data (see Figure 4-2). Text fields are the default input type; if you omit the TYPE attribute, you will get a text field. The HTML for a text field looks like this:

<INPUT TYPE="text" NAME="quantity" VALUE="1" SIZE="3" MAXLENGTH="3">

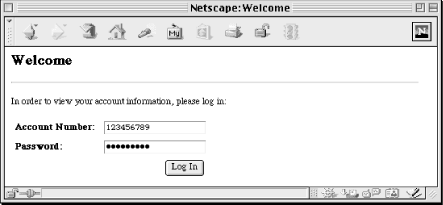

Figure 4-2. Text and password fields

Here are the attributes that apply to text fields:

VALUE

4.2.3.2. Password fields

A password field is similar to a text field, except that instead of displaying the true value of the field, the browser represents each character with an asterisk or bullet (refer back to Figure 4-2):

<INPUT TYPE="password" NAME="set_password" VALUE="old_password"
  SIZE="8" MAXLENGTH="8">

This field does not provide any true security; it simply provides basic protection against someone looking over the shoulder of the user. The value is not encrypted when it is transferred to the web server, which means that passwords are displayed as part of the query string for GET requests.

All the attributes that apply to text fields also apply to password fields.

4.2.3.3. Hidden fields

Hidden fields are not visible to the user. They are generally used only with forms which are themselves generated by a CGI script and are useful for passing information between a series of forms:

<INPUT TYPE="hidden" NAME="username" VALUE="msmith">

Like password fields, hidden fields provide no security. Users can view the name and value of hidden fields by viewing the HTML source in their browsers.

We'll discuss hidden fields in much more detail in our discussion of maintaining state in Chapter 11, "Maintaining State".

Hidden fields only use NAME and VALUE attributes.

4.2.3.4. Checkboxes

Checkboxes are useful when users simply need to indicate whether they desire an option. See Figure 4-3.

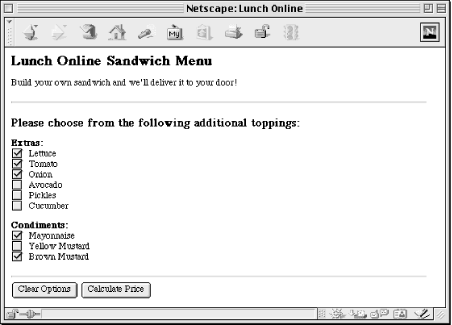

Figure 4-3. Checkboxes

The user can toggle between two states on a checkbox: checked or unchecked. The tag looks like this:

<INPUT TYPE="checkbox" NAME="toppings" VALUE="lettuce" CHECKED>

In this example, if the user selects the checkbox, then "toppings" returns a value of "lettuce". If the checkbox is not selected, neither the name nor the value is returned for the checkbox.

It is possible to have multiple checkboxes use the same name. In fact, this is not uncommon. The most typical situation in which you might do this is if you have a dynamic list of related options and the user could choose a similar action for all of them. For example, you may wish to list multiple options this way:

<INPUT TYPE="checkbox" NAME="lettuce"> Lettuce<BR>
<INPUT TYPE="checkbox" NAME="tomato"> Tomato<BR>
<INPUT TYPE="checkbox" NAME="onion"> Onion<BR>

If, however, the CGI script does not need to know the name of each of the options in order to perform its task, you may wish to do this instead:

<INPUT TYPE="checkbox" NAME="toppings" VALUE="lettuce"> Lettuce<BR>
<INPUT TYPE="checkbox" NAME="toppings" VALUE="tomato"> Tomato<BR>
<INPUT TYPE="checkbox" NAME="toppings" VALUE="onion"> Onion<BR>

If someone selects "lettuce" and "tomato" but not "onion", then the browser will encode this as toppings=lettuce&toppings=tomato. The CGI script can process these multiple toppings, and you may not need to update the CGI script if you later add items to the list. Attributes for checkboxes include:

VALUE: The VALUE attribute is the value included in the request if the checkbox is checked. If a VALUE attribute is not specified, the checkbox will return "ON" as its value. If the checkbox is not checked, then neither its name nor value will be sent.
CHECKED

4.2.3.5. Radio buttons

Radio buttons are very similar to checkboxes except that any group of radio buttons that share the same name are exclusive: only one of them may be selected. See Figure 4-4.

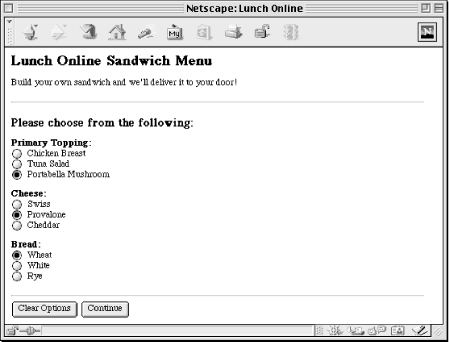

Figure 4-4. Radio buttons

The tag is used just like a checkbox:

<INPUT TYPE="radio" NAME="bread" VALUE="wheat" CHECKED> Wheat<BR>
<INPUT TYPE="radio" NAME="bread" VALUE="white"> White<BR>
<INPUT TYPE="radio" NAME="bread" VALUE="rye"> Rye<BR>

In this example, "wheat" is selected by default. Selecting "white" or "rye" will cause "wheat" to be unselected.

Although you may omit the VALUE attribute with checkboxes, doing so with radio buttons is meaningless since the CGI script will not be able to differentiate between different radio buttons if they all return "ON".

Using the CHECKED attribute with multiple radio buttons with the same name is not valid. Browsers will generally render both as selected, but they will be unselected as soon as the user selects a different option and the user will be unable to return the form to this initial state (unless it has a reset button of course).

Radio buttons use the same attributes as checkboxes.

4.2.3.6. Submit buttons

A submit button does just what the name implies. It submits the contents of the form (see Figure 4-5). When the user clicks on a submit button, the browser runs any associated JavaScript onSubmit handler, formats an HTTP request according to the form method and form encoding type, then sends this request to the URL specified by the form action. The result is then displayed as a new web page.

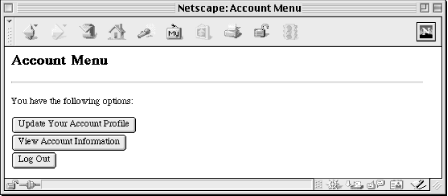

Figure 4-5. Submit buttons

The HTML for a submit button looks like this:

<INPUT TYPE="submit" NAME="submit_button" VALUE="Submit the Form">

Virtually all forms have a submit button, and you can have multiple submit buttons on one form:

<INPUT TYPE="submit" NAME="option" VALUE="Option 1">
<INPUT TYPE="submit" NAME="option" VALUE="Option 2">

Only the name and value of the submit button clicked is included in the form submission. Here are the attributes it supports:

VALUE

4.2.3.7. Reset buttons

A reset button allows users to reset the value of all the fields in a form to their default values. From the user's perspective, it generally accomplishes the same thing as reloading the form but is much faster and more convenient. Because the browser accomplishes this event without consulting the web server, CGI scripts never respond to it. The HTML tag looks like this:

<INPUT TYPE="reset" VALUE="Reset the form fields">

You may have multiple reset buttons on the same form, although this would almost certainly be redundant.

NAME: You may specify a NAME for reset buttons, but neither the name nor the value is ever passed to a CGI script. Thus, the name is only useful to JavaScript code.
VALUE: The VALUE attribute specifies the text label that should appear on the button.
onClick: Like submit buttons, reset buttons may have an onClick attribute that specifies the JavaScript code to execute if a user clicks on the button; returning false from this code will cancel the reset operation.

4.2.3.8. Image buttons

You can also have images as buttons. Image buttons function as submit buttons but give you much more flexibility over how the button looks. Keep in mind that users are generally used to having buttons displayed a particular way by the browser and operating system, and a button in a different format may be confusing to a novice. The HTML for an image button tag looks like this:

<INPUT TYPE="image" SRC="/icons/button.gif" NAME="result" VALUE="text only">

Graphical and text-only browsers treat this element very differently. A text-only browser, such as Lynx, sends the name and value together like most other form elements:

result=text+only

However, a graphical browser, like Netscape and Internet Explorer, send the coordinates where the user clicked on the image in addition to the name of the button. The value is not sent. These coordinates are measured in pixels from the upper-left corner of the image (see Figure 4-6).

Figure 4-6. Image button coordinates

In this example, a graphical browser would submit:

action.x=50&action.y=20

Here are the attributes for image buttons:

VALUE

4.2.3.9. Plain buttons

The last type of button is just that -- a button; it has no special function. To avoid confusing this button with the other button types, we will refer to it as a plain button. A plain button tag looks like a submit or reset button:

<INPUT TYPE="button" VALUE="Click for a greeting..."
  onClick="alert( 'Hello!' );">

The name and value of a plain button is never passed to a CGI script. Because a plain button has no special action, it is meaningless without an onClick attribute:

NAME: The NAME attribute is never sent as part of a request, so it is only useful to JavaScript code.
VALUE: The VALUE attribute specifies the name of the button.
onClick: The onClick attribute specifies the code to run when the button is clicked. The code's return value has no effect because plain buttons do not cause other behavior.

4.2.4. The <SELECT> Tag

The <SELECT> tag is used to create a list for users to choose from. It can create two different elements that look quite different but have similar function: a scrolling box or a menu (also commonly referred to as a drop-down). Both elements are displayed in Figure 4-7. Unlike the <INPUT> elements, <SELECT> tags have an opening as well as a closing tag.

Here is an example of a menu:

Choose a method of payment:
<SELECT NAME="card" SIZE=1>
  <OPTION SELECTED>American Express</OPTION>
  <OPTION>Discover</OPTION>
  <OPTION>Master Card</OPTION>
  <OPTION>Visa</OPTION>
</SELECT>

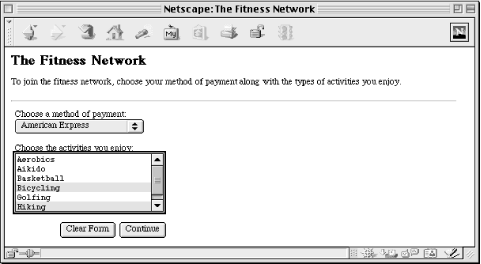

Figure 4-7. Two forms of select lists: a menu and a scrolling box

Here is an example of a scrolling box:

Choose the activities you enjoy:
<SELECT NAME="activity" SIZE=4 MULTIPLE>
  <OPTION>Aerobics</OPTION>
  <OPTION>Aikido</OPTION>
  <OPTION>Basketball</OPTION>
  <OPTION>Bicycling</OPTION>
  <OPTION>Golfing</OPTION>
  <OPTION>Hiking</OPTION>
  ...
</SELECT>

Scrolling boxes may optionally allow the user to select multiple entries. Multiple options are encoded as separate name-value pairs, as if they had been entered by multiple form elements. For example, if someone selects Aikido, Bicycling, and Hiking, the browser will encode it as activity=Aikido&activity=Bicycling& activity=Hiking.

Attributes for the <SELECT> tag are:

SIZE

4.2.4.1. The <OPTION> tag

The <SELECT> tag does not have a value attribute. Each of its possible values must have an <OPTION> tag around it.

You may override the value used by a particular option by specifying a VALUE attribute like this:

<OPTION VALUE="AMEX" >American Express</OPTION>

Options have two optional attributes:

SELECTED

Table 4-1. HTML Form Tags
