To enhance CPLD designer productivity, Xilinx
offers two FREE, leading edge, Web enabled software products: |
![Learn more about WebFITTER](../rp0000a/rp00a28.jpg) |
Xilinx WebFITTER is a FREE on-line design
and evaluation tool. This industry-first, interactive environment gives
you the ability to target any Xilinx CPLD device, whether it's our high
speed, low cost XC9500 family or our ultra-low power CoolRunner Series.
You obtain all of the necessary information: resource and timing reports,
HDL timing and programming files as well as instant pricing, all within
minutes! |
Xilinx also offers a full suite of EDA design,
fitting, and programming tools for the desktop. WebPACK is a collection
of FREE downloadable modules that provides you the best quality of results
and flexibility for either the XC9500 Series or CoolRunner Series of Xilinx
CPLDs. |
![Learn more about WebPACK](../rp0000a/rp00a29.gif) |
Whether your design flow includes EDA tools
like Synopsys, Synplicity, or Exemplar, or you need a complete design environment
that includes ABEL and HDL synthesis, fitting technology, and programming
software, WebPACK gives you the most flexibility. Because WebPACK is offered
in small, single file modules that you install from the Web, you can quickly
and reliably run the software within minutes. |
Xilinx CPLD WebFITTER
|
|
Xilinx CPLD WebFITTER has broken new ground in evaluating
on-line silicon solution. By simply selecting the design file and clicking
the ‘GO’ button, you are moments away from the industry's best CPLD solution.
Whether it's performance, cost, or ease-of-use, the WebFITTER has it all. |
WebFITTER Features
-
Supports all Xilinx CPLD families
-
XC9500/XL/XV high speed and low cost series
-
Xilinx CoolRunner XPLA/XPLA2/XPLA3 ultra-low power series.
-
Accepts the following design formats
-
VHDL, Verilog, ABEL, EDIF, XNF
-
Competitive conversions for Altera (TDF & TDO) and Vantis
(NSR) formats
|

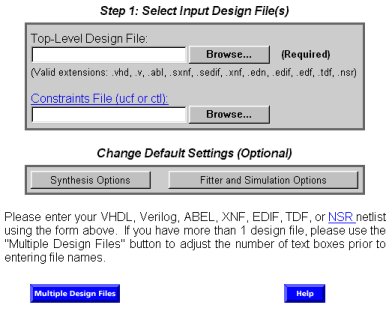

To use WebFITTER,
you follow the three steps illustrated below. |

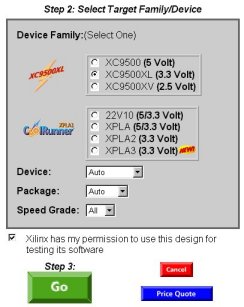

Step 2: You select your
targeted device by density, package, speed, voltage, or by automatic device
selection.
|
Step
3: Submit your design by clicking .
When your design is finished, you receive an e-mail containing a specific
URL that links you to the results! |
|
|
![Step2: Select Target Family/Device](../rp0000a/rp00a2c.jpg) |
|
WebFITTER provides
-
Links to fitting, timing, and log files
-
Targeted device datasheets
-
On-line XC9500 and CoolRunner Series price quotes
-
Simulation and device programming files
-
On-line tutorials
-
Complete on-line Help
|
|
Take me to the WebFITTER
page
|
Xilinx CPLD WebPACK
|
|
The Xilinx CPLD WebPACK contains FREE downloadable software
modules for both the XC9500 and CoolRunner series CPLDs. Each modules provides
a simple and intuitive design environment for your target Xilinx CPLD family.
The CPLD WebPACK is a suite of EDA design tools that you can download and
use individually, or install together for an integrated design environment
for the XC9500 Series, CoolRunner Series, or both. |
The downloadable
software modules include the following:
|
![HDL - ABEL Synthesis Tools](../rp00001/rp001d6.gif) |
For designers that do not currently have EDA design entry
tools, Xilinx is pleased to offer the HDL - ABEL Synthesis Tools
module; a complete design entry system that includes Xilinx Synthesis Technology
(XST) for VHDL and Verilog languages as well as the latest version of ABEL
v7.2 synthesis engines. |
After you download and install this module, the Xilinx Project
Navigator will detect if any other WebPACK modules are installed. Once
installed, WebPACK modules will provide complete design implementation
control from within a single project window.

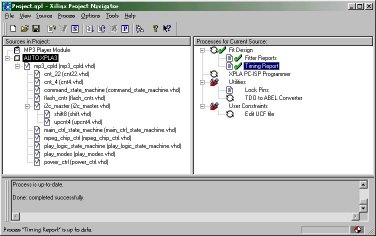

![Project Navigator Interface for CoolRunner](../rp0000a/rp00a2d.jpg) |
When you use XST (Xilinx Synthesis Technology) coupled
with the industry's most widely used project navigation system and the
latest version of ABEL (v7.2), you have the most up-to-date integrated,
PC-based, CPLD design environment. |
The Project Navigator can compile ABEL, VHDL, or Verilog
source files. |

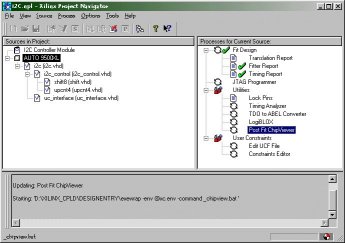

![Project Navigator for 9500 Series CPLD](../rp0000a/rp00a2e.jpg) |

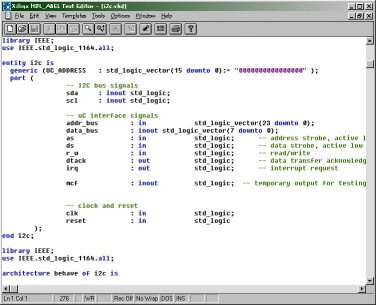

![HDL-ABEL Text Editor](../rp0000a/rp00a2f.jpg) |
You can simulate ABEL vectors and
link HDL test benches to third party HDL simulation tools, like Model Technology's
ModelSim. Once compiled, you can seamlessly process the netlist
through the Xilinx CPLD implementation tools. The implementation tools
will create the necessary JEDEC file, and the Project Navigator will invoke
the JTAG Programmer to program the device and perform JTAG ‘INTEST’ verification
using the same ABEL vectors from your design. |
|
![Device Fitter Tools](../rp00001/rp001d7.gif) |
The Device Fitter Tools section consists of two downloadable
modules: the XC9500 Fitter Tools and the CoolRunner Fitter Tools. Either
or both of these modules can be installed into the WebPACK design environment. |
If you currently own a design entry tool such as a third
party synthesis or schematic capture package, the XC9500 Device Fitter
Tools module provides all the device fitting and verification tools you
need to fit your design into any of the Xilinx XC9500 Series CPLDs.The
XC9500 Device Fitter Tools module is identical to the Alliance Series v2.1i
software currently available from Xilinx, except that it is specific to
the XC9500 CPLD families. This FREE downloadable module will accept either
EDIF or XNF netlists and provide you with a JEDEC programming file and
timing simulation netlist.
Constraints Editor Interface
![Constraints Editor Interface](../rp0000a/rp00a30.gif) |
LogiBLOX Module Selector Interface
![LogiBLOX Module Selector Interface](../rp0000a/rp00a31.jpg) |
|
|
Included Features
-
Push-button implementation flows
-
Timing driven fitting technology
-
Fitting and timing reports
-
Internet enabled on-line Help
-
LogiBLOX module synthesis
-
Xilinx Constraints Editor
-
Interactive Timing Analyzer
|
Timing Report
![HDL - ABEL Report Viewer](../rp0000a/rp00a32.gif) |
|
|

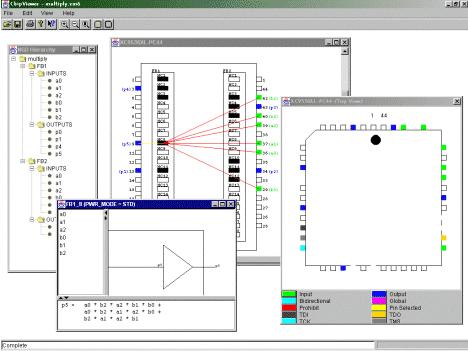

CPLD ChipViewer
![CPLD ChipViewer Interface](../rp0000a/rp00a33.gif) |
The CPLD ChipViewer (a JavaTM
utility) graphically represents pin constraints and assignments. You can
also use this tool to graphically view a design implementation from the
chip boundary to the individual macrocell equations. |
|
![Device Programming Tools](../rp00001/rp001d8.gif) |
The Device Programming Tools section contains two specific
software programming modules:
|

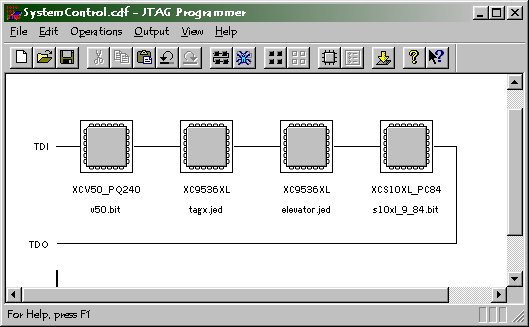

The JTAG Programmer software contains all the software
you need to perform IEEE 1149.1 JTAG operations for the Xilinx XC9500 series
CPLDs, Xilinx FPGAs, and Xilinx PROM devices that support JTAG configuration.
You can run JTAG Programmer as a stand-alone programming tool or invoke
it from within either the WebPACK Project Navigator (HDL-ABEL Synthesis
Tools module) or from within the Xilinx Design Manager (XC9500 Device Fitter
Tools module). Even if you are not a CPLD designer, the Device Programming
Tools module allows you to get the latest updates for FPGA device programming! |
|
![JTAG Programmer Interface](../rp0000a/rp00a34.jpg) |

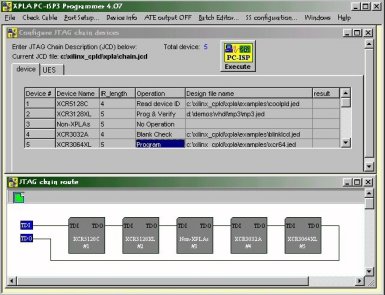

The XPLA PC-ISP3 Programmer v4.07 contains the latest
ISP device programming software for Xilinx CoolRunner CPLDs, including
the new XPLA3 family.
Included Features
-
Non-CoolRunner CPLD support
-
ATE automatic vector generation including SVF
-
Automatic programming cable detection for the following download
cables:
-
CoolRunner
-
Xilinx JTAG
-
Altera Byte-Blaster
|
![XPLA PC-ISP3 Programmer](../rp0000a/rp00a35.jpg) |
|
Take me to the WebPACK
page
|
