Xilinx Chip Scale Packaging
CSP on a Dime Photo

Xilinx has two CSP packages as part of the high performance XC9500XL 3.3V family:  The XC9536XL and XC9572XL are available in the 48 pin CSP (7 x 7 ball array), and the XC95144XL is available in the 144 pin CSP (12 x 12 ball array).  Both feature a 0.8 millimeter ball pitch.

These CSP packages offer all the benefits of an extremely small form factor in a rugged ball grid array package.  They are ideally suited for a growing number of space premium applications where minimum board space and package thickness are important.  Applications include PCMCIA cards, PC add-in cards, and portable and wireless designs.

The XC9536 member of the XC9500 5V family, is also available in the 48 pin CSP.

CSP Package Dimension and Construction Diagram Ruler with Package Diagram

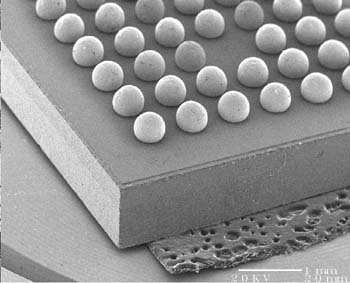

 Ball Photomicrograph

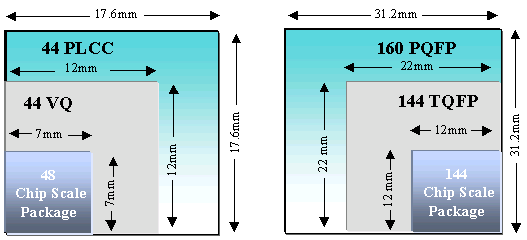

Both packages are about one third the size of traditional PLCC packages. With chip scale packages, the requirements for handling and lead coplanarity are greatly reduced because there are no fragile leads to bend.

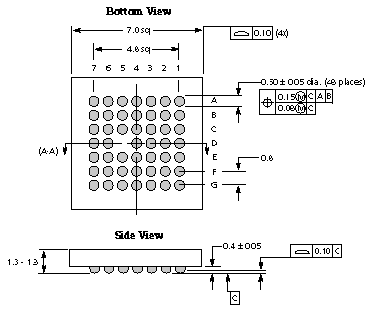

CSP Pkg. Dimensions
The die is attached to the substrate and wire bonded using industry-standard techniques.  System manufacturers using CSPs can benefit from board space savings and reduced overall costs.  It is also important to note that there will be no change in package size and ball pitch with future die shrinks.

Cross Section Diagram

These packages are also thin (1.3 to 1.8mm) and light weight (0.17 gram) which makes it ideally suited for weight conscious portable applications like cellular phones, hand held inventory, bar code reader systems and personal digital assistants.
