ISP Standards & Specifications


IEEE Std 1149.1
IEEE Std P1532
SVF
JEDEC

BSDL
Java API for Boundary Scan


IEEE Std 1149.1 Background

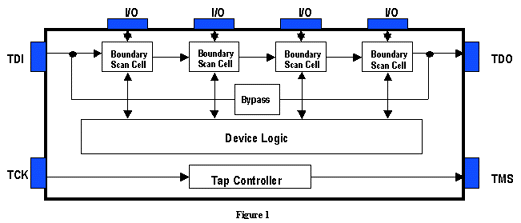

The Boundary Scan/JTAG, formally known as IEEE/ANSI standard 1149.1_1190Internet Link is a set of design rules, which facilitate the testing, device programming and debug at the chip, board and systems level. The standard came about as a result of the efforts of a Joint Test Action Group (JTAG) formed by several North American and European companies. IEEE Std 1149.1 was originally developed as an on-chip test infrastructure capable of extending the lifetime of available automatic test equipment (ATE).  A wealth of information on the standard is available from the Texas Instruments Boundary Scan PageInternet Link.  This methodology of incorporating design-for-test allows complete control and access to the boundary pins of a device without the need for a bed-of -nails or other test equipment. Each JTAG compliant device includes on the input/output pins a boundary cell (Figure 1) that under normal conditions is transparent and inactive allowing signals to pass normally. When the device is placed in the test mode, input signals can be captured for later analysis and output signals can be set to affect other devices on the board.

Boundary Scan Cell Diagram

Access is required to only 4 (or 5) pins on a device, regardless of the packaging constraints.  These pins define a Test Access Port (TAP) that enables operation of the on-chip test infrastructure that is used to ensure that:

  • All components on a printed circuit board are mounted properly and in the right place.
  • All interconnections between components are as described in the design.
So simply stated, the IEEE Std 1449.1 defines a serial protocol that requires 4 (and optionally 5) pins on each compliant device. These pins are as follows:
  • TCK - This is a clock signal that synchronizes the 1149.1 internal state machine operations.
  • TMS - This is the 1149.1 internal state machine mode select signal. This signal is sampled at the rising edge of TCK to determine the next state machine state.
  • TDI - This is the 1149.1 data input pin. When the internal state machine is in the correct state, this signal is sampled at the rising edge of TCK and shifted into the device's test or programming logic.
  • TDO - This is the 1149.1 data output pin. When the internal state machine is in the correct state, this signal represents the data shifted out of the device's test or programming logic. The output data is valid on the falling edge of TCK.
  • TRST (optional) - This is the 1149.1 asynchronous reset pin. When driven low, the internal state machine advances immediately to the reset state. Since the pin is optional and pins are generally high cost additions to devices, it is infrequently used. In addition, the internal state machine (as defined by the standard) has a well defined synchronous reset mechanism.
The pins of the TAP drive a 16-state controller (state machine). The state machine transitions between states according to the value of the TMS signal value on the rising edge of TCK. The state machine is illustrated in the diagram below.

The `0' and `1' along the transition arcs represents the state of the TMS signal at the rising edge of TCK.

The 1149.1 standard defines that TDI is valid and shifted in (and TDO valid and shifted out) only in the Shift-DR or Shift-IR states. The Shift-IR state selects the device instruction register between TDI and TDO.
Depending on the instruction selected different data registers are activated. When in Shift-DR, the data register appropriate for the previously entered instruction is selected between TDI and TDO. The default data register is the mandatory 1-bit bypass register.

An external file known as the BSDL (Boundary-Scan Description Language) file defines the properties and characteristics of any single device’s boundary-scan logic. These files are supplied by the IC manufacturer and are used in the generation of any algorithmic description of the operation of the IEEE 1149.1 compliant device.

Multiple boundary-scan devices are linked up serially in a daisy chain. Each device shares the same TCK and TMS. The TDO of one device links to the TDI of the next. Since all devices share the same TCK and TMS, all devices sequence through the TAP controller synchronously and concurrently. All devices are therefore in the same TAP controller state at the same time. When shifting data (in the Shift-IR or Shift-DR state) into the boundary-scan chain, all devices have registers internally linked between their TDI and TDO pins. This results in what appears to be a single shift register of a fixed length from the system TDI pin to the system TDO.

IEEE Std P1532 Background

IEEE Std. P1532 is an attempt to make sense out of the confusing array of in system configurable (ISC) PLD's.  Currently, all ISC PLD's tend to program in similar but different ways.  All are based on the IEEE Std. 1149.1 communications protocol and hardware and tent to use conformant instructions and data registers.  However, the details of the operation and algorithmic flow of each instruction/data register pair are slightly different.

This dissimilarity of techniques raises the cost of developing and supporting general software tools for the exploitation of ISC capabilities of PLD's.  In addition, those interested in developing ISC capabilities for new PLD's are left without a framework within which to work, further complicating support issues.  A further complication is that the lack of conformity makes expediting programming of multi-device PLD's nearly impossible.  This drives up the expense of performing ISC of PLD's on the manufacturing line.

In recognition of these urgent customers' needs, semiconductor manufacturers, led by Xilinx, ATE vendors, led by HP, tool developers, and end users met in 1997 to kick off an effort to develop a standard set of instructions and device behaviors that define IEEE Std 1149.1-based in system configuration.

This ongoing effort has been chaired by Neil Jacobson of Xilinx, a programmable logic device company, and vice chaired by Dave Bonnett of Asset Intertech, a boundary-scan tools company.  Ken Parker of Hewlett Packard's Manufacturing Test Division has served as the technical editor driving the crystallization of the concepts discussed in the meetings.  Ted Eaton of Intellitech, a boundary-scan tools company, serves as the Secretary.  The group features broad participation
from a wide variety of producers and consumers of ISC PLD's.  This includes not just semiconductor manufacturers, but also ATE vendors, systems designers, programmer companies, and boundary-scan tool developers.

Under the Test Technology Standards Group of IEEE TTTC's sponsorship, the IEEE Std P1532 working group maintains an e-mail reflector hosted by the IEEE and a WWW pageInternet Link to keep interested people posted of ongoing activities.  The e-mail reflector serves as a forum to discuss issues and quarterly meetings are held for face-to-face discussions.



Serial Vector Format (SVF)

Serial Vector Format (SVF) SpecificationInternet Link - The de facto standard for interchange of boundary scan based stimulus information. Note that this is not an open standard. It is currently copyrighted and controlled by Asset Intertech but freely distributed.

JEDEC

  • The JEDEC Programming FileInternet Link - more formally known as JESD3-C Standard Data Transfer Format Between Data Preparation System and Programmable Logic Device Programmer.
  • The JEDEC Chain Description FileInternet Link - more formally known as JESD32 Standard for Chain Description File. This file format is meant describe the connection of arbitrary programmable devices in a serial chain. It is somewhat confused in execution, precariously trying to balance a description of both non-1149.1 and 1149.1 types of serial chains in the same language. It also notably is unable to describe complex boundary scan chain configurations like hierarchical or multidrop types of architectures.

BSDL

Boundary Scan Description Language (BSDL) Standard 1149.lbInternet Link is used to describe the 1149.1 TAP Controller and boundary scan register on a JTAG 1149.1 boundary scan compliant device.  BSDL is also implemented as a subset of the VHDL standard.
